AC 185-260V 12Watt 1140Lm T5 LED Tubes Epistar Chip No - Isolated
Driver 900mm
Quick Detail:
- T5 900mm 12W LED Tube Lights
- Input: AC 185-260V, 50/60Hz
- Luminous Flux: 1140lm±5%
- CRI: >75
- PF: >0.95
- Lifespan: ≧40000Hrs
Description:
MingFeng LED T5 tube is used in many places like residential,
commercial and so on. These LED tube lightshave gentle and soft
light, no flickering, protect eyesight, it can replace the
traditional fluorescent light perfectly.

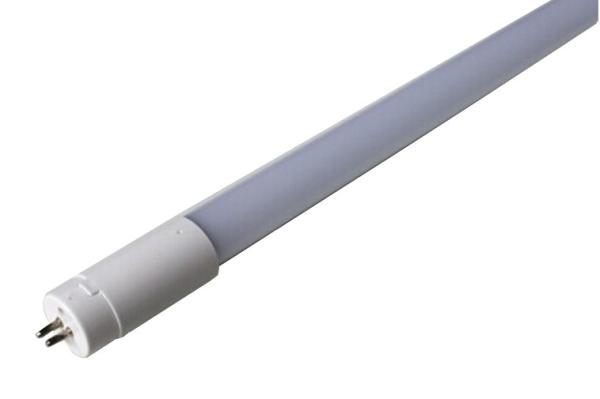

MingFeng 900mm T5 LED Tube Lights with High quality PC material of
lampshade, high transmittance. Special heat sink design, excellent
performance to ensure LED can work at low temperature. Clear and
diffused cover for optional.
Specifications:
Model No | MF-T5090S |
Input voltage | AC 185-260V 50hz/60hz |
Power(watt) | 12W |
Product size(mm) | 900*¢16mm |
Color temperature | Warm White(3000K), Pure White(4500K), Cold White(6000K) |
LED Chip | Epistar(SMD2835)72pcs |
Base Type | G13 |
Luminous Flux (lm) | 1140±10% |
CRI(Ra) | >75 |
Lifespan | ≥40000hrs |
Beam Angle | 120° |
Material | Aluminum + PC |
Operating Temperature | -20°C ~40°C |
Replacement traditional tube | 21 Watt |
IP | 20 |
THD | ≤15%(MAX) |
Certificate | CE/RoHS |
Warranty Period | 5 years |
Competitive Advantage:
1. Heat dissipation design : adopt high thermal conductivity
aluminum shell and excellent heat conducting aluminum PCB board to
improve the heat effectively, to achieve low temperature, reduce
Lumens depreciation and keep long life span about 30,000-50,000
hrs.
2. LED Chips: With super bright SMD leds, High efficiency, energy
saving, environmental protection, under the same condition, led
tubes could save 70% energy and electric cost than the traditional
tubes.High CRI: 98% visible light, CRI >75 make the color of
lighted objects much closer to natural color. And the traditional
tube has only 30% visible light.
3. Driver Design: stably driver, constant-current, PFC circuit, EMC
circuit design, the driver with CE, RoHS certification.
4. Others: Adopt aluminum frame, no tube deformation resulted from
long time hanging, more safety. With special PC cover and aluminum
shell material convenient to transport, difficult break up and
anti-vibration.

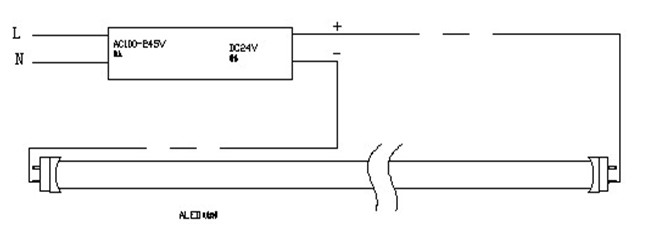

Installation Drawing :
Applications:
Emporium, superstore, school, factory, underground parking,
passageway, hospictal, official large building and so on public
place lighting.
