Dimmable T8 LED Tubes 600mm 9W 990LM Isolated Driver With TUV - CE
/ RoHS Approved
Quick Detail:
- T8 600mm 9W LED Tube Light
- Input: AC 90V-260V, 50/60Hz
- Luminous Flux: 990lm±10%
- CRI: >80
- PF: >0.95
- Lifespan: ≧40000Hrs
Description:
MingFeng LED T8 tube is used in many places like residential,
commercial and so on. These LED tube lightshave gentle and soft
light, no flickering, protect eyesight, it can replace the
traditional fluorescent light perfectly.
MingFeng 600mm 2” T8 LED Tube Light with High quality PC material
of lampshade, high transmittance. Special heat sink design,
excellent performance to ensure LED can work at low temperature.
Clear and diffused cover for optional.
Specifications:
Model No | MF-T8060 |
Input voltage | 90-260Vac, 50hz/60hz |
Power(watt) | 9W |
Product size(mm) | 600*¢26mm |
Color temperature | Warm White(3000K), Pure White(4500K), Cold White(6000K) |
LED Chip | Epistar |
Base Type | G13 |
Luminous Flux (lm) | 990±10% |
CRI(Ra) | 80 |
Lifespan | ≥40000hrs |
Beam Angle | 120° |
Material | Aluminum + PC |
Operating Temperature | -200C ~400C |
Replacement traditional tube | 14Watt |
IP | 20 |
THD | ≤15%(MAX) |
Certificate | CE/RoHS |
Warranty Period | 3 years |
Competitive Advantage:
1. Heat dissipation design : adopt high thermal conductivity
aluminum shell and excellent heat conducting aluminum PCB board to
improve the heat effectively, to achieve low temperature, reduce
Lumens depreciation and keep long life span about 30,000-50,000
hrs.
2. LED Chips: With super bright SMD leds, High efficiency, energy
saving, environmental protection, under the same condition, led
tubes could save 70% energy and electric cost than the traditional
tubes.High CRI: 98% visible light, CRI >80% make the color of lighted
objects much closer to natural color. And the traditional tube has
only 30% visible light.
3. Driver Design: stably driver, constant-current, PFC circuit, EMC
circuit design, the driver with CE, RoHS certification.
4. Others: Adopt aluminum frame, no tube deformation resulted from
long time hanging, more safety. With special PC cover and aluminum
shell material convenient to transport, difficult break up and
anti-vibration.

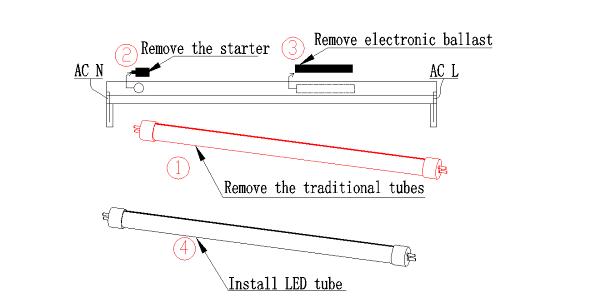

Installation Instructions:
1) Turn off the electric power firstly, and then take down the
tradition fluorescent tube
2) No starter or ballast needed, cut off or directly take off the
ballast and starter from the tradition fluorescent tube fixture.
3) Connect the wires: According bellow wiring diagrams to connect
the led tube.
4). Make sure everything is correctly, and than turn on the power,
the led tube will light.
Packing:
Applications:
Emporium, superstore, school, factory, underground parking,
passageway, hospictal, official large building and so on public
place lighting.
