Ultra Bright 150W LED Tunnel Light Fixture For Highway Lighting

Quick Detail:

1. 150W LED Modular Tunnel light

2. Input: AC 85V-265V, 50/60Hz

3. Luminous Flux:≧14850 Lm

4. CRI: 70

5. Brand chip:

6. LED Driver: Meanwell

7. IP:66

8. CE, RoHS certificated

9. Power Factor:>0.9

Description:

LED tunnel lights is the latest released product for tunnel lighting from Ming Feng in 2011.This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc. which has won good reputation all over the world.

Modular design with aluminum alloy housing and electrostatic sprayed surface ensures this light reaching good resistance to corrosion. Top light source from and quality driver from Meanwell offers a lifespan over 50,000 hours and a warranty of 5 years. With spring clamp and adjustable bracket for installation, this LED light could be easily installed and operated and suits different demands for various driveways in tunnels.

Specifications:

Competitive Advantage:

1. Modular design, the light efficient reach 90lm/W

2. The light source use 120M/W rebels, the luminaire reach 90M/W

3. Aluminum alloy housing and electrostatic sprayed surface reaches good resistance to corrosion, complying with TUV-CE, RoHS standard

4. Modular structure could be applied for power variation by module increase and decrease

5. Easy maintenance with independent chambers for light source and driver

6. Adjustable installation bracket suits different demands for all tunnel

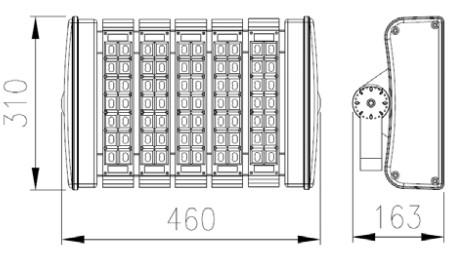

Product Dimensions(mm):

Installation Diagram Description:

1. With M10 bolts fixed to the solid position of the lamp.

2. Link the power cord

3. Loosen the retaining screw, rotate the lamp at the desired angle and tighten the screw rotation.

Applications:

This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc.
