300 Watt 155lm / W Waterproof Led Flood Light IP65 , Led Sports
Field Lighting
300Watt LED Sports Lights,155lm/W, excellent for Tennis
Court,Badminton hall,Hockey hall
300Watt LED Sports Lights Technical data :
| Item | MF-L300W |
| Input voltage | 85-265Vac 50Hz/60Hz |
| LED Power | 286W |
| System Consumption | 308W |
| Delivered Flux | 300x130lm,300x155lm |
| IP Rating | IP65 |
| Beam Angle | 25°,60°, 90° and 110° ,asymetric lens 130°x60° |
| Color temperature | 3000K / 4000K / 5700K |
| LED Chip | Lumileds/Osram |
| LED Driver | Meanwell |
| Color Rendering Index | Ra>80,70 as options |
| Power Factor | ≧0.98 |
| Color of Housing | Black in stock, color can be customzied |
| Lifespan | 1000,000hrs @ conditions, regular life span:50,000 hours, 9 years. |
| Operation Environment | Temperature:-40°C~65°C/Humidity:10%~90% |
| Storge Temperature | -40°C~50°C(@25°C) |
| Material | Anti-corrosion Die Cast Aluminum Alloy |
| Product Size(mm) | 320(L)x 433(W)x 275(H) |
| Net Weight | 8.70 Kg/PCS. 2PCS/CTN |
| Certificate | CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC |
| Warranty Period | 5 years |
300Watt LED Sports Lights Features:
1. Power range from 75W to 1200W.
2. Meanwell ELG/HLG driver with driver cover, dusty-proof and more
beatiful.
3. Osram/Lumileds 3030/5050, LEDS up to 155lm/w@80Ra, Different beam angle 25°,60°, 90° ,110° ,
130° x60° Asymmetric.

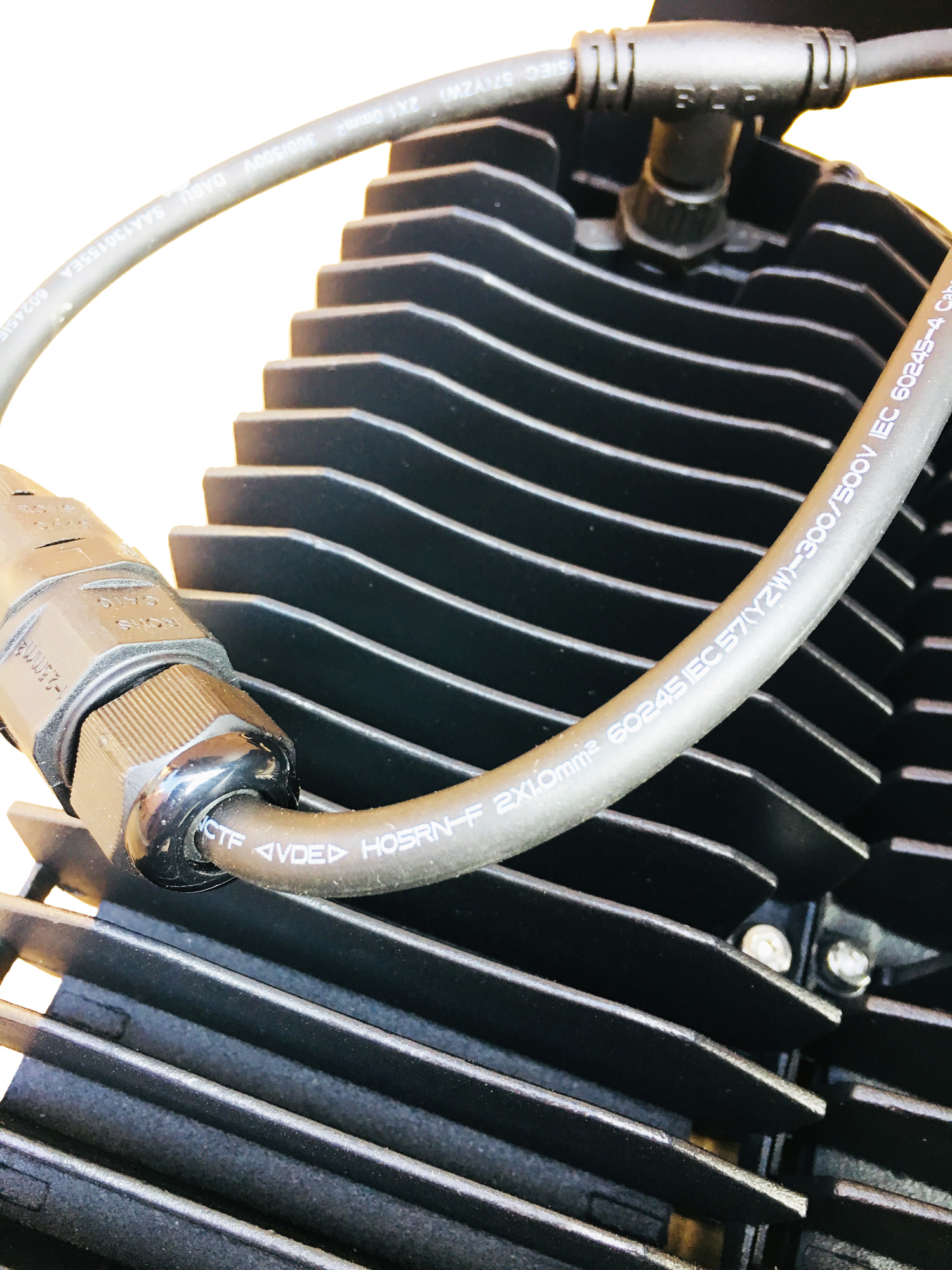

4. Die-casting Aluminumhousing with Akzonobel power painting higher
cost, complex structure with better waterproof performance and heat
radiastion.
U shape bracket with angle adjutable of 0°~180°,Each modular can be
angle adjustable as well, which can enable the lamp projects to the
illumination needed area.
5. IES files, LM-79 test report, Certificates are
available,Engineer team provide Dialux simulation service for any
lighting projects.

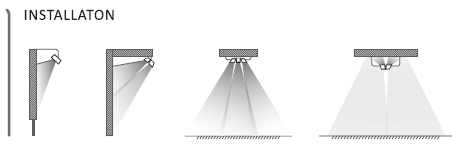

6. Mounting Options.
Competitive Advantage:
1.Lumileds and Osram LED, 130lm/w or 155lm/W, CRI up to Ra80.
Junction temperature <70°C. More stable than other LEDs.
2.TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low
THD<9%.Built-in Mean well drivers, make the lamp safer for operation
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.
4.Module angle adjustable to project aimed lighting area accurately.
5. Constant current and constant voltage design, much more reliable
than other LED floodlights.
6. Japan secondary optical DIWL lens, light transmittance up to
98%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are
available
8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
Recommended area of this modular Floodlight:
75W: 0.042 ㎡ 450W:0.21㎡
150W: 0.069㎡ 600W: 0.27㎡
230W: 0.11㎡ 900W: 0.43㎡
300W: 0.14㎡ 1200W: 0.57㎡
Application photos
