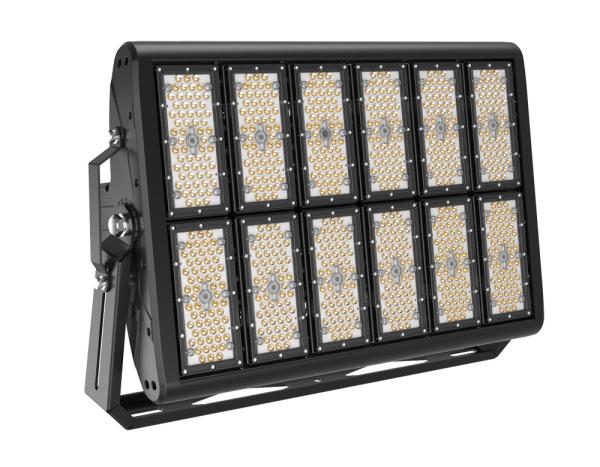

600 Watt 160lm / W IP67 LED Stadium Lights , Led Court Lights CE /
ROHS / DLC Certified
600 Watt LED Stadium Lamp with 160lm/W, IP67, CE/ROHS/DLC certified
court lights
Data sheet download by clicking MF-FL-600S
Tech Data sheet.pdf
Features:
1.Lumileds chips, 130lm/w or 160lm/W, CRI up to Ra80. Junction
temperature <75°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V,
PF>0.98, low THD<15%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years
@ 15 hours/day.
4.Adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to
92%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are
available
8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
Specifications:
Item | MF-FL-600S |
Input voltage | 85-265Vac 50Hz/60Hz |
LED Power | 588W |
System Consumption | 600W |
Delivered Flux | 600x130lm,600x160lm |
IP Rating | IP67 |
Beam Angle | 30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85° |
Color temperature | 3000K / 5000K / 6000K |
LED Chip | Lumileds |
LED Driver | Meanwell |
Color Rendering Index | Ra>80,70 as options |
Power Factor | ≧0.90 |
| Color of Housing | Black in stock, grey, white as options |
Lifespan | 1000,000hrs @ conditions, regular life span:50,000 hours, 9 years. |
Operation Environment | Temperature:-30°C~45°C/Humidity:10%~90% |
| Storge Temperature | -40°C~+50°C(@25°C) |
Material | Anti-corrosion Die Cast Aluminum Alloy |
Product Size(mm) | 763(L)x 506(W)x 148(H) |
Net Weight | 24.0 Kg/PCS. 1PCS/CTN |
Certificate | CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC |
Warranty Period | 5 years,and 10 years @ conditions |
Competitive Advantage:
1.Lumileds chips, 130lm/w or 160lm/W, CRI up to Ra80. Junction
temperature <75°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V,
PF>0.98, low THD<15%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years
@ 15 hours/day.
4.Adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to
92%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are
available
8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
600 Watt LED Stadium Lamp power range:
600 Watt LED Stadium Lamp Package:

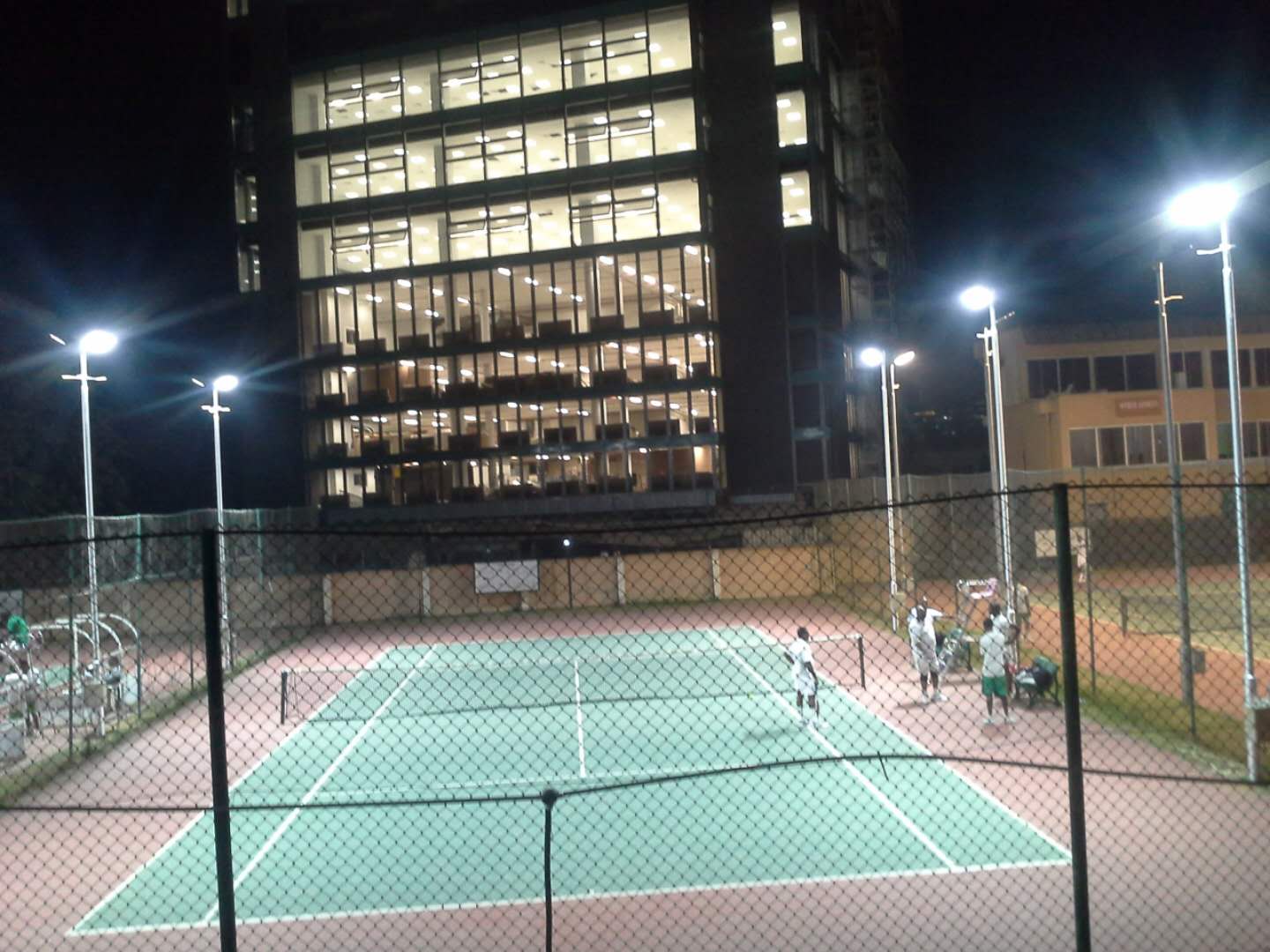

Application projects:
