80 100 120 150 Watts LED High Bay Light Power Dimmable Angle
Adjustable 60° / 90° / 105° Waterproof IP65
Specifications:
| Product Name | LED Highbay light |
| Power | 80 100 120 150 Watts(Dimmable&No-Dim) |
| LED Type | SAMSUNG |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| Beam Angle | 60°, 90°, 105° |
| CRI | >80Ra |
| System Efficiency | >90 |
| PowerSupply | LIFUD/MeanWell/Lonsng |
| Input Voltage | AC100-277V |
| Power Frequency | 50/60Hz |
| OutputVoltage | DC80-150V/DC28.8-48V |
| Output Current | 0.73/2.19A 1.09/3.28A 1.45/4.3A(Constant Currrent) |
| Power Efficiency | ≥90% |
| Power Factor | ≥0.9 |
| Total Harmonic Distortion | ＜15% |
| Application | Indoor |
| IP Rate | IP65 |
| Safety Certification | CE,RoHS,TUV,CB,ETL,DLC |
| Fixture Material | ADC12 Aluminum alloy |
| Life span | >50000Hrs(Ta=30℃ @LM70) |
| OperatingTemperature | -30 ~ 45℃ |
| Operating Humidity | 15-90%RH |
Features:
a).The material of heat sink is high thermal conductivity No.ADC12
aluminum, good for heat dissipation.
b).The unique design of housing help to speed up the heat
dissipation, futher ensuring the life of the fixture.
c).Power and Beam angle are adjustable, we can have 12 different
combinations if we get one light.
150 Watts LED High Bay Light Dimension:

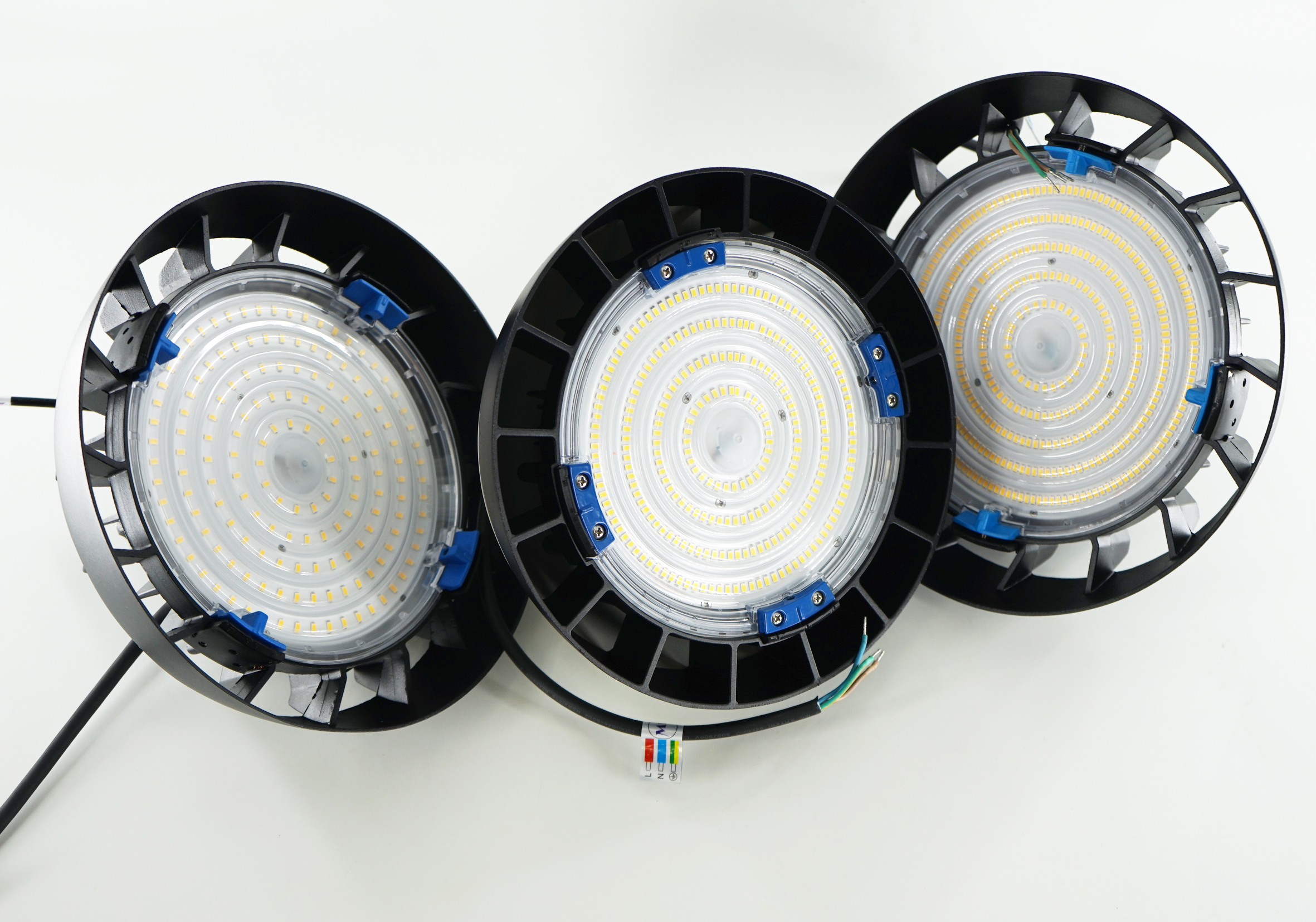

LED High Bay Light Product shows:
Conventional models & 4 level switch models & Panda design models
Conventional model:
The Beam Angle(60° / 90° / 105° ) can be adjusted to meet the
luminescence needs of different sites.
4 level switch model:
Base on the beam Angel adjustable, power ( 80W/100W/120W/150W ) is
adjustale also.
Panda model:
A dustproof enclosure is added to the regular model, which is easy
to clean for the dusty and
suitable for dusty environment.
Details:
4 level switch: Safety rope:
Beam Angle Adjustable: Custom laser trademark:
Beam Angle:
105° 90° 60°

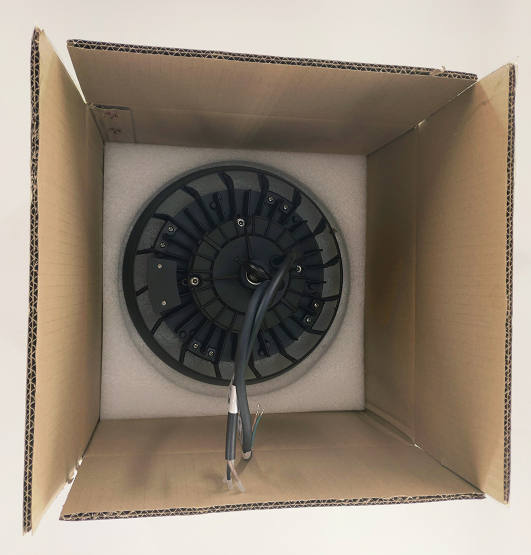

Carton Package:

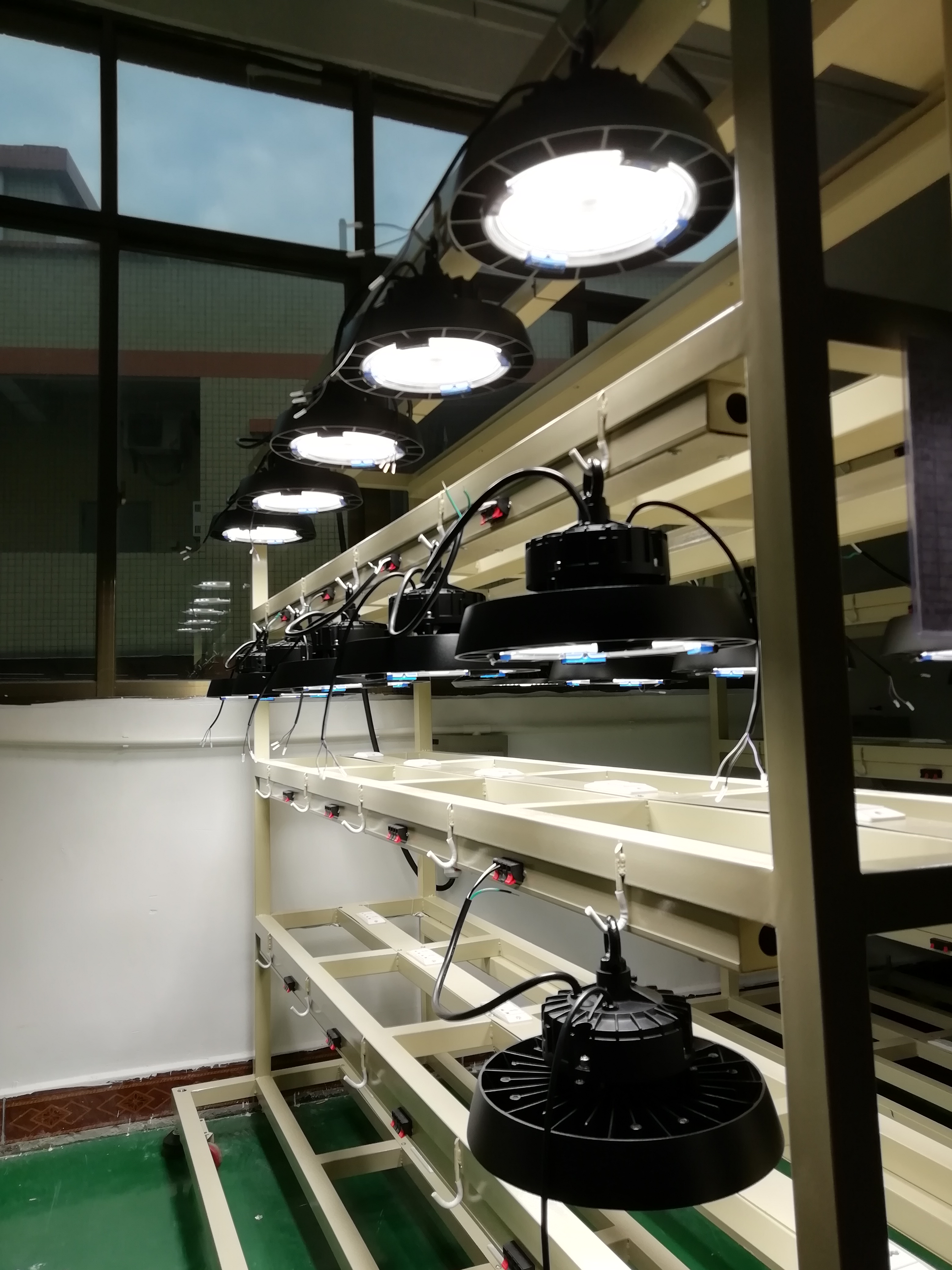

Production line:
Main Features & Applications:
1. Pateented Zoomable lens to make beam angle changeable from
60/90/105 deg by simply rotation.
Power is Zoombale also, 80w,120w,150w in one product. Use it in the
power that you
2. The housing offixture can withstand 1000Hrs salt spray test, to
be used in high corrosive environment.
3. High efficacy SAMSUNG SMD leds with latest package technology.
4. High fixture effiency up to 155LM/W .
5. Heavy-duty anti-corrosion surface treatment to enhance the antic
orrosion performance.
6. Available from 3000K, 4000K, 5700K and 6500k.
7. Versatile in mounting with wall mounted, loop hanging, steel
chain hanging.
8. For area lighting for interior and exterior applications. e.g,
airport, golf coruse, factory, plants, warehouse, exhibition halls,
Gym....
