5years Warranty LED Street Light Waterproof 30W-300W 170lm/W IP66 For Outdoor Lighting Roadway Highway
- Efficacy: Up to 170Lm/W
- LED Chip: LUMlLEDS 5050
- SDCM: <5
- Beam Angle: 60/90/T2M/T3M/T4M PC lens;
- IP Rating: IP66
- Installation: 40mm/50mm/60mm optional
- Certifications: CE ,SAA, CB, RoHS
- Warranty: 5 years
Owl-3 LED Street Light is a highly cost-effective, state-of-the-art LED street light introduced by MF Lighting. Owl-3 was meticulously crafted to offer customers a hassle-free installation experience, reduced maintenance expenses, and minimized operating costs. The Hi-rise LED Street Light showcases a contemporary streamlined design, exquisite attention to detail, and exceptional performance in various applications. It excels in energy efficiency and system reliability, setting new standards in the industry.
| Model | MF-LD-C30W MF-LD-C50W MF-LD-C80W | MF-LD-C100W | MF-LD-C150W | MF-LD-C200W MF-LD-C250W | MF-LD-C300W |
| Wattage | 30W/50W/80W | 100W | 150W | 200W/250W | 300W |
| Lumen | 13600Lm | 17000Lm | 25500Lm | 42500Lm | 51000Lm |
| LED QTY (pcs) | 48 | 72 | 96 | 128 | 192 |
| Light Source | | LUMILEDS 5050 |
| Luminous Efficacy | 150-170Lm/W |
| CCT | 2700K/3000K/4000K/5000K/5700K/6500K |
| CRI | >70(Raz80 optional) |
| Input Voltage | 100-277Vac |
| Arm Dia. | 40mm/50mm/60mm optional |
| Housing Material | Aluminum, Glass |
| Operating temperature | -40℃ to +50°℃ |
| Operating humidity | 10% to 90% RH |
ErP Technical Specification
| Item | Specification/Data |
| Efficiency In | >92% |
| Power Factor | >0.92 |
| Energy Efficiency Class (EU 2019/2015) | B |
| SDCM | <5 |
| Starting Time | <0.5s |
| Life time | L80B20@50000hours |

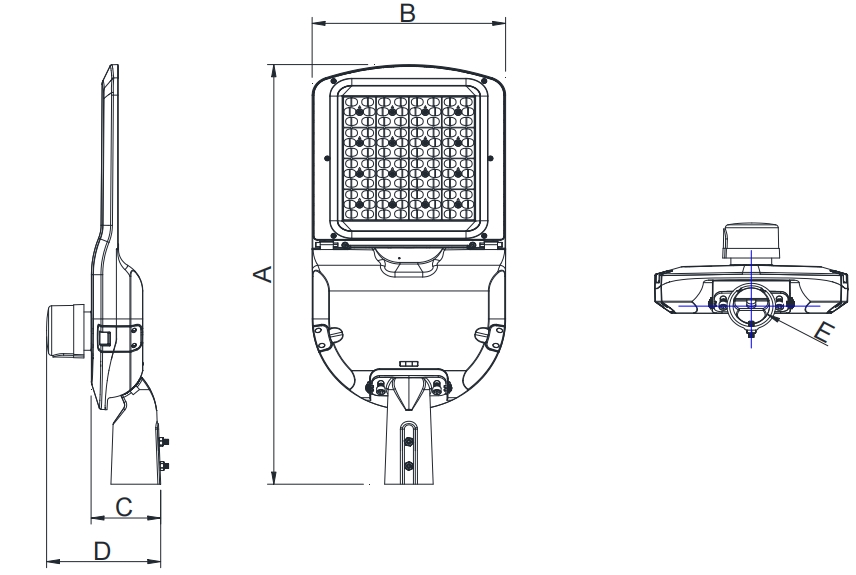

Dimension:
| Model | A(mm) | B(mm) | C(mm) | D(mm) |
30W
50W
80W | 568 | 200 | 109 | 178 |
| 100W | 613 | 240 | 109 | 178 |
| 150W | 683 | 260 | 109 | 178 |
| 200W | 693 | 300 | 109 | 178 |
| 300W | 793 | 300 | 109 | 178 |
Installation:
Repair And Maintenance:
When repairs or maintenance are required, the entire street light source and drive can be disassembled in a m odular manner, which is convenient and convenient to disassemble and install
- Parking lot light
- Urban/Village Street
- Road
- Highways
- Garden/Park
- Schoole/Square/Hospital
- Any Large Outdoor Are,etc
LED Street Lights are widely utilized in diverse urban and outdoor environments due to their versatility and efficiency. They are the preferred choice for illuminating streets, roads, and highways. Below are notable applications of LED Street Lights:
Urban Streets: LED Street Lights are extensively employed to illuminate urban streets, ensuring the safety and visibility of pedestrians, cyclists, and drivers. Their bright and uniform illumination enhances visibility, reducing the risk of accidents and bolstering overall road safety.
Highways and Expressways: LED Street Lights play a crucial role in providing clear visibility over long distances on highways and expressways. By ensuring well-lit surroundings, minimizing glare, and improving overall visibility, they effectively contribute to safer navigation for drivers on these high-speed roads.
Residential Areas: LED Street Lights are also used in residential areas, providing adequate lighting for neighborhoods and communities. They enhance security by illuminating residential streets, driveways, and public spaces, creating a sense of safety and discouraging criminal activities. Parking Lots: LED Street Lights are commonly installed in parking lots to ensure sufficient lighting for vehicles and pedestrians. Their bright and evenly distributed light helps drivers park safely, improves visibility during nighttime, and enhances security in parking areas.
Parks and Recreational Areas: LED Street Lights play a vital role in parks, playgrounds, and recreational areas, creating a safe and welcoming environment for outdoor activities. They provide enhanced visibility for evening walks, jogging, and sports, extending the usability of these spaces even after nightfall.
Commercial and Industrial Areas: LED Street Lights are essential in commercial and industrial areas, ensuring adequate lighting for businesses, warehouses, and manufacturing facilities. They offer energy-efficient lighting solutions that contribute to cost savings while creating a well-illuminated working environment.
Smart City Integration: LED Street Lights can be seamlessly integrated into smart city systems, enabling advanced control and management capabilities. By connecting them to a centralized control system, remote monitoring, dimming, and scheduling become possible. This integration optimizes energy consumption, reduces maintenance efforts, and enhances overall efficiency in urban lighting management.
