Waterproof 100 Watt Outdoor Led Flood Light With UL DLC Listed
IP67, RGB
Description:
Ming Feng Lighting Co.,Ltd come out New type of Module LED Flood
Light. Unlike traditional LED Flood Light which the heat sinker in
on the back of the lamp, this new item using special fin type heat
sinker, making the lamp lighter and better in heat dissipation. And
the place for installing the LED driver is unique and put aside
from the heat sinker, not upon the heat sinker. Which makes the LED
driver be in lower heat working environment, keeping the lamp with
longer life span.
Our Module LED flood light has real saving and high efficiency LED
design since the energy-saving can be up to 120-130lm/w and 5 years
warranty. Different power available: 10W, 30W, 50W, 80W, 100W,
120W, 150W, 180W, 320W 360W etc. We provide various LED flood light
with good illumination effect for your selection.
Specifications:
Item | MF-YFL100 |
Input voltage | 85-265Vac 50Hz/60Hz |
LED Power | 100W |
System Consumption | 100±3W |
Delivered Flux | 12000lm |
IP Rating | IP67 |
Beam Angle | 15°, 30°, 60°, 60*135, 80*135 |
Color temperature | 3000K-6500K , RED, GREEN, BLUE, RGB |
LED Chip | Rebel Es / samsung |
LED Driver | Meanwell/CE |
Color Rendering Index | Ra>75 |
Power Factor | >0.9 |
| Color Of Housing | Silver / Grey / Black |
Lifespan | ≥50,000hrs |
Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
Material | Aluminum Alloy |
Product Size(mm) | 290(L)*333(W)*66(H) |
Net Weight | 10.2Kg |
Certificate | CE/RoHS/DLC |
Warranty Period | 5 years |
Competitive Advantage:
1. We are using 120-130lm/W Rebel ES. It is one of the best leds
from .
2. High light transmittance plastic lens for each leds, lamp
luminous flux can reach 90-95lm/w.
3. Built-in Meanwell drivers, make the flood light safer for
operation.
4. Adjustable bracket equipped with three different fastening
points, which enable the installation of the fitting in each
position needed.
5. 12 / 30 / 60 / 60X135 / 85X135 deg beam angles optional,
different applications are fulfilled in one simple design, which
can direct the light to the exact area needed, no light pollution.
It is espcially suitable for stadium and sports field.
6. Color of housing : Silver / Grey / Black.
7. IP rating: IP67.
Dimensions:
Packing Information:
Light Distribution Curve:

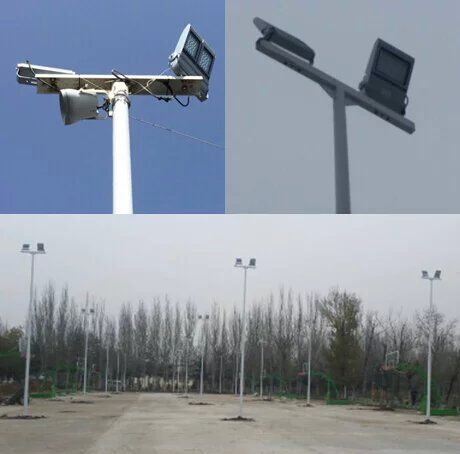

Applications:
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
