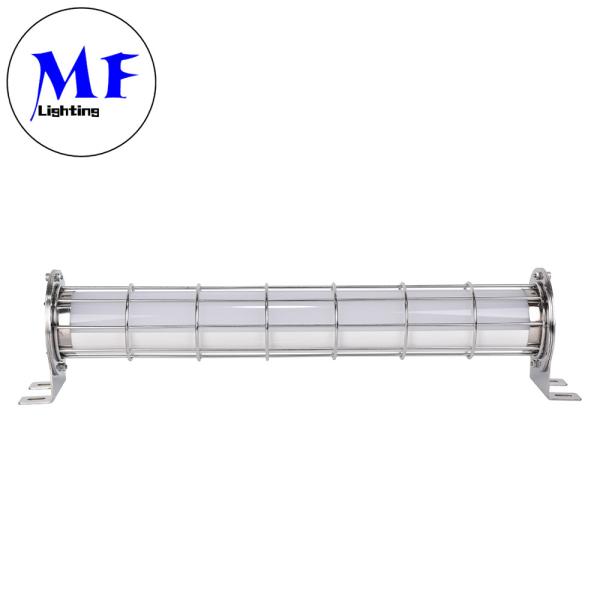

20W/40W Flicker Free Anti-surge LED Explosion Proof Lighting, IP67 IK10 120LM/W 180 Degree Beam
Angle
Quick Detail:
- 20W/40W LED Explosion Proof Light
- Input: AC 120-277V, 50/60Hz
- Luminous Flux: 2400LM/4800LM
- Beam Angle: 180°
- Brand chip: SMD2835/Epistar
- LED Driver: JUSIN
- IP: IP67 IK10
- CRI: 80Ra
- Material: Durable PC Material+Inner Aluminium Plate
Description:
Mingfeng Lighting's explosion-proof light is a high-performance
lighting solution designed for hazardous environments. With an input
voltage range of 120-277V and frequencies of 50/60Hz, it provides reliable
lighting even in the toughest conditions. The light produces a luminous
flux of 2400LM/4800LM with a wide beam
angle of 180°, ensuring uniform illumination across a large area. The
light is equipped with high-quality SMD2835/Epistar chips and a
JUSIN LED driver, ensuring long-lasting performance and energy
efficiency. The light is constructed with durable PC materials and
an inner aluminum plate to withstand harsh environmental
conditions. With an IP67
rating and IK10 impact
resistance, it is suitable for use in explosive
gas and dust environments. With a CRI of 80Ra, it provides a
high-quality light output that accurately reflects colors. Overall,
Mingfeng Lighting's explosion-proof light is a reliable,
high-performance lighting solution for hazardous environments.
Specifications:
Item | MF-ES01-20W | MF-ES02-40W |
| Power | 20W | 40W |
| Luminous Flux | 2400LM | 4800LM |
Product Size | L685*W130*H155mm | L1285*W130*H155mm |
Packing Size | L693*W163*H138mm | L1293*W163*H138mm |
Net Product | 3kg | 4.3kg |
Gross Product | 3.4kg | 4.9kg |
Input voltage | 120-277vAC 50/60Hz |
LED Driver Output | DC36-42V |
Beam Angle | 180° |
Luminous Efficiency | 120LM/W |
LED Driver | JUSIN, 88% Efficiency,Flicker-free,THD<15 |
IP Rating | IP67 IK10 |
Beam Angle | 180° |
Color temperature | 3000K-6500K |
LED Chip | Epistar SMD2835 |
Color Rendering Index | 80Ra |
Working Temperature | -30~50℃ |
Dimming | Non-Dimmable |
Material | Durable PC Material+Inner Aluminium Plate |
Warranty Period | 5 years |
Competitive Advantage:
1.Durable construction: The light is made with durable PC materials
and an inner aluminum plate, making it resistant to harsh
environmental conditions.
2.Energy-efficient lighting: The light features high-quality
SMD2835/Epistar chips and a JUSIN LED
driver, making it an energy-efficient lighting solution that can save on
energy costs.
3.High-performance lighting: With a luminous
flux of 2400LM/4800LM and a wide beam angle of 180°, the light provides
uniform illumination across a large area, making it an excellent
choice for hazardous environments.
4.Safe and reliable: The light has an IP67
rating and IK10 impact
resistance, making it suitable for use in explosive
gas and dust environments. Its CRI of 80Ra ensures high-quality light output that accurately reflects
colors, making it a safe and reliable lighting solution.
Installation Guidelines:
Step 1: Drill 4 holes according to the hole of the light holder.
Step 2: Install expansion screw into mounting hole.
Step 3: Lock nut to fix the light.
Step 4: Adjust the angle of light, fix the rotating bracket(Screw
torque:2.5N/m and plug in.
Dimension:
Length: 685mm/1285mm
Applications:
1. Oil and gas industry: The light can be used in oil and gas
refineries, offshore platforms, and other areas where explosive
gases or vapors may be present.
2. Chemical industry: The light can be used in chemical plants,
laboratories, and other areas where hazardous chemicals are
present.

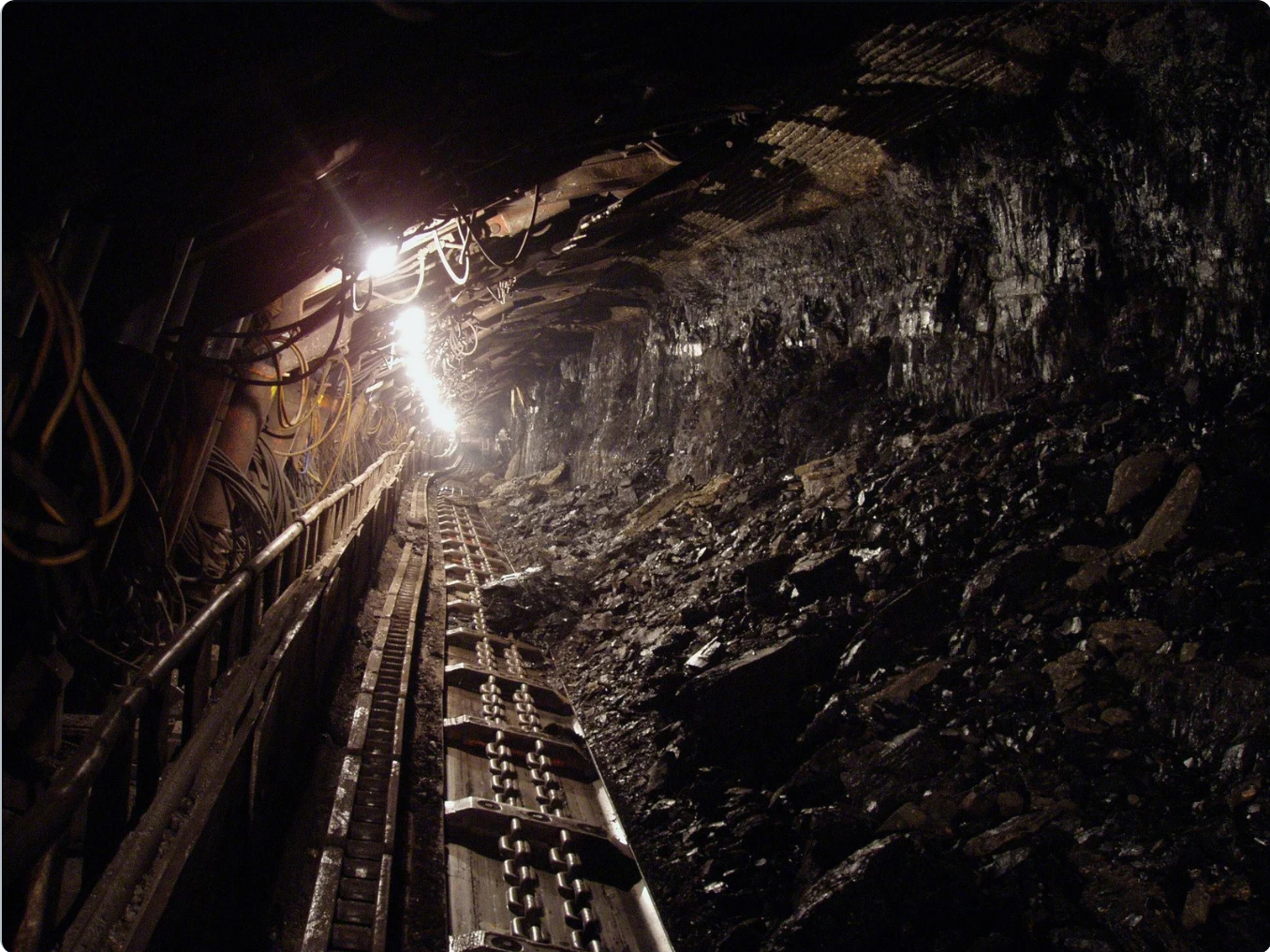

3. Mining industry: The light can be used in underground
mines, where explosive gases or dust may be present.
4. Food and beverage industry: The light can be used in food
processing plants, breweries, and other areas where flammable
liquids or gases are present.
5. Pharmaceutical industry: The light can be used in pharmaceutical
manufacturing facilities, laboratories, and other areas where
hazardous materials are present.
After-sale Service:
● From the date of purchase, the product is provided with a free
warranty for 5 years, and the following conditions are not
included in the free warranty during the warranty period.
● Failure and damage caused by unpacking products; failure caused
by falling and touching during handling and use.
● Failure to operate in accordance with the instructions.
● After the warranty period, if the parts need to be replaced
during the maintenance process, only the cost of materials to
replace the parts, free of time costs.
Shipping:
At Mingfeng Lighting, we understand that shipment is an important
aspect of our business. We take great care to ensure that our
products are packaged securely and shipped in a timely manner. We
work with reliable
shipping companies to ensure that our products arrive at their destination safely. We
also provide tracking
information so that our customers can monitor their shipment's progress. Our
goal is to provide a worry-free shipping experience for our
customers, so they can focus on their business.
