30W-200W IP66 Led Street Light With Sensor Photoelectric Photocel
For Garden Street Road
1.System efficiency up to 130lm/Watt.Professional light
distribution design
2.IP66 rated and IK08.
3.0-10V,1-10V Dimmable available

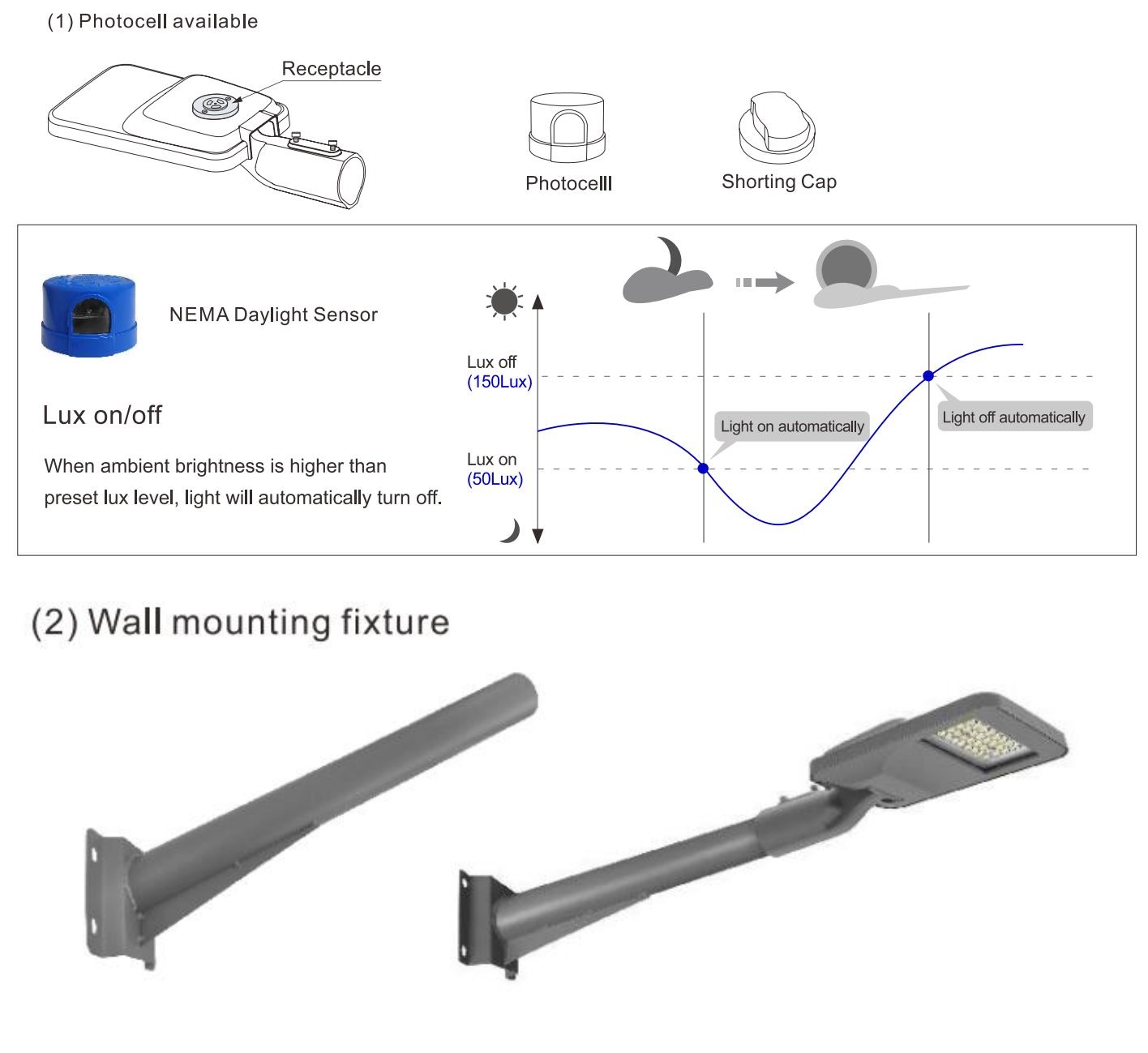

4.Photocell available

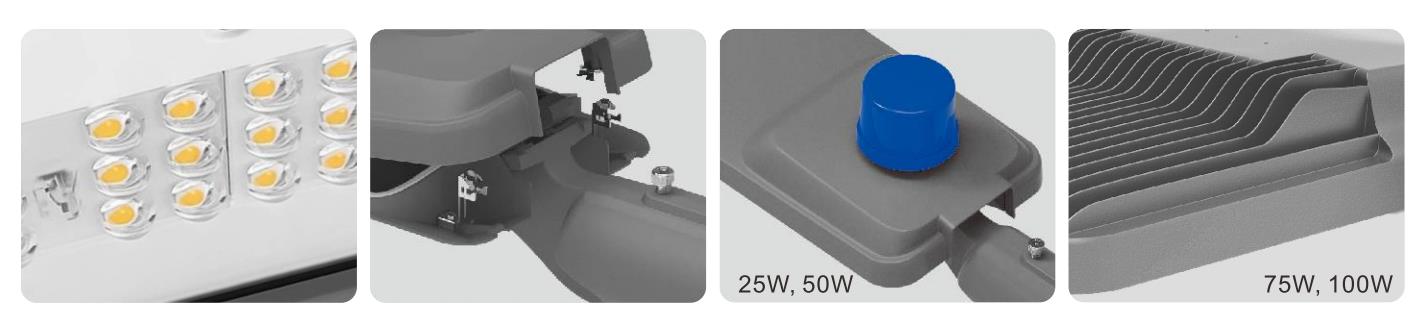

5.Compact Design, with self-cleaning function.
6.Tool-less Entry, Easy installation and maintenance.
7.Class Il Optional.
8.5 years warranty.
LED calculated life
131,000 hrsLifetime(L70B50)
82,000 hrsLifetime(L80B50)
40,000 hrsLifetime(L90B50)
| Model No. | MF-S19A50S | MF-S19A50H | MF-S19A50H-T3M |
| Light Source | Cree 3030 | Cree 5050 | Cree 5050 |
| Input Voltage | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz |
| LED Power (W) | 43-47 | 42-47 | 42-47 |
| System Power(W) | 49-54 | 48-54 | 48-54 |
| Luminous flux (lm) | 5,100-5,800 | 5,600-6,300 | 5.600-6,300 |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Light Distribution | Type ll Short | Type ll short | Type lll Medium |
| ccT(K) | 3000/4000/5000/5700 | 30004000150005700 | 3000/4000/5000/5700 |
| cRI | >70 | >70 | >70 |
| THD(230VAC) | <20% | <20% | <20% |
| surge Protection | CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well) | CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well) | CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well) |
| Power Cable | 1.5m HO5RN-F3×1.0 | 1.5m HO5RN-F 3×1.0 | 1.5m HO5RN-F3x1.0 |
| Driver Output Voltage (vDc) | 36-48 | 36-48 | 36-48 |
| Driver Ourtput Gurrent (mA) | 950 | 950 | 950 |
| Working Temperature rc) | -20 to +50 | -20to +50 | -20to+50 |
| Working Humidity(RH%) | 10-90 | 10-90 | 10-90 |
Light Distribution:

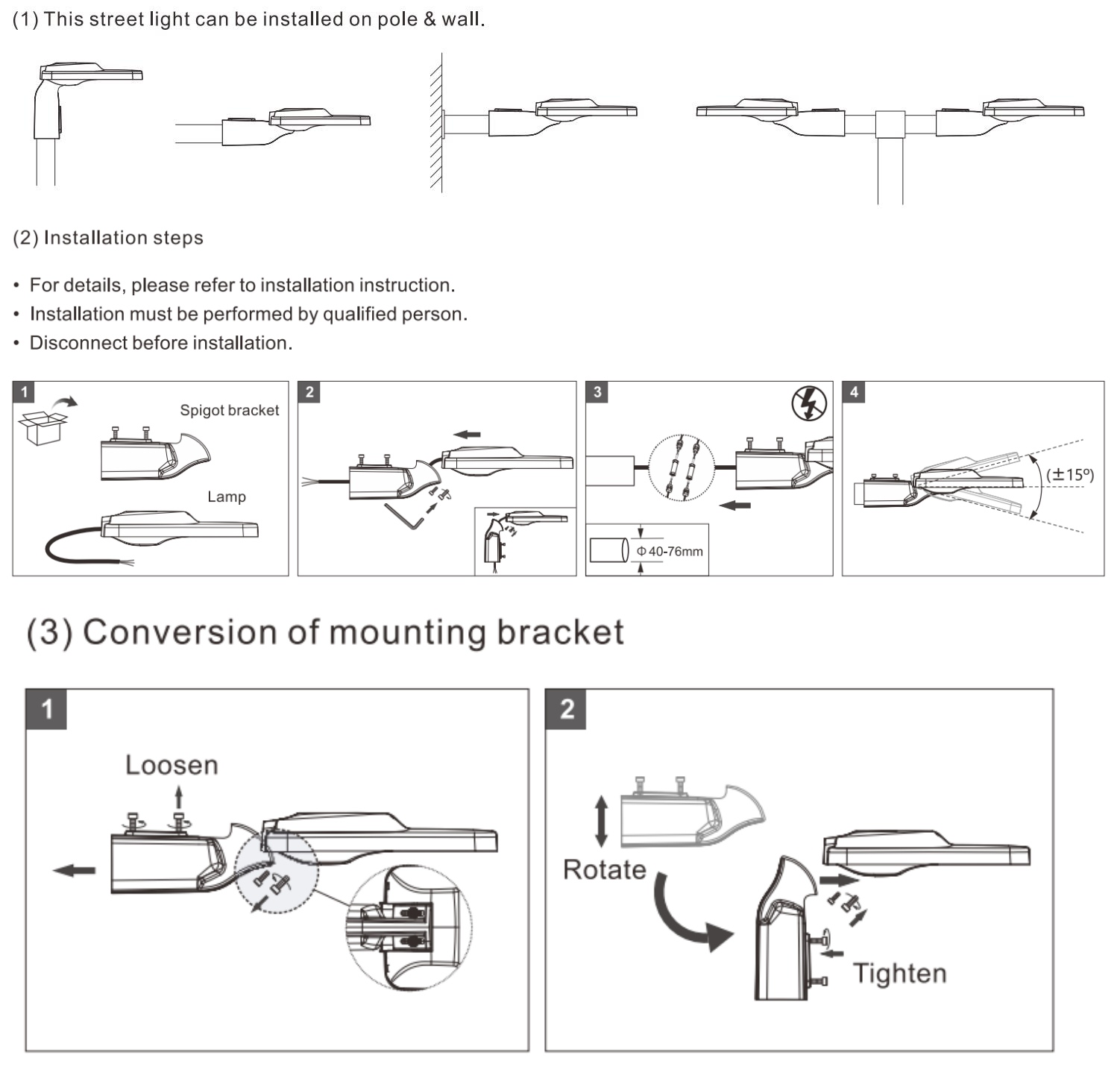

Installation:
CLASS OF Highway:
| Model | M5 | M4 |
| Height of pole(H) | Distance between poles (L) | Height of pole (H) | Distance between poles (L) |
| S19A25H-T3M | 4.5m | 10m | 5m | 6m |
| S19A50H-T3M | 6.5m | 17m | 6.5m | 11m |
| S19A75H-T3M | 8m | 21m | 8m | 15m |
| S19A10OH-T3M | 10m | 26m | 8.5m | 19 m |
| S19A25H | 6 m | 7m | 6m | 5m |
| S19A50H | 8m | 14 m | 7m | 9m |
| S19A75H | 10 m | 17 m | 9m | 12m |
| S19A100H | 12m | 21m | 11m | 14m |
| S19A25S | / | / | 5m | 5 m |
| S19A50S | / | / | 7m | 8 m |
CLASS OF Sidewalk:
| Model | P1 | P2 |
| Helght of pole (H) | Distance between poles (L) | Height of pole (H) | Distance between poles (L) |
| S19A25H-T3M | 4 m | 13m | 4.5m | 17m |
| S19A50H-T3M | 6.5m | 25m | 8.5m | 31m |
| S19A75H-T3M | 7.5m | 27 m | 10m | 33 m |
| S19A100H-T3M | 9.5 m | 36m | 11.5m | 44m |
| S19A25H | 4.5m | 11m | 4.5m | 17m |
| S19A50H | 5m | 23 m | 6 m | 33 m |
| S19A75H | 6 m | 32 m | 8m | 42m |
| S19A10OH | 7.5m | 40m | 9.5m | 50m |
| S19A25S | 4.5 m | 13 m | 4.5m | 18m |
| S19A50S | 5.5m | 22m | 7m | 27m |
LED Street Light Applications:
- Parking lot light
- Urban/Village Street
- Road
- Highways
- Garden/Park
- Schoole/Square/Hospital
- Any Large Outdoor Area,etc
1.Roadway lighting: LED street lights are widely used for
illuminating roads and streets in urban and rural areas, providing
enhanced visibility and safety for motorists and pedestrians.
2.Parking lot lighting: LED lights are commonly installed in
parking lots to ensure well-lit and secure environments, improving
visibility for drivers and pedestrians.
Pathway and sidewalk lighting: LED street lights are utilized to
illuminate pathways, sidewalks, and park trails, creating safer
walking and cycling routes, especially during nighttime.
3.Highway lighting: LED street lights are employed along highways
and expressways, offering clear visibility for drivers, reducing
accidents, and improving overall road safety.
4.Residential street lighting: LED lights are commonly used for
lighting residential streets, enhancing the safety and security of
neighborhoods.
5.Public space lighting: LED street lights are installed in public
spaces such as parks, plazas, and public buildings, providing
adequate lighting for outdoor activities and gatherings.
6.Industrial area lighting: LED lights are utilized in industrial
areas and warehouses, ensuring proper illumination for increased
productivity and worker safety.
7.Campus and institutional lighting: LED street lights are used in
educational campuses, hospitals, and other institutional settings
to provide efficient and reliable lighting solutions.
8.Smart city integration: LED street lights can be integrated into
smart city systems, allowing for remote monitoring, energy
management, and adaptive lighting control.
Overall, LED street lights find applications in various settings,
including roadways, parking lots, pathways, highways, residential
areas, public spaces, industrial areas, and smart city
infrastructures, contributing to improved visibility, energy
efficiency, and safety.
Accessory and Production:
| Model No. | MF-S19A25S/HH-T3M | MF-S19A50S/HH-T3M | MF-S19A75SHH-T3M | MF-S19A100S/HH-T3M |
| lnner Box(mm) | 380*380*130 | 380*380*130 | 495*470*150 | 495*470*150 |
| outer Carton(cm) | 40*40*57(4pcs/CTN) | 40*40*57(4pcs/CTN) | 51.5*49"33.5(2pcsICTN) | 51.5-49*33.5(2pcs/CTN) |
| Net Weight(kg) | 2.7 | 2.7 | 4.6 | 4.6 |
