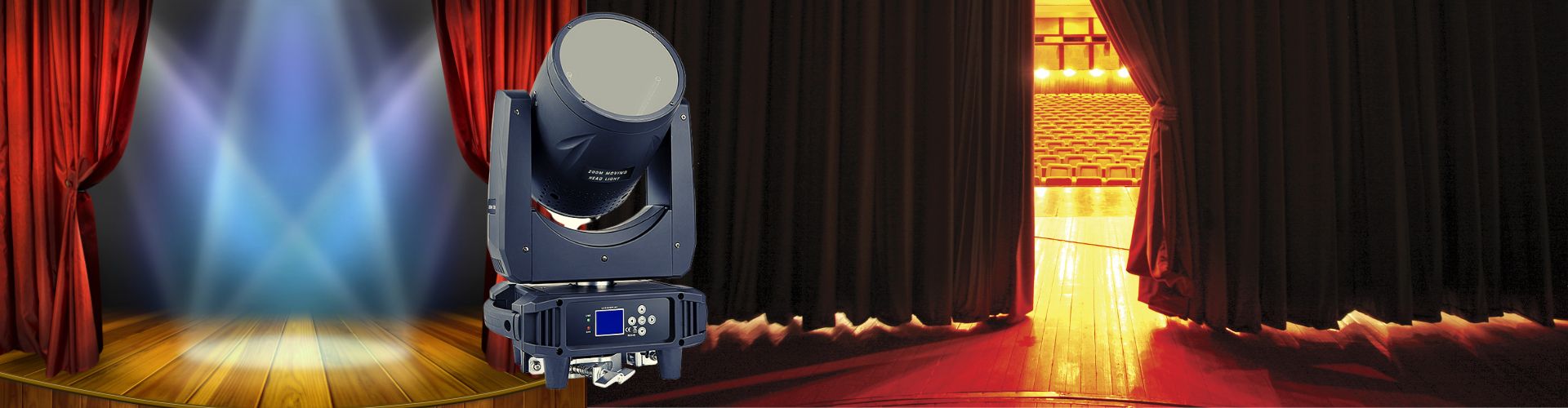

400W Moving Head LED Stage Light With COB DMX512 Voice Control For
Concert Live Performance Dance Opera Show
1.Rated voltage :90-240V 50-60Hz Rated power :400W 2.Led color
temperature: 6800K (positive white)
3.Color Disk: 4Colour +1(white and white)
4.Color temperature dial color temperature :2700K.3000K.4000K.6500K
custom color support 5.Channel: channel 10
6.Focus Angle :8-55°
7.Effective range :50m
8.Magnification effective distance :5m100
9.Screen material :TFT
10.LCD screen Operation mode: press the button 11.Features:
Built-in walk through program for sound control DMX512 with RDM
9.Weight :6.5kg
Rated voltage :90-240V 50-60Hz
Rated power :480W
Led color temperature: 6800K (positive white)
Color Disk: 4Colour +1(white and white)
Color temperature dial color temperature :2700K.3000K.4000K.6500K
custom color support
Channel: channel 10
Focus Angle :8-55°
Effective range :50m
Magnification effective distance :5m100
Screen material :TFT LCD screen
Operation mode: press the button
Features: Built-in walk through program for sound control DMX512 with RDM
weight :6.5kg
Operating instruction:
Description of operation panel
Set up:
| Option | Description |
| Operation mode | DMX | Slave:receive DMX signal from controller or master fixture |
| Auto running1 | Auto running effect demonstrate |
| Master:auto running then sending DMX signal to slave fixture |
| Auto running2 | |
| Random | |
| Sound control | |
| DMX address | 1~512 | press "ok" into editing,then press "up" "down" to change channel
value,then press "ok" to save and exit editing |
| Channel mode | Standard 10CH | Standard 10 channel mode |
| X invert | OFF | ON means exchange the position of the beginning and the end,the
default is OFF |
| ON | |
| Y invert | OFF | ON means exchange the position of the beginning and the end,the
default is OFF |
| ON | |
| XY swap | OFF | |
| ON | Swap the channels of X and Y(include fine-tuning) |
| XY encoders | ON | Use the encoder to judge miss step and correct the position
automatically |
| OFF | Do not use the encoder to Correct the position |
| DMX signal | KEEP | Continue operating as it was |
|
| Color wheel linear change | ON | Color wheel linear change |
| CLEAR | Motors reset,stop operating |
Signal cable connection:
Connect the provided XLR cable to the female 3-pin XLR output of
your controller and the other side to the male 3-pin XLR input of
the moving head. You can chain multiple Moving heads be connected
together through serial linking. The cable needed should be two
core, screened cable with XLR input and output connectors. Please
refer to the diagram below. DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or
is in an electrically noisy environment, such as in a discotheque,
it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged into the
output XLR socket of the last fixture in the chain. Please see
illustrations below.
Key instruction:
The function of the "Left" is the same with the "Right"key:return
to the previous interface. The function of the "Up" and
"Down"key:select,edit The confirm key ("OK" key)":operate,start
editing,exit editing
LED stage lights have a wide range of applications in the
entertainment industry. Here are some key areas where LED stage
lights are commonly used:
Concerts and Live Music Performances: LED stage lights create
dynamic lighting effects that enhance the atmosphere and visual
impact of live music events.
Theater Productions: LED stage lights are utilized to set the mood,
highlight actors or scenes, and create captivating lighting designs
that complement the storytelling.
Dance Performances: LED stage lights are employed to accentuate
dance movements, create vibrant color palettes, and add visual
excitement to dance performances.
Corporate Events and Conferences: LED stage lights are used to
provide professional lighting setups for keynote speeches,
presentations, and product launches, enhancing the overall visual
experience.
Fashion Shows: LED stage lights are utilized to create dramatic and
evocative lighting designs that enhance the runway and showcase the
clothing creations.
Television and Film Productions: LED stage lights are incorporated
into studio setups to provide versatile and controllable lighting
solutions for TV shows, movies, and commercials.
Theme Parks and Attractions: LED stage lights are used to
illuminate rides, shows, and themed areas in theme parks, providing
immersive lighting experiences for visitors.
Nightclubs and DJ Performances: LED stage lights are employed to
create vibrant, energetic lighting displays that synchronize with
the music and enhance the clubbing experience.
Exhibitions and Trade Shows: LED stage lights are utilized to
highlight products, create visually appealing displays, and draw
attention to exhibition booths.
Architectural Lighting Installations: LED stage lights are used to
illuminate iconic buildings, monuments, and landmarks, enhancing
their visual appeal and creating stunning nighttime displays.
These applications demonstrate the versatility and impact of LED
stage lights in various entertainment, commercial, and
architectural settings, ensuring captivating visual ex
