Atex certified 18W/36W/45W IK10 Durable Robust Dustproof Gasoline Harsh Environment Mining Tunnel Explosion proof light
Compact structure, small size and light weight for easy installation.
High vibration and impact resistant.
Protective metal cage against light potential damage.
Working Temperature: - 20ºC ~ +60ºC.
Impact resistant and thermally stable toughened glass.
EXPLOSION PROTECTION
Marking ATEX
II 2 G Ex eb mb IIC T6 Gb
Il 2 D Ex tb IIIC T80°C/T95°C Db IP66
Marking IECEx
Ex Eb mb IIC T6 Gb
Ex tb IIIC T80°C/T95°C Db IP66
Marking UL844(North American)
Class I,Division 2,Groups A,B,C,D
Class II,Division 2,Groups F,G
Class III
Marine Marking
UL 1598A
Other Rating
NEMA 3, 4X, IP66
MATERIALS
Die-casting metal
UL844.Atex,IECEx Standard
20W/36W/45W LED Explosion Proof Light
Input: AC100-277V ac 50~60Hz
Luminous Flux: 140LM/W
CCT: 2000K-7000K
Brand Chip: World Class Brand Chip
IP: IP66 IK10
CRI: 80Ra
Material: Die-casting Metal
ATEX Standard (Zone 1):
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T95°C...T125°C Db IP66
ATEX Standard (Zone 2):
II 3G Ex ec mb IIC T6...T4 Gc
II 2D Ex tb IIIC T80°C...T125°C Db
IECEx Standard (Zone 1):
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T95°C...T125°C Db IP66
IECEx Standard (Zone 2):
Ex ec mb IIC T6...T4 Gc
Ex tb IIIC T80°C...T125°C Db
Class I Zone 2 Group IIC
Class II Zone 21 Group IIIC
IP66/IP67
IK06/07 (without wire guard)
IK09 (with wire guard)
1000 hours salt spray
| Product Number | Wattage | Color
Temperature | Voltage | Lumens | Warranty | CRI | Emergency
Time |
| EX-18WX3YZDA | 18 | 2200K-7000K | AC100-277/220-480V | 2520 | 5 Years | 80 | 3 Hours |
| EX-36WX3YZDA | 36 | 2200K-7000K | AC100-277/220-480V | 5040 | 3 Hours |
| EX-45WX3YZDA | 45 | 2200K-7000K | AC100-277/220-480V | 6300 | 3 Hours |
"x"=Product code, "Y"=D or N:Dimmable or non-dimmable "Z"=CCT, from 2200-7000K
"D"=Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°
A for glass info. blank for flat glass, c for spherical glass.
Photometry
Product dimension:
Installation Instructions
Ceiling Mounting Pole Mounting

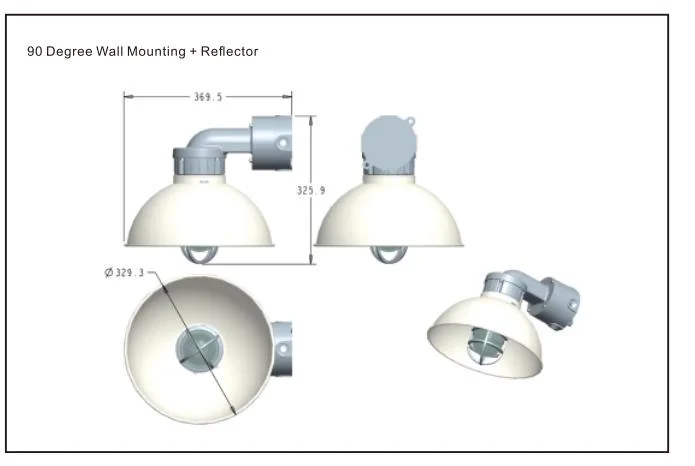

90 Degree Wall Mounting 90 Degree Wall Mounting + Reflector
Accessories
WARNING
READ THIS INSTRUCTION CAREFULLY BEFORE INSTALLING. KEEP THIS INSTRUCTION FORFUTUREREFERENCE.
Fixtures must be wired in accordance with the Nationalelectrical code and all applicable local codes. Proper grounding is requiredfor safety.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A QUALIFIED ELECTRICIANWHOIS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED,
Warning: Risk offire or electric shock, High bay light installation requires knowledge ofluminaires and electrical systems.If notqualified, DO NOT try to install. Please contact an electrician.
Warning: Risk of fire or electric shock. Suitable for wet locations. Make sure the power is off prior to install.
Warning: Risk offire or electric shock. Suitable for non-insulated surface and frame.DO NOT cover fixture with insulation liner orsimilar material.
Warning: DO NOTinstall in unstable, loose or breakable surfaces.
Warning: DO NOT let objects impact or exert force on the surface of the fixture.
Oil and Gas industry • All petroleum production and refining • Petroleum loading and transportation • Petroleum storage and retail • LNG industry • All mining operations and service Chemical industry • All types of paint facilities • Chemical production and storage Ocean, marine and aerospace field • Ocean platform operation facilities and structure • Aerospace clean room and production • Ocean vessel operations Metal treatment • Steel and aluminum factories • Pumping stations in any environment • Metal smelting, foundry and fabrication Food and alcohol industry • Flour and fine particle production and storage • Food and distilling production • Alcohol industry Other high humidity, high dust,high temperature, vapor locations
What is the function of explosion-proof lights
Explosion-proof lamps are one level lighting fixtures with explosion-proof performance, mainly used in industrial places. They are industrial lighting fixtures, so what is the use of explosion-proof lamps?
The main function of explosion-proof lamps is to prevent electric arcs, sparks, and high temperatures that may occur inside the lamp from causing flammable gases and dust in the surrounding environment, thereby achieving
According to the explosion-proof requirements, qualified explosion-proof lamps must be used for lighting in flammable and explosive places.
Where are explosion-proof lamps mainly used
Explosion proof lamps are mainly used in hazardous areas where combustible gases and dust exist, including:
1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.
2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.
3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and
Durable explosion-proof lighting fixtures that can withstand these factors are crucial.
4. Coal mining industry

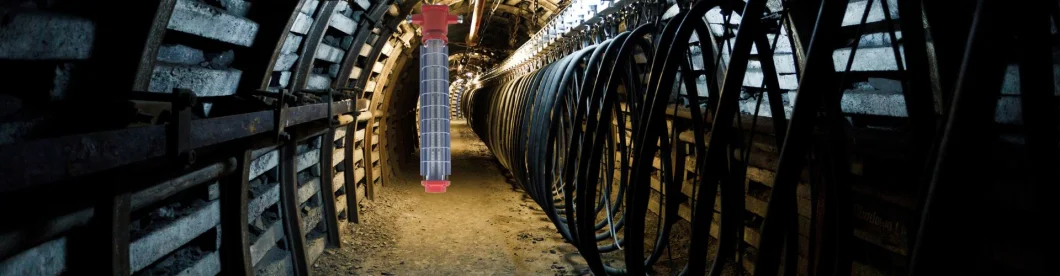

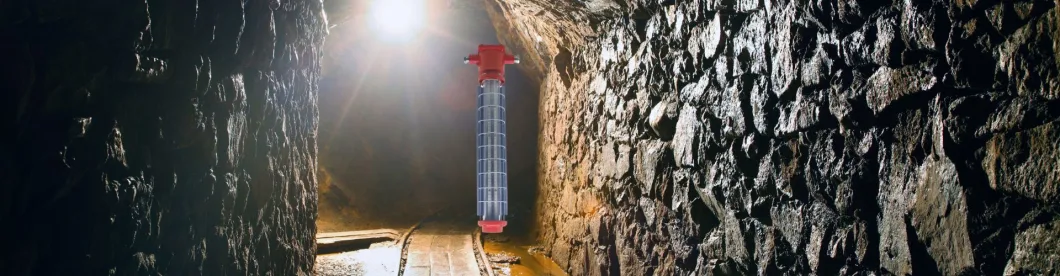

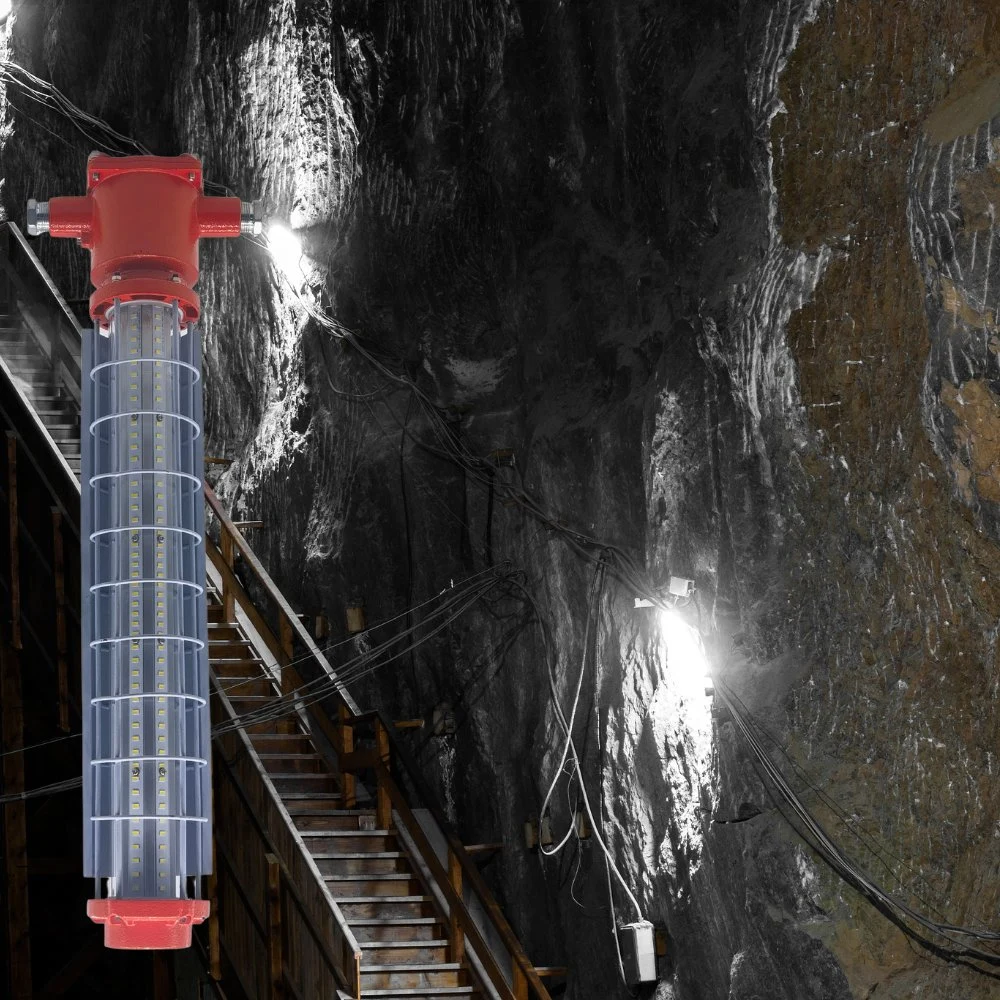

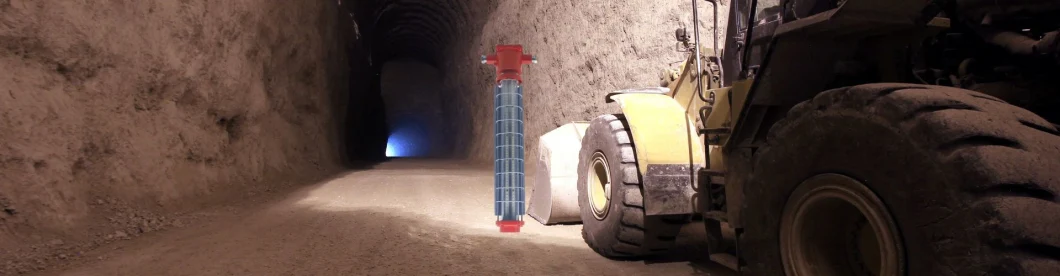

The coal mining industry contains explosive mixtures of gases such as methane and coal dust. It is also necessary to use explosion-proof lamps for floodlighting in underground tunnels and chambers of coal mines.
5. Medical Pharmaceuticals
Pharmaceutical companies, whether they are biopharmaceuticals, chemical synthetic drugs, or raw materials, often use various flammable and slow organic solvents in their production processes and processes
The quality belongs to flammable and explosive substances, so a series of explosion-proof measures must be taken to ensure safe production, and the use of explosion-proof lamps is one of them.
1.From the date of purchase, the product is provided with a free warranty for 5 years, and the following conditions are not included in the free warranty during the warranty period:
Failure and damage caused by unpacking products;
Failure caused by falling and touching during handling and use;
Failure to operate in accordance with the instructions.
2.After the warranty period, if the parts need to be replaced during the maintenance process, only the cost of materials to replace the parts, free of time costs.
| Model | Net Weight (Product) | Package Dimensions (LxWxH) | Quantity/ Carton | Gross Weight |
| EX-XXWX3YZDA | 4.65KG | 210*160*650 | 1 pc | 5.4KG |
Ming Feng Lighting Co.,Ltd is one of the leading LED light product, located in Guangdong Province, China. Established in year 2009 and has more than 14 years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED outdoor lamp. For the LED indoor light, we are producing the LED Triproof Lights, LED Vapor Tight Lights,LED down lights ,LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED sports lights and some of outdoor LED landscape light.With the rapid growth of our sales volume in the market, our R&D are expanding quickly to meet the market demands.
Our main market is in European, South American and North American. Our factory locates between Shenzhen port and Guangzhou, it's convenient to visit our factory and delivery the container to all around the world based on Shenzhen port.
Ming Feng Lighting Co., Ltd warmly welcome all the partners visit our factory and share the ideas of the LED light. Ming Feng Lighting factory stays with you all the time to share the happiness of the LED light, let's work together to create an outstanding future.
HISTORY Ming Feng Lighting Co.Ltd factory established in year 2009 and has 14 years great experience in exporting LED lighting products. We dedicate ourselves in the LED lighting area to develop the market-oriented LED light product. We are proud of that, our factory can manufacture the outstanding LED light with high quality standard.
SERVICE Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients: ★
OEM/ODM Serivce ★
Photometric/IES file ★
Dialux simulation design ★
PCB Design/Driver Design ★
Heat Management/Optical Design ★
Industry Design ★
Market Support ★
3D Printing ★
Multiple Listing/Private Label. OUR TEAM Ming Feng Lighting Co.Ltd has 200 employees, which include administrative staff 30 people, engineers 10, industrial designer 5, quality control department 8, and 150 people involve in production line as well warehouse and logistics department.
FAQ:
Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Tri-proof Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Tri-proof Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Tri-proof Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q6: How do I proceed with an order for the LED Tri-proof Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.
Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
