Factory price Atex certified High Bay Area Hanging Wall Mounted 20W 40W 60W Zone 1 Zone 2 LNG Gas Station Oil Industry Explosion proof light
Materials
•Housing: Copper-free aluminum
•Lens: Tempered glass
•Hardware: Stainless steel
•Mounting Bracket: Stainless steel
Features
•Working Temperature: -40°C ~ +55°C.
•High quality SMT LED.
•Heavy-duty and high impact resistance.
•Replaceable LED board and drivers.
•Integrated junction box for driver .
•Dimmable and battery back up function available.
•Marine rating powder coated finish treatment.
•Up to 5 years warranty .
•Various installation ways for different applications.
•Glass lens or polycarbonate lens to make different beam angles.
Suitable for Zone 1&2 (Gas), Zone 21&22 (Dust)
High luminous efficacy - Up to 120-140 lumens per watt
0-10V dimming Waterproof and dust-proof, without internal cleaning and maintenance
Simple structure for easy and quick installation
Stainless steel fasteners, ADC12 aluminum housing, good corrosion resistance
Tempered glass, high light transmittance and impact resistance
5-Year Standard Warranty
LED lumen Maintenance: L70> 150,000 Operation Hours@55°C
ATEX Standard (Zone 1):
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T95°C...T125°C Db IP66
ATEX Standard (Zone 2):
II 3G Ex ec mb IIC T6...T4 Gc
II 2D Ex tb IIIC T80°C...T125°C Db
IECEx Standard (Zone 1):
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T95°C...T125°C Db IP66
IECEx Standard (Zone 2):
Ex ec mb IIC T6...T4 Gc
Ex tb IIIC T80°C...T125°C Db
Class I Zone 2 Group IIC
Class II Zone 21 Group IIIC
IP66/IP67
IK06/07 (without wire guard)
IK09 (with wire guard)
1000 hours salt spray
| ltem | Power | Color Temperature | Voltage | Lumens | Warranty | CRI | Emergency Time |
| EX-20W B3YZDA | 20w | 2200K-7000K | AC200-250V/DC12-48V | 2600 | 5 years | 70 | 3 Hours |
| EX-40W B3YZDA | 40w | 4200 |
| EX-60W B3YZDA | 60w | 7800 |
"B3,B4"=Product code."Y"=D or N D:Dimmable or N: non-dimmable "Z"=CCT, from 2200-7000k, 22 for 2200k...70 for 7000K.
"D"=Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°
"A"=glass type. blank for flat glass, C for spherical glass.

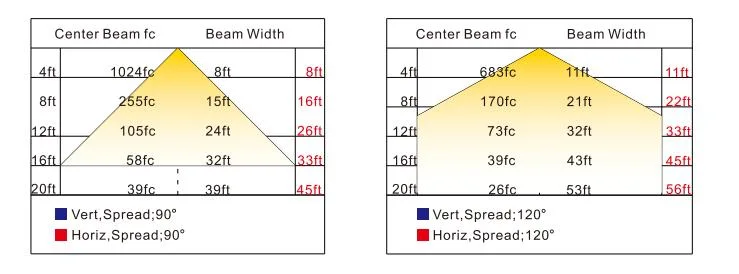

Photometry

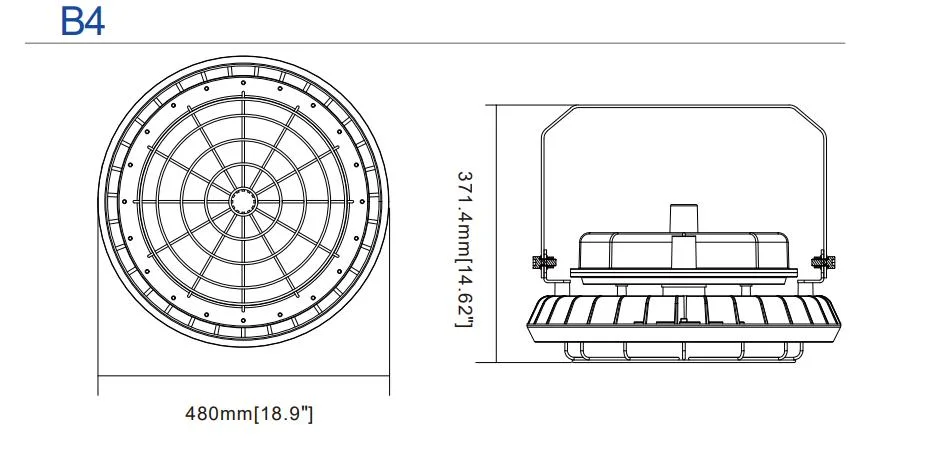

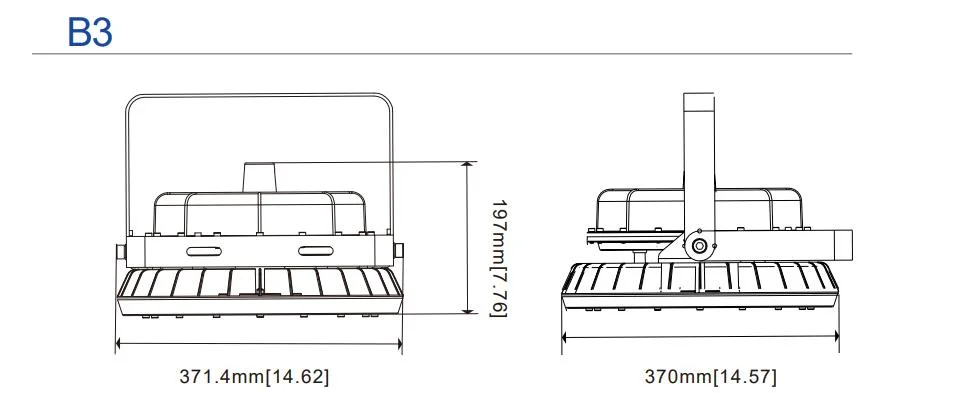

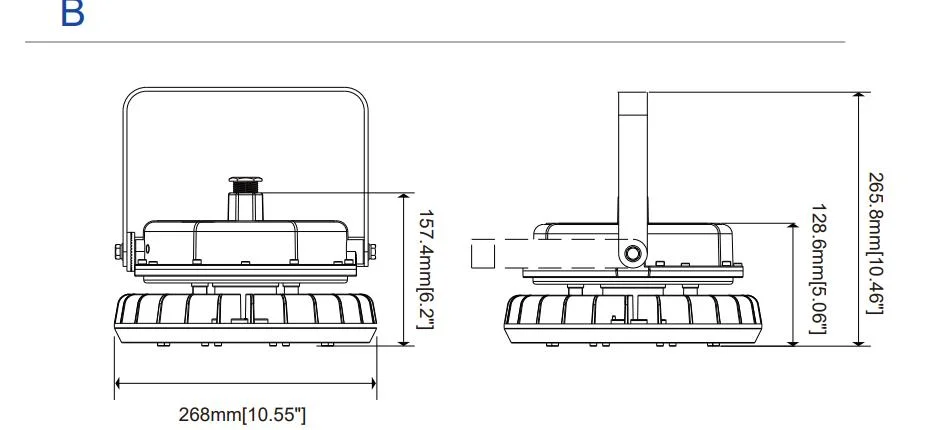

Product dimension:

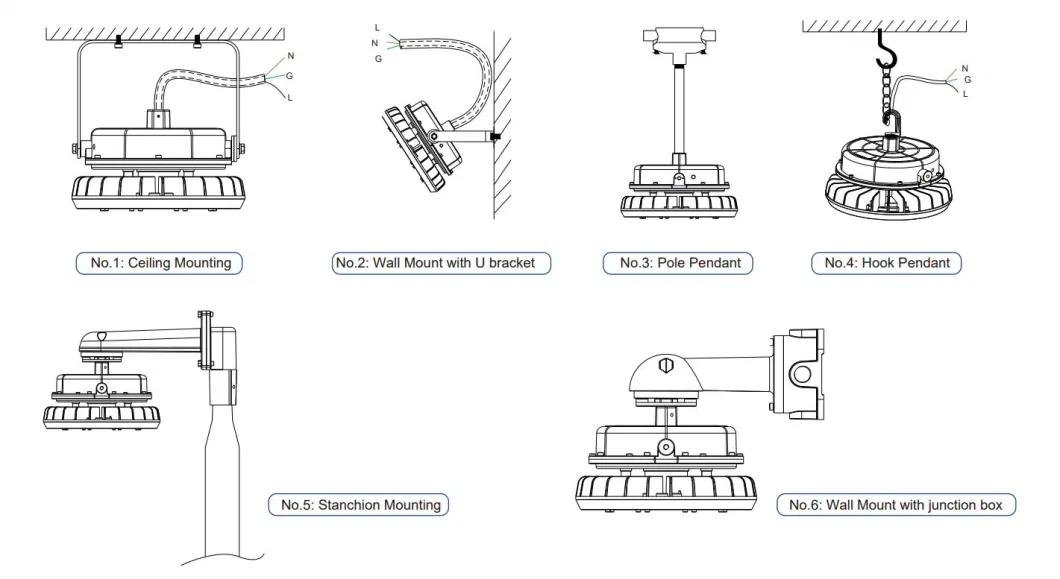

Installation Instructions
Accessories
Oil and Gas industry • All petroleum production and refining • Petroleum loading and transportation • Petroleum storage and retail • LNG industry • All mining operations and service Chemical industry • All types of paint facilities • Chemical production and storage Ocean, marine and aerospace field • Ocean platform operation facilities and structure • Aerospace clean room and production • Ocean vessel operations Metal treatment • Steel and aluminum factories • Pumping stations in any environment • Metal smelting, foundry and fabrication Food and alcohol industry • Flour and fine particle production and storage • Food and distilling production • Alcohol industry Other high humidity, high dust,high temperature, vapor locations
What is the function of explosion-proof lights
Explosion-proof lamps are one level lighting fixtures with explosion-proof performance, mainly used in industrial places. They are industrial lighting fixtures, so what is the use of explosion-proof lamps?
The main function of explosion-proof lamps is to prevent electric arcs, sparks, and high temperatures that may occur inside the lamp from causing flammable gases and dust in the surrounding environment, thereby achieving
According to the explosion-proof requirements, qualified explosion-proof lamps must be used for lighting in flammable and explosive places.
Where are explosion-proof lamps mainly used
Explosion proof lamps are mainly used in hazardous areas where combustible gases and dust exist, including:
1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.
2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.
3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and
Durable explosion-proof lighting fixtures that can withstand these factors are crucial.
4. Coal mining industry
The coal mining industry contains explosive mixtures of gases such as methane and coal dust. It is also necessary to use explosion-proof lamps for floodlighting in underground tunnels and chambers of coal mines.
5. Medical Pharmaceuticals
Pharmaceutical companies, whether they are biopharmaceuticals, chemical synthetic drugs, or raw materials, often use various flammable and slow organic solvents in their production processes and processes
The quality belongs to flammable and explosive substances, so a series of explosion-proof measures must be taken to ensure safe production, and the use of explosion-proof lamps is one of them.
1.From the date of purchase, the product is provided with a free warranty for 5 years, and the following conditions are not included in the free warranty during the warranty period:
Failure and damage caused by unpacking products;
Failure caused by falling and touching during handling and use;
Failure to operate in accordance with the instructions.
2.After the warranty period, if the parts need to be replaced during the maintenance process, only the cost of materials to replace the parts, free of time costs.
