Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

Ming Feng Lighting Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers

    Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers
    • Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers
    • Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers
    • Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers
    • Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers
    • Buy cheap Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W from wholesalers

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF Stadium Light Horse-8
    Certification : CE, RoHS,SAA
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    IP67 5 years warranty high quality No Light pollution Outdoor Waterproof 400W LED Flood Light for Arena Tennis Basebal Field Court Golf Course

    Product Description

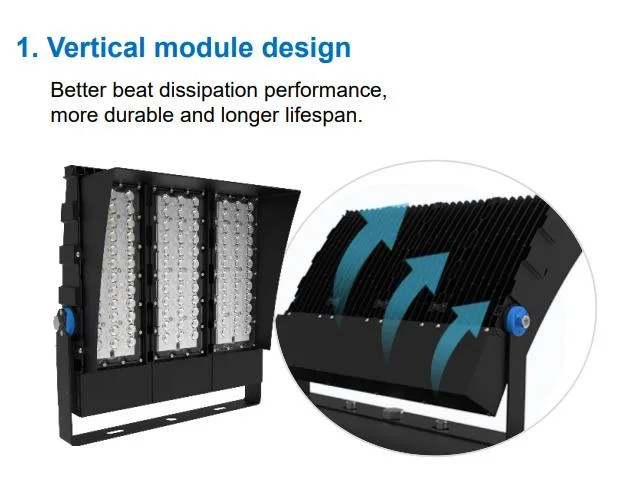

    Vertical module design, better heat dissipation performance, more durable and longer lifespan.

    3 way to install : bracket installation /Pole installation / Wall installation for option

    Built-in driver, lP67 waterproof plus shell protection,double protection, much safer.

    Light uniformity, high quality No Light pollution, 1-10V/PWM/ Triac dimming.

    Zigabee WIRELESS control is available
    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W


    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    ltems MF-S06A
    200BT
    MF-S06A
    300BT
    MF-S06A
    400BT
    MF-S06A
    600BT
    MF-S06A
    800BT
    MF-S06A
    1200BT
    Wattage 200w 300w 400w 600w 800w 1200W
    Lumen Output 28000LM 42000LM 56000LM 84000LM 112000LM 168000LM
    LED Brand Lu-mileds5050/3030
    LED Driver SOSEN/MEAN-WELL/INVENTRONICS
    Luminous Efficacy 145LMW~155LMW
    Beam Angle TYPE I,TYPE I,25°,60,90 °,80*150
    Color Temperature 3000K,4000K,5000K,6000K,CCT etc
    lnput Voltage 100-277
    CRI 70/80
    Life Hours 50000H
    Surge Voltage 10KV
    peration Temperature Ta=40
    IP Rating IP65
    Warranty 5years

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Characteristic

    Free Dialux Lighting Design

    Our experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

    1.Free OEM/ODM
    2.Free DIALux testing service.
    3.8 years of engineering experience, for your project escort.
    4.Complete certificate, CE, RoHS, ETL, FCC etc.
    5.Provide a complete test report.
    6.First sample test, provide complete test report and product picture before delivery
    7.5 years warranty, free replacement.
    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

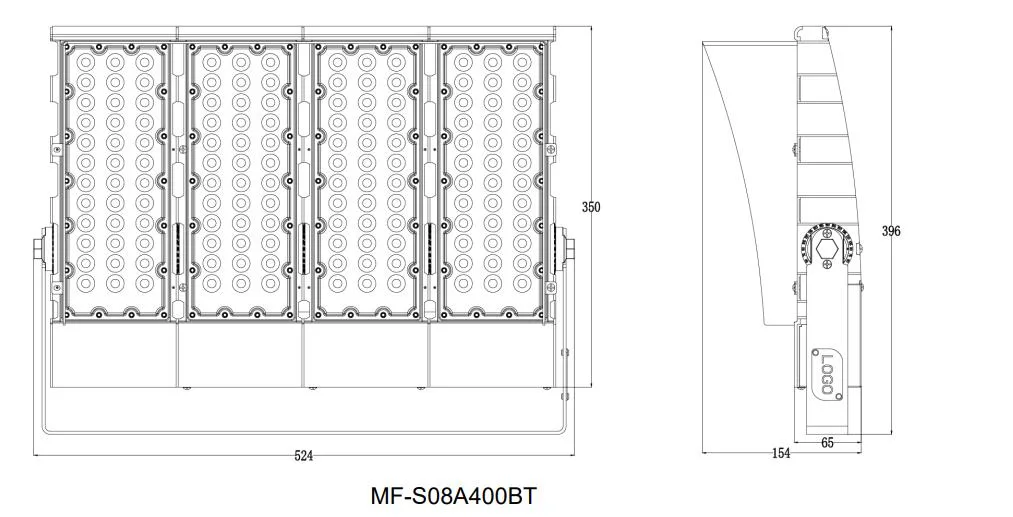

    Dimension

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Photometry

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W


    Application

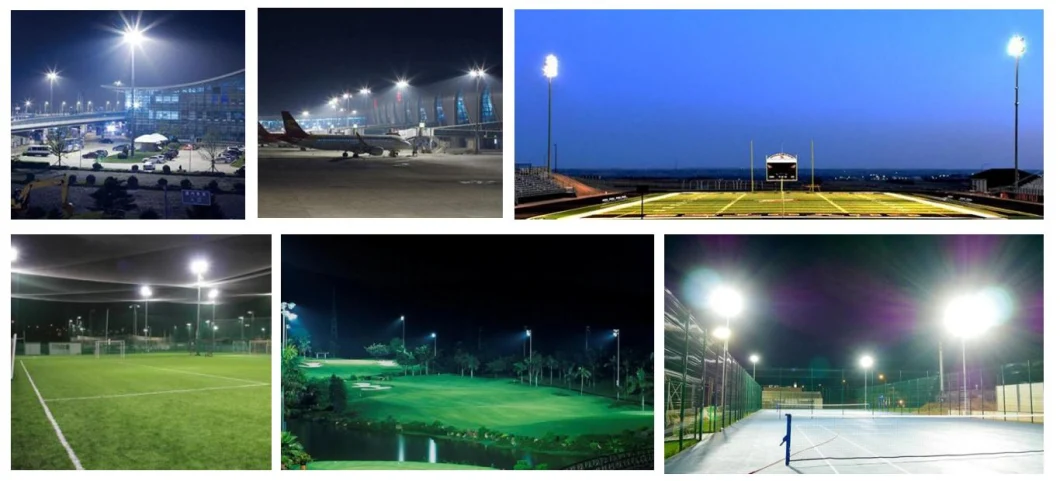

    Ideal for football pitches, sports fields, airport hangers, Wharfs, Tower Cranes, Golf Course, stadium etc.
    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W
    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500WNarrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Accessory

    0-10V, DMX and DALI dimming modes optional

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Packaging & Shipping

    ltem# MF-S03B
    200BT
    MF-S03B
    300BT
    MF-SO3B
    400BT
    MF-S03B
    600BB
    MF-S03B
    800BB
    MF-S03B
    1000BB
    Watts 200w 300w 400w 600w 800w 1000w
    Qty 1
    N.w. 7.1kg
    15.6lb
    10.14kg
    22.3lb
    12.82kg
    28.2lb
    19.7kg
    43.4lb
    25.8kg
    56.8lb
    33.38kg
    73.6lb
    G.w. 8kg
    17.6lb
    11.24kg
    24.8lb
    14.06kg
    31lb
    21.2kg
    46.7lb
    27.9kg
    61.5b
    35.88kg
    79.1lb
    Carton
    Size
    360*475*160
    mm
    14.1*18.7*6.3
    inch
    470*475*160
    mm
    18.5*18.7*6.3
    inch
    580*475*160
    mm
    22.8*18.7*6.3
    inch
    690*475*160
    mm
    27.1*18.7*6.3
    inch
    620*795*160
    mm
    24.4*31.3*6.3
    inch
    730*795*160
    mm
    28.7*31.3*6.3
    inch

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W
    Narrow angle LED Stadium Light IP67 Outdoor Waterproof 200W 300W 400W 500W

    Installing a high mast light requires careful planning and adherence to safety guidelines. Here are general steps to follow for the installation of a high mast light:

    Design and Preparation:

    Determine the desired lighting coverage area and required brightness levels.
    Conduct a site survey to assess the terrain, obstructions, and electrical infrastructure.
    Design the layout of the high mast lights, considering the number of lights, their positioning, and the height of the mast.


    Obtain Permits and Approvals:

    Check local regulations and obtain any necessary permits or approvals for the installation.
    Ensure compliance with electrical codes and safety standards.


    Foundation Construction:

    Excavate the area for the mast foundation, ensuring proper depth and dimensions as per engineering specifications.
    Pour concrete into the excavation, allowing it to cure and provide a stable base for the mast.


    Mast Assembly:

    Assemble the high mast tower according to the manufacturer's instructions.
    Ensure all components are securely connected, including the mast sections, brackets, and winch system.


    Electrical Connections:

    Install an electrical service panel near the base of the mast to house the electrical connections.
    Connect the electrical wiring from the power source to the service panel, following electrical codes and safety practices.
    Connect the wiring from the service panel to the high mast lights, ensuring proper grounding and insulation.


    Hoisting the Mast:

    Use a suitable crane or lifting equipment to raise the assembled mast upright.
    Ensure the mast is properly aligned and leveled before securing it to the foundation.


    Light Fixture Installation:

    Attach the high mast light fixtures to the mast brackets, following the manufacturer's instructions.
    Ensure proper aiming and positioning of the lights to achieve the desired lighting coverage.


    Testing and Adjustment:

    Conduct a comprehensive testing of the installed high mast lights, verifying their functionality, and ensuring proper illumination.
    Adjust the lights as needed to optimize their direction, angle, and brightness.


    Final Checks and Maintenance:

    Inspect all electrical connections, ensuring they are secure and protected.
    Conduct routine maintenance checks to ensure the ongoing performance and longevity of the high mast lights.
    It is vital to consult with a professional electrical contractor or lighting specialist experienced in high mast installations to ensure proper installation and compliance with local regulations and safety standards.
