250W 360W 480W 720W 960W IP66 150-170lm/w 3000K-6500K Superman-2
Family LED High Mast Light for Sport Court/Airport/Parking Lot
Quick Details
1. IP66 250W 360W 480W 720W 960W LED High Mast Light
2. Input: AC100-277V 50-60Hz
3. Beam Angle: 15°/20°/45°/60°/90°/120°, asymmetric 105°/55°
4. CCT: 3000K-6000K
5. PF: >0.95
6. Lifespan: >=100,000Hrs
Parameters
| Power | 240W | 360W | 480W | 720W | 960W |
| Luminous flux (45°, 20°) | 32400±5% lm | 48600±5% lm | 64800±5% lm | 97200±5% lm | 129600±5% lm |
| LED Quantity | 216 pcs | 288 pcs | 432 pcs | 648 pcs | 864 pcs |
| Light Efficiency | ≥135 lm/W |
|
| Luminous flux (45°, 15°) | 32400±5% lm | 48600±5% lm | 64800±5% lm | 97200±5% lm | 129600±5% lm |
| LED Quantity | 264 pcs | 396 pcs | 528 pcs | 792 pcs | 1056 pcs |
| Light Efficiency | ≥135 lm/W |
|
| Luminous flux (60°, 90°) | 32400±5% lm | / | 64800±5% lm | 97200±5% lm | 129600±5% lm |
| LED Quantity | 288 pcs | / | 576pcs | 864 pcs | 1052 pcs |
| Light Efficiency | ≥135 lm/W |
|
| Luminous flux ( Asymmetric 105°, 55°) | 32400±5% lm | / | 64800±5% lm | 97200±5% lm | 129600±5% lm |
| LED Quantity | 288 pcs | / | 576pcs | 864 pcs | 1052 pcs |
| Light Efficiency | ≥135 lm/W |
|
| Color | WW | NW | CW |
| CCT | 3000±300K | 4000±300K | 5700±300K |
| CRI | ≥70 |
| Main Material | PC, Aluminum Alloy, Tempered Glass |
| Lifespan | >100,000h |
| Beam Angle | 20 °/15 ° 45° 60° 90° 120° Asymmetric 105°/55° |
LED Parameter:
| Brand | CREE | Lu-miled |
| Chips Size | 3.5X3.5X2.0 mm | 3.0X3.0X0.52 mm |
| LED Beam Angle | 120° | 120° |
| Driving Power | 1W(350mA) | 1W(140mA) |
| CRI | ≥70 | ≥70 |
| LED Light Efficiency | 120-150lm | 120-150lm |
Distribution Cabinet Parameter:
| Rated Voltage | 100-240,277V AC / 240-480V AC Single-phase / tri-phase |
| Anti-surge Protection | 20KA(8/20us) |
| Load Power | 5KW | 10KW |
| Size | 1200*960*400mm | 1800*960*400mm |
| Weight | 40kg | 80kg |
Product Features
Modular design, independent power supply, easy to achieve power
changes without extra accessories and easy for rapid maintenance.
ADC12 die-casting aluminum, improve the performance against salt
spray, gas corrosion, ultraviolet light. Extending the lifespan and
reducing the light decay.
Professional light distribution for high pole lighting, high
uniformity and utilization rate. Combined different light
distribution to reduce light waste and pollution.
Patented scratch-free angle adjustment design, easy to achieve
precise adjustment, while protecting the paint surface of the
mounting bracket to avoid rust caused by scratches.
External floating design for driver, equipped with a reinforced
heat dissipation bracket to form a convection channel with the
radiator, extending the lifespan of the driver and easy for
maintenance.

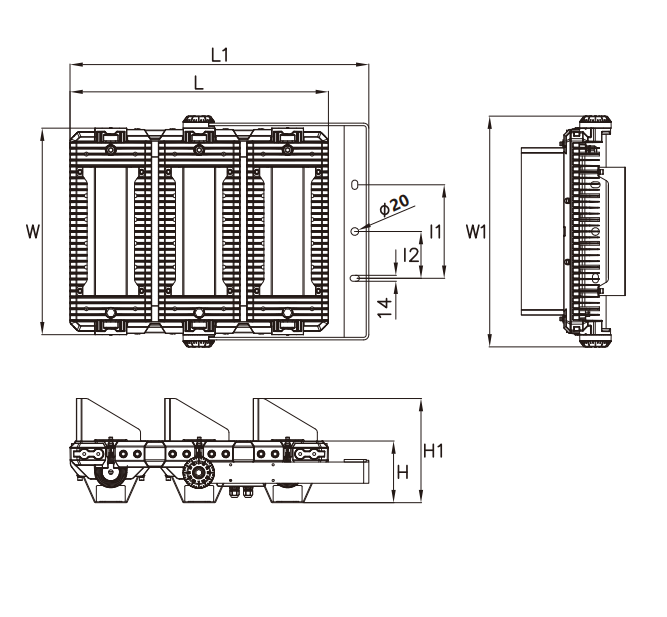

Dimensions
| Power | 240W | 360W | 480W | 720W | 960W |
L1
L | 331mm | 539mm | 539mm | 704mm | 912mm |
| 192mm | 400mm | 400mm | 608mm | 816mm |
W1
W | 543mm | 543mm | 543mm | 543mm | 543mm |
| 486mm | 486mm | 486mm | 486mm | 486mm |
H1
H | 245mm | 245mm | 245mm | 245mm | 245mm |
| 145mm | 145mm | 145mm | 145mm | 145mm |
I1
I2 | 220mm | 220mm | 220mm | 220mm | 220mm |
| 110mm | 110mm | 110mm | 110mm | 110mm |
| G.W | 11kg | 19.5kg | 19.5kg | 29.5kg | 37.5kg |
| Max Force Area | 0.093m² | 0.194m² | 0.194m² | 0.295m² | 0.397m² |
| Installation Torque | 40N.m | 40N.m | 40N.m | 40N.m | 40N.m |
| Package Dimension(mm) | 365*630*200 | 575*630*200 | 575*630*200 | 735*630*200 | 945*630*200 |
Light Distribution Curve
Installation Instruction
Applications
A sustainable lighting solution for stadiums, ports, airports,
industrial areas, and other large outdoor spaces.
FAQ
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light,
explosion proof light, tri-proof light, downlight, and other
lighting products, as well as responsible services and reliable
after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new
order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One
sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for
bulk order, but sometimes depend on the order quantity.
