Technical Specification
| Power | 40W | 50W | 60W | 80W | 100W |
| Luminous Flux | 5600±5% lm | 7000±5% lm | 8400±5% lm | 11200±5% lm | 14000±5% lm |
| LED QTY | 48 pcs | 48 pcs | 48 pcs | 48 pcs | 48 pcs |
| Luminous Efficacy | 150 lm/W | 140 lm/W |
| LED | 5050 |
| Module QTY | 1 Module |
| Power | 120W | 150W | 180W | 200W | 240W |
| Luminous Flux | 16800±5% lm | 21000±5% lm | 25200±5% lm | 28000±5% lm | 33600±5% lm |
| LED QTY | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs |
| Luminous Efficacy | 140 lm/W |
| LED | 5050 |
| Module QTY | 2 Modules |
| Power | 270W | 300W | 350W | 400W | 450W |
| Luminous Flux | 37800±5% lm | 42000±5% lm | 49000±5% lm | 56000±5% lm | 63000±5% lm |
| LED QTY | 144 pcs | 144 pcs | 192 pcs | 192 pcs | 192 pcs |
| Luminous Efficacy | 140 lm/W |
| LED | 5050 |
| Module QTY | 3 Modules | 4 Modules |
| Color | Warm White | Natural White | Cold White | Cold White |
| CCT | 3000±300K | 4000±300K | 5000±300K | 5700±300K |
| CRI | ÿ70 |
| Beam Angle | 85°x155°; 102°x155°; 125°x148°; 23°x105° |
| Main Material | Alloy aluminum, optical PC, stainless steel |
| Service Life | >80000h |
| Storge Tem. | 30°C~+60°C |
| Operating Tem. | -30°C~+50°C |
| Input Frequency | 47~63HZ |
| Input Voltage | -100~240V AC |
Installation
Installation Steps:
1. Use 4 M10 bolts to install the lamp on the bridge as shown in
the picture;
2. Connect the waterproof connectors of the lamps, correctly
connect the power cord to the puncture clamp, and then connect it
to the AC power supply cord (see wiring steps for details);
3. Adjust the lamp to the position according to the actual lighting
needs of the site, and then tighten the bolts;
4. Adjust the dimming line settings according to on-site needs (not
required for non-dimming);
Note: The power supply cable must ensure even distribution of the
three-phase load.
If the product does not contain dimming cable: Please adapt the
cable outer diameter φ7-9mm by

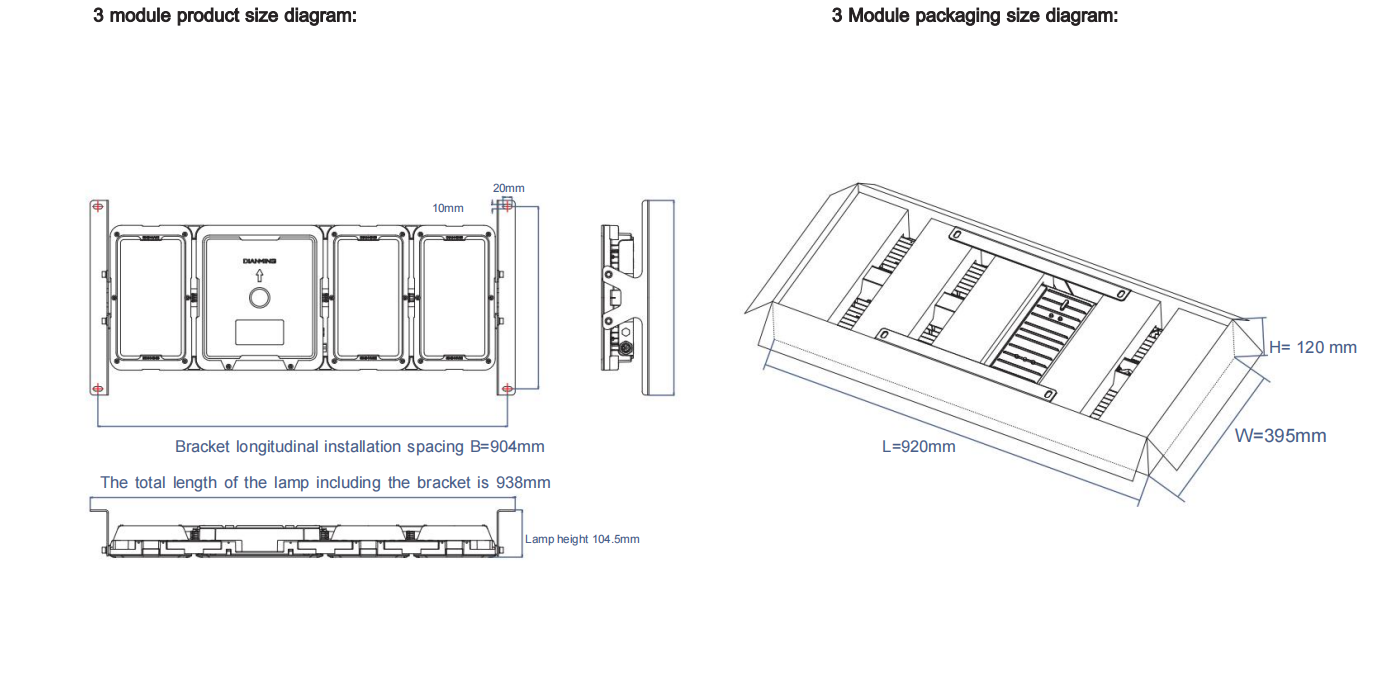

Dimensions
Light Distribution Curve
Packing
| Model | Power | Module QTY | PACKING(LxWxH) | A | B | EPA | Weight | Packaging size
(l x w x h) |
| MFTL-T9-040 | 40W | 1 pc | 558*430*104.5 | 402.5mm | 524mm | 0.2399m² | 8.92kg | 540*395*120(mm) |
| MFTL-T9-050 | 50W | 8.92kg |
| MFTL-T9-060 | 60W | 9.03kg |
| MFTL-T9-080 | 80W | 9.03kg |
| MFTL-T9-100 | 100W | 9.03kg |
| MFTL-T9-120 | 120W | 9.16kg |
| MFTL-T9-150 | 150W | 2 pcs | 748*430*104.5 | 402.5mm | 714mm | 0.3216m² | 11.30kg | 730*395*120(mm) |
| MFTL-T9-180 | 180W | 11.34kg |
| MFTL-T9-200 | 200W | 11.34kg |
| MFTL-T9-240 | 240W | 11.51kg |
| Model | Power | Module QTY | PACKING(LxWxH) | A | B | EPA | Weight | Packaging size
(l x w x h) |
| MFTL-T9-270 | 270W | 3 pcs | 938*430*104.5 | 402.5mm | 904mm | 0.4033m² | 14.30kg | 920*395*120(mm) |
| MFTL-T9-300 | 300W | 14.30kg |
| MFTL-T9-350 | 350W | 4 pcs | 1128*430*104.5 | 402.5mm | 1904mm | 0.4850m² | 16.28kg | 1110*395*120(mm) |
| MFTL-T9-400 | 400W | 16.32kg |
| MFTL-T9-450 | 450W | 16.49kg |
Applications
LED tunnel lights are used to illuminate tunnels, underground
spaces, and areas that require bright, energy-efficient lighting.
They are commonly used in tunnels, underground parking lots,
industrial facilities, sports complexes, outdoor walkways, subway
stations, airports, and mining operations. LED tunnel lights
provide improved visibility, safety, and cost savings compared to
traditional lighting options.
