10W 220-240V 2700K-6000K Kingfisher-2 Shapeable Track Lights Spot Shaping/ Zoom / Projection / Smart Control
Specifications:

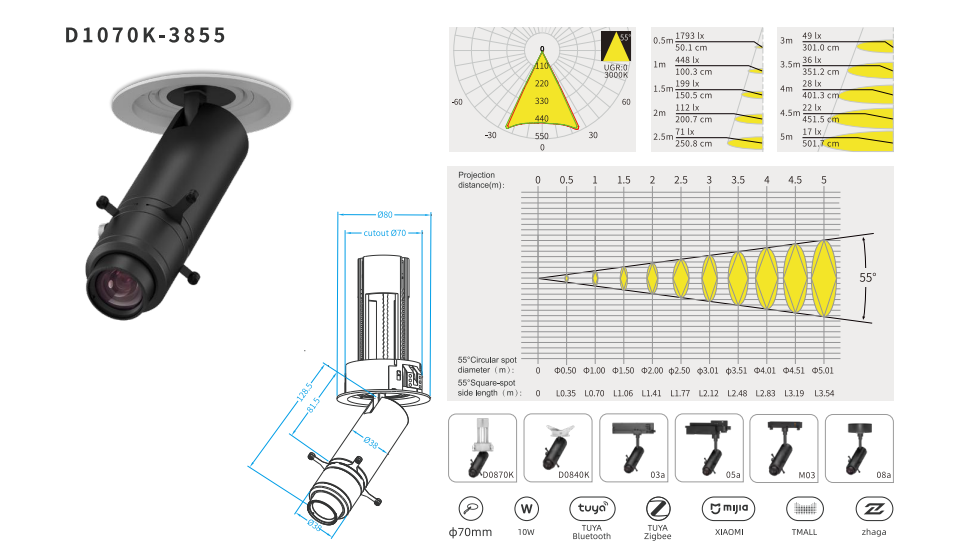

| Model No. | D1070K-3855/3836B |
Power | 10W |
Luminous Flux | 300-350LM |
Ra | ≥97 |
Color Temperature | 2700-6000K |
Zoom Range | 15°~36°/55° |
| DIP CCT Single Lamp Dimming | Non-support |
| Housing Color | Black White |
| Voltage | 220-240V |
| Driver | Tridonic |
Description:
KP series stretching embedded contour spotlight (M1003K) has
equipped with our newly developed 55° fixed-focus wide-angle optical lens and 15°-36° constant zoom
optical lens, compatible with 38mm mini size radiator and 70mm
stretching embedded device. Ultra-small size, excellent
performance.
Key Features:
Ultra-high-definition projection.
Millimeter-level precise spot shaping, uniform illumination.
Fixed-focus/zoom lens can be switched arbitrarily (it truly
integrates fixed-focus optics and zoom optics mutually. Maximize
the optical properties of fixed-focus and zoom lens).
KP series magnetic contour spotlight has the features of flexible
rotation and precise projection, supporting vertical 90° rotation and horizontal 355° rotation.
Dimming and CCT changing via smart control.
Installation:
Adjust the aperture to the appropriate size, and facing the center
of the irradiated object, adjust the sharpness to a reasonable
degree, as shown in Figure 17.
Pull the four diaphragm sheets outward to the maximum, and then
push one by one vertically inward, to ensure that the cut square spot is smaller than the object to be illuminated, and adjust the sharpness of the aperture again until satisfactory, as
shown in Figure 18.
If the shape of the spot does not match the object to be
illuminated, first loosen the hand screw at the red mark, rotate
the blue part of the lens, adjust the edge of the spot to be
parallel to the edge of the object to be illuminated, and finally
tighten the hand screw. As shown in Figure 19, the LOGO projection
direction not matching can also be adjusted to the ideal direction
using this method.
Stretch the diaphragm sheet one by one outward until the spot size
is substantially consistent with the object, as shown in Figure 20.If you are not satisfied with the effect, it is recommended to
repeat the operation according to the above steps to bring up the spot effect you are happy with.

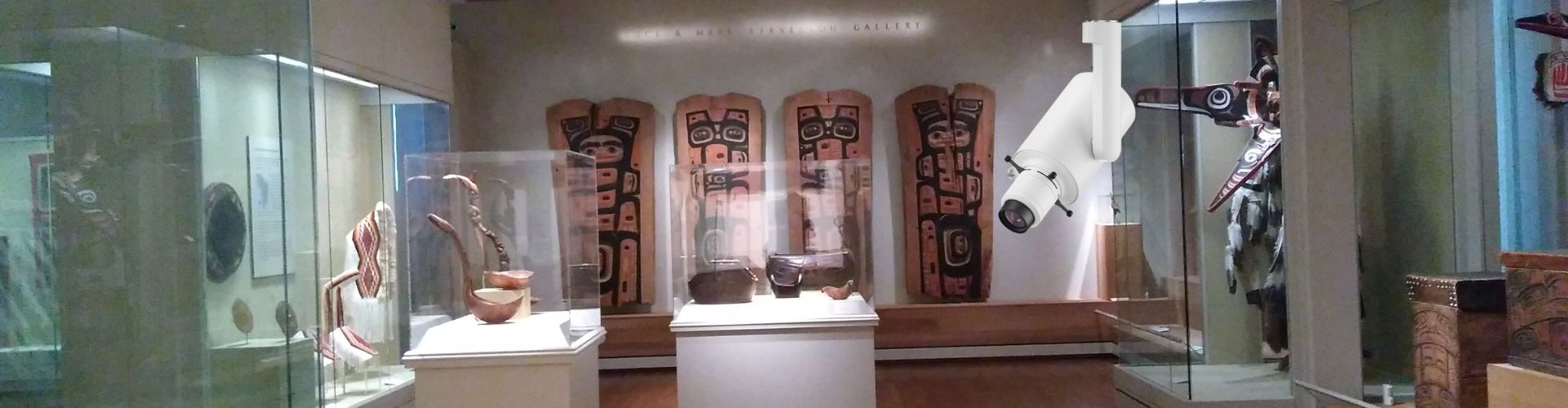

Applications:
Track lights are commonly used in various applications such as
retail stores, art galleries, residential lighting, hospitality
venues, offices and workspaces, and showrooms. They offer
adjustable and focused illumination, making them ideal for
highlighting products, artwork, architectural features, or creating
desired ambiance. The versatility of track lights allows for easy
repositioning and adjustments, providing flexible lighting
solutions for different environments.
