MF-DM200W LMB BEAM SHARPY MOVING HEAD LED STAGE LIGHT
Specifications:
CHANNEL TABLE
CHANNEL | 24 CHANNEL PATTERN |
| 1 | Color |
| 2 | Strobe |
| 3 | Dimming |
| 4 | Gobo |
| 5 | Prism 1 |
| 6 | Prism 2 |
| 7 | Prism 1 Rotate |
| 8 | Prism 2 Rotate |
| 9 | Frost & Colorful |
| 10 | Focus |
| 11 | X |
| 12 | X Fine |
| 13 | Y |
| 14 | Y Fine |
| 15 | XY Speed |
| 16 | Reset |
| 17 | LED Dimming |
| 18 | LED Strobe |
| 19 | LED Red |
| 20 | LED Green |
| 21 | LED Blue |
| 22 | LED Color Macro |
| 23 | LED Scene |
| 24 | LED Scene Speed |
TECHNICAL SPECIFICATION
Voltage | AC200-240v 50/60Hz |
Power of Light Source | 200W |
Color Disk | Each color disk consists of 14 color plates + white light |
Pattern Plate | 10 gobos with 3 glasses gobos+ white |
Control Mode | DMX512/ master-slave/Automatic |
IP | 20 |
Protection | Overheat Protection |
540° translation, 270° tilt |
Common Fault:
According to some common faults, the corresponding solutions are
put forward.Any unsolvable problems should be dealt with by
professionals.Disconnect the light fixture before maintaining it.
1. Light bulb is not on
Check that the voltage that matches the light fixture is installed;
Check whether the lamp supply power connection or control switch is
in bad contact;
Check if the power supply is insufficient;
Check that the DMX512 controller is sending instructions.
2. The light fixture does not accept control from the console after
normal reset
Check luminaire digital start address value and function options
are correct;
Check whether the connection of communication control line is
correct, the communication line is too long or has been
interrupted;
Check whether the control equipment is invalid, check whether the
serial access signal amplifier is invalid;
Check whether the communication line is too long or other equipment
interferes with each other;
Optimize wiring, shorten the length of control signal lines, high
voltage and low voltage lines separate wiringAdd signal amplifiers;
Signal line using high-quality shielded twisted pair wire;
Connect the signal terminal resistor (120 ohm) at the end of the
lamp.
3. Luminaire does not start
Check that the power supply parameters are consistent with the
lamp;
Check the poor contact caused by extrusion deformation, vibration
and moisture of internal parts in the long distance transportation
process or fall off.Please check whether the internal wire integration connector of the
lamp has fallen off or loosened.
Check whether the electronic components of the lamp (such as
electronic transformer, PCB board, motor control board, etc.) are
loose, short circuit and burned out.
4. When working, the action of the X or Y axis of the lamp is not
normal
Follow the previous step to check them one by one;
Check whether the transmission belt corresponding to the X and Y
axis directions in the lamp falls off and breaks;
Check whether the data feedback receiver (optocoupler)
corresponding to the X and Y directions in the lamp is damaged;
Restart the machine and reset it once.
Setup:
Options | Instructions |
Running Mode | DMX | Slave state: Receives DMX signals from the console or mainframe |
Bootstrapping | Host state: Self-actuated and sends DMX signal to slave |
| Voice Control |
DMX Address | 1-512 | Press "OK" to enter editing mode.At this point, the hundreds digit is selected, and press the "up" and "down" keys to change the address code.Press the "OK" key againto select the tens edit.Press "OK" once more to select the ones edit.Press again to exit the editing state |
Motor Reset | off | |
| on | Light fixture reset |
Channel mode | 24CH | 24 channel mode |
Language | Chinese | Set to the Chinese interface |
| English | Set to the English interface |
Screen Flip | off | Front display |
| on | Screen reverse display |
X Inversion | off | |
| on | |
Y-reverse | off | |
| on | |
| XY Swap | off | |
| on | Channel for switching XY axes (including trims) |
XY Encoder | on | Use an encoder (optocoupler) to judge out of step and automatically correct the position |
| off | Correct the position without using an encoder (optocoupler) |
DMX Signal | Hold | Continue running in its original state |
Clear Zero | Turn the motor back and stop running |
The color wheel changes linearly | on | The color wheel changes linearly |
| off | Color wheel nonlinear change, half color change |
Restore Default Settings | | When you see the confirmation dialog after pressing "OK", press "OK" again to restore the default Settings |
Installation:
Light fixtures can be placed horizontally, slanted, and hung upside
down. Be sure to pay attention to the installation method when hanging diagonally and
upside down.
As shown in Figure 2, before positioning the lamp, it is necessary
to ensure the stability of the installation site. When installing the reverse hanging, it is
necessary to ensure that the lamp does not fall down on the support frame. It is necessary to
use the safety rope through the support frame and the lamp handle for auxiliary hanging to
ensure safety. Prevent the
luminaire from falling and sliding.
When installing and debugging the lamps, it is forbidden for
pedestrians to pass under them. Regularly check whether the safety rope is worn and whether
the hook screws are loose.
Our company does not assume any responsibility for all consequences
caused by the fall of the lamp due to the unstable installation of the hanging.
CONTROL PANEL
The following takes "Modify DMX address code" as an example to
describe the use of keys:
1. If the current is not the main interface, press the "left" key
(one or more times) to return to
the main interface
2. In the home screen, press the "up" key or "down" key to select
the "Settings" button
3. Press the "OK" key to enter the "Settings" interface
4. In the "Settings" interface, press the "up" key or "down" key to
select "DMX address"
5. Press the "OK" key to enter the editing state
6. Press the "up" key or "down" key to modify the DMX address code
7. Press the "OK" key to exit the editing state
Applications:
Moving head lights are versatile lighting fixtures used in stage
productions, concerts, nightclubs, and other entertainment events.
They consist of motorized heads that can move horizontally and
vertically to direct light beams. They are used to illuminate
performers, create dynamic lighting effects, and enhance visual
displays.

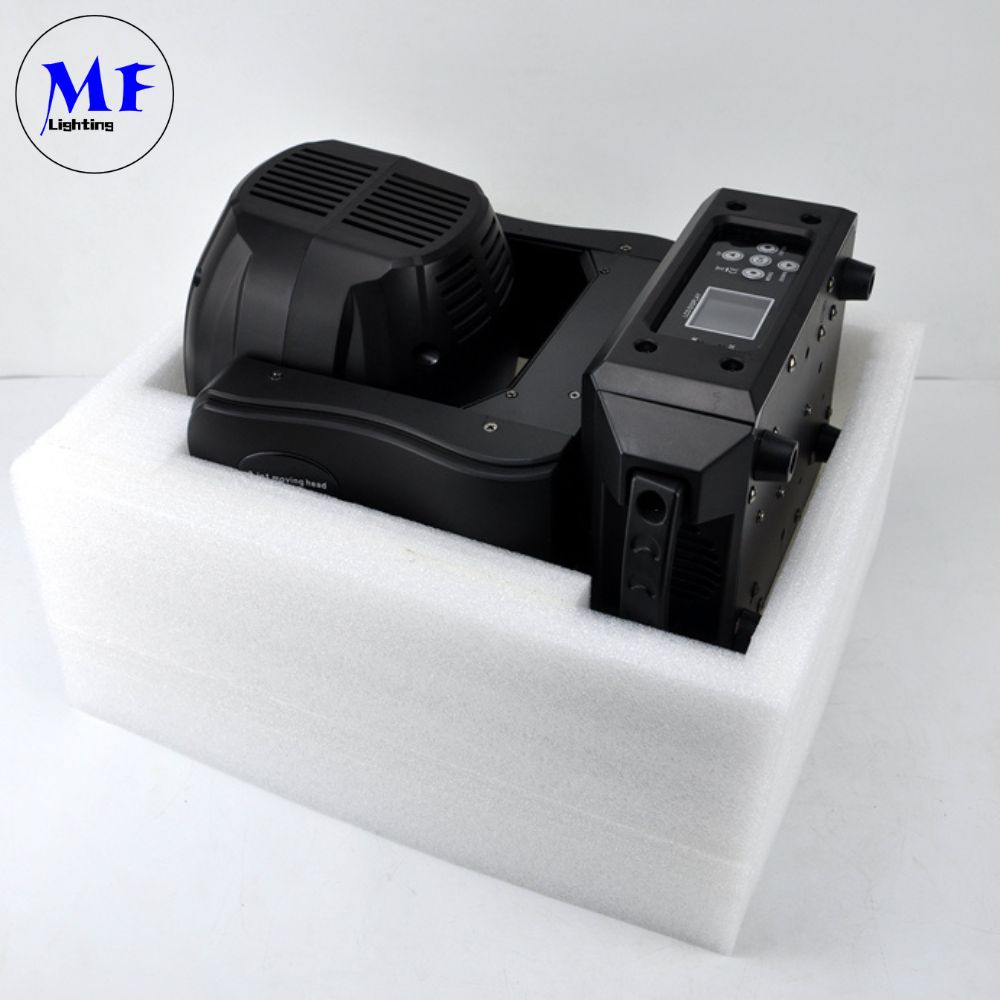

Packing:
Product Name | Quantity |
| 1 PCS |
Power-line | 1 BASE |
| User Manual | 1 PCS |
