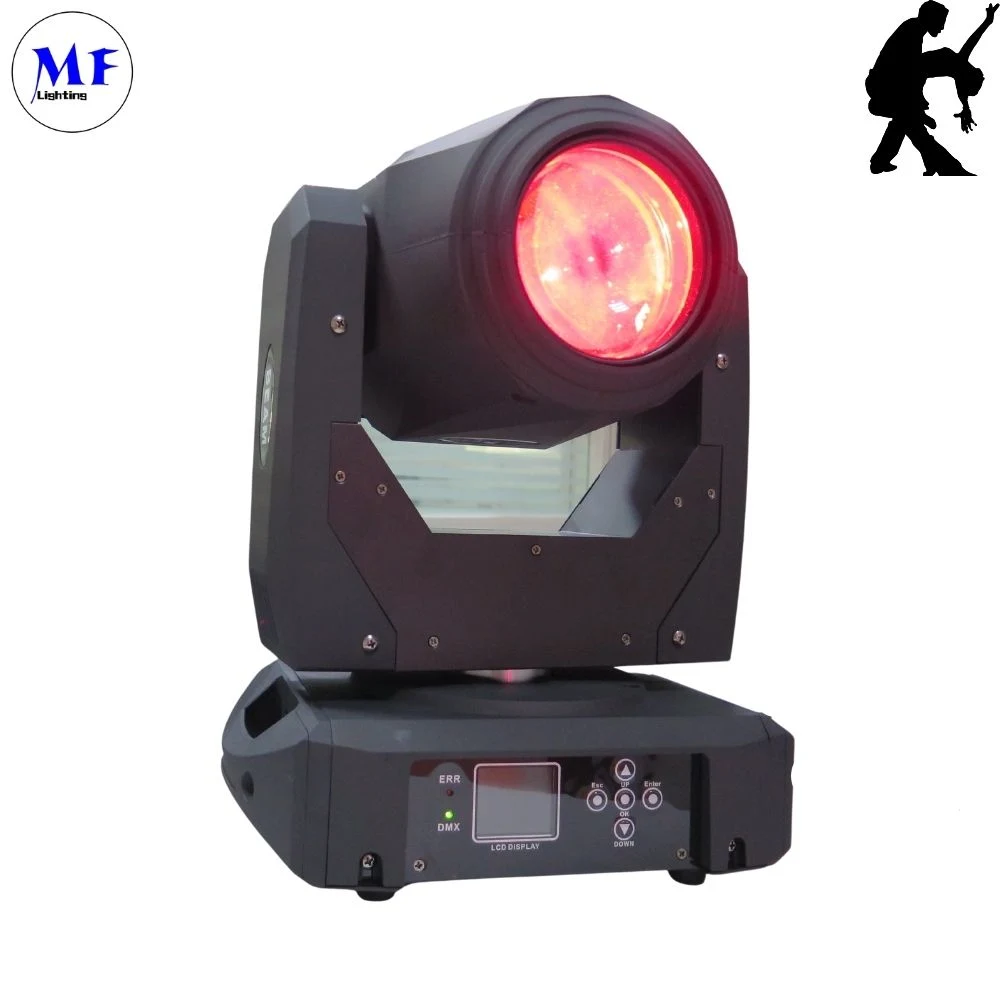

150W 8colors+White DMX-512 120W 540° Pan LED Effect Laser Dancing Moving Head Stage LED Stage Lighting

Factory price 8colors+white DMX-512 120W 540° Pan LED Effect Laser Dancing Moving Head Stage LED Stage Lighting380W Moving Head Lights Beam Stage Light

Input Voltage: AC100/240V AC

light source:120W lamp power consumption:150W

Beam angle: 13.5°

Control: DMX-512 20 channel .

Color wheel: 8colors + white,

1 fixed Gobo wheel: 15static gobos + white, 360°rotated,

2 glasses gobo Effect wheel: 8-facet prism (adjustable rotating speed and direction)

Shutter: 0-16Hz Dimmer: Variable electronic dimmer (0-100%)

Focus: Variable motorized focus Master/Slave activated by sound at pre-programmed function

Control mode: Auto, sound active ,DMX512

Pan :540°/tilt:270°.

Pan/Tilt bit: 8-16bit Variable electronic strobe. Fan cooled.

System Power:150W

Light Power :120W

16/20 channel DMX-512 .

Pan :540°/tilt:270°.

Variable electronic strobe.

Variable electronic dimmer (0-100%).

Beam angle:13.5°

LCD display
Reset to factory settings option.
Pan/tilt inverts option.
Fan cooled.

If you use a controller with a 5 pin DMX output connector. You will need to use a 5pin to 3 pin as apter

Model No: DMX5M. Or DMX 5F
The chart below details a proper cable conversion:
Description of operation panel

Master/Slave fixture linking

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female)3pin connector of the first fixture.

2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a(male) 3 pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on

Stage moving head lights are widely used in stage performances and performances. Here are some of their application scenarios:

Stage shows: Stage moving headlights are widely used for concerts, theatrical performances, dance performances and other stage shows. They can create a variety of lighting effects for the stage by moving, rotating and adjusting the Angle of the beam, enhancing visual impact and artistic expression.

Concerts and music festivals: In large concerts and music festivals, stage moving headlights are used to illuminate artists, bands and various parts of the stage. They can enhance the visual effects of musical performances by creating a variety of dynamics and atmospheres through color changes, beam effects and movement.

Theatre and stage plays: In theatre and stage plays, stage moving headlights are used to illuminate actors, stage sets and props. They can create different lighting scenes that highlight the emotion and drama of the performance through changes in light and projection effects.

Events and exhibitions: Stage mobile headlights are also widely used in various events and exhibitions, such as corporate events, product launches and art exhibitions. They can create memorable visuals for the scene, capture the audience's attention and enhance the atmosphere of the event.

Film and television production: In film and television production, stage moving headlights are used to illuminate sound stages, set scenes, and highlight actors. They can create lighting effects suitable for different scenes and plots through various lighting effects and dynamic changes.

Flexible, programmable and versatile, stage mobile head lamps can be precisely controlled and adjusted according to specific needs. They provide a rich variety of lighting effects for stage performances and performances, helping to create a memorable visual experience.

Voltage AC100-240v 50/60Hz

Item Code MF-2R120W

Color wheel 14colors+open

Gobo wheel 15 fixed gobos

Max temperature 104°F(40°C)

Data input/output 3pin XLR-connection,anode socket

Outside size 35CMx32CMx46.1CM

N.W 8kg

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Tri-proof Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Tri-proof Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Tri-proof Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Tri-proof Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
