100W 150W 180W 240W 450W LED Tunnel Light 5 Years Warranty Module
Light LED Module Floodlight Flood Light
| Power | 40W | 50W | 60W | 80W | 100W |
| Luminous Flux | 5600±5% lm | 7000±5% lm | 8400±5% lm | 11200±5% lm | 14000±5% lm |
| LED Quantity | 48 pcs | 48 pcs | 48 pcs | 48 pcs | 48 pcs |
| Luminous Efficacy | 150 Im/W | 140 Im/W |
| LED | 5050 |
| Module Quantity | 1 module |
| Power | 120W | 150W | 180W | 200W | 240W |
| Luminous flux | 16800±5% lm | 21000±5% lm | 25200±5% lm | 28000±5% lm | 33600±5% lm |
| LED quantity | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs |
| Luminous Efficacy | 140 lm/W | 140 lm/W |
| LED | 5050 | 5050 |
| Module Quantity | 1 module | 2 modules |
| Power | 120W | 150W | 180W | 200W | 240W |
| Luminous flux | 16800±5% lm | 21000±5% lm | 25200±5% lm | 28000±5% lm | 33600±5% lm |
| LED quantity | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs |
| Luminous Efficacy | 140 lm/W | 140 lm/W |
| LED | 5050 | 5050 |
| Module Quantity | 1 module | 2 modules |
| color | Warm White | Natural White | Cold white | Cold white |
| color temperature | 3000±300K | 4000±300K | 5000±300K | 5700±300K |
| color rendering i ndex | y70 |
| Beam angle | 85x155°;102x155°;125x148°;23°x105° |
| Main material | Alloy aluminum, optical PC, stainless steel |
| Service life | >80000h |
| Storage temperature | -30ºC~+60ºC |
| Operating temperature | -30°ºC~+50°ºC |
| input frequency | 47~63HZ |
| Input voltage | -100~240V AC |
| LED brand | Lumi-leds | Driving power | 2W |
| LED package size | 5.0x5.0x0.70 mm | Color rendering index | >70 |
| Lamp bead light angle | 120° | Lamp bead light effect | 180-190lm/W |
1. Perfect module design, using 5mm tempered glass, waterproof
level meets IP67, allows to combine 1~4 modules according to actual
needs of projects
2. Professional secondary optical design, specially designed for
solar street light, maximizing the balance of individual
parameters, while minimizing the color reproduction caused by
secondary optics.
3.Stainless steel shell is optional to prevent galvanic corrosion
in extreme environments
4. All connectors are tool-free waterproof plug-in design.
5.Reinforced insulation design, supporting CLASS I, CLASS II.
Equipped with an independent power supply chamber, supports
independent lightning protection requirements;
6. High grade compatibility zhaga interface.
7. Installation is simple and convenient. Two mounting brackets are
available. The ceiling bracket and the sidemounted bracket can be
selected according to project requirements;

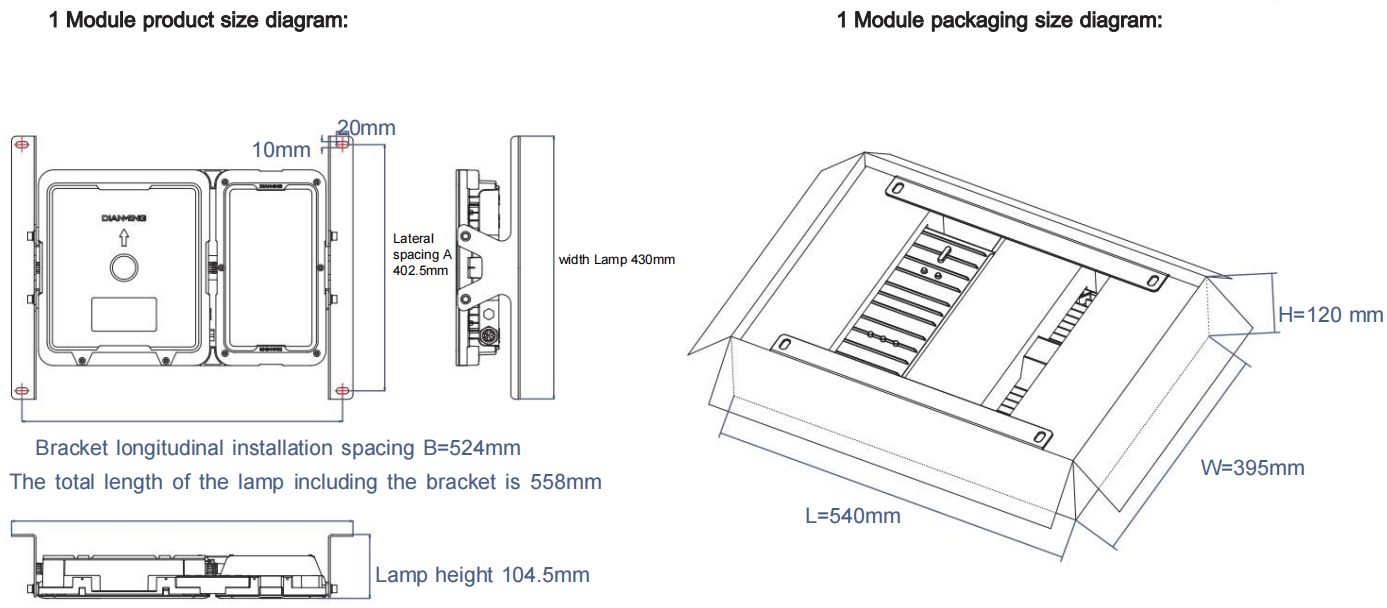

| Model | Power | Module
Qty | PACKING(LxWxH) | A | B | EPA | Weight | Packaging size
(lx w x h) |
| MFTL-T9-040 | 40W | 1pc | 558*430*104.5 | 402.5mm | 524mm | 0.2399m² | 8.92kg | 540*395*120(mm) |
| MFTL-T9-050 | 50W | 8.92kg |
| MFTL-T9-060 | 60W | 9.03kg |
| MFTL-T9-080 | 80W | 9.03kg |
| MFTL-T9-100 | 100W | 9.03kg |
| MFTL-T9-120 | 120W | 9.16kg |
| MFTL-T9-150 | 150W | 2pcs | 748*430*104.5 | 402.5mm | 714mm | 0.3216m² | 11.30kg | 730*395*120(mm) |
| MFTL-T9-180 | 180W | 11.34kg |
| MFTL-T9-200 | 200W | 11.34kg |
| MFTL-T9-240 | 240W | 11.51kg |
Intallation
Installation Steps:
1. Use 4 M10 bolts to install the lamp on the bridge as shown in
the picture;
2. Connect the waterproof connectors of the lamps, correctly
connect the power cord to the puncture clamp, and then connect it
to the AC power supply
cord (see wiring steps for details);
3. Adjust the lamp to the position according to the actual lighting
needs of the site, and then tighten the bolts;
4. Adjust the dimming line settings according to on-site needs (not
required for non-dimming);
Note: The power supply cable must ensure even distribution of the
three-phase load.
If the product does not contain dimming cable: Please adapt the
cable outer diameter φ7-9mm by yourself, strip the wire 15mm, and
expose 5mm copper;
Applications
LED Tunnel Light finds wide application in various tunnel
environments. Its advanced features and benefits make it a
preferred choice for tunnel lighting solutions.
One primary application is in road tunnels. LED Tunnel Light
provides bright and uniform illumination, ensuring clear visibility
for drivers. This enhances safety by minimizing the risk of
accidents and improving overall traffic flow. The long lifespan of
LEDs reduces maintenance requirements, making it suitable for
tunnels with high traffic volumes.
Another application is in pedestrian tunnels. LED Tunnel Light
creates a well-lit environment, offering a sense of security and
comfort to pedestrians. The high brightness ensures clear
visibility, reducing the chances of slips, trips, and falls.
Additionally, the energy efficiency of LED technology contributes
to sustainable lighting solutions for pedestrian tunnels.
Furthermore, LED Tunnel Light is utilized in railway and metro
tunnels. It provides consistent and reliable lighting for train
operators, enabling them to navigate through the tunnels safely.
The durability of LED fixtures ensures continuous operation, even
in demanding railway environments.
LED Tunnel Light also finds application in underground mining
tunnels. It offers high visibility in these challenging
environments, enhancing safety for miners. The resistance to water,
dust, and vibrations makes it suitable for the rugged conditions
typically encountered in mining operations.
