26W Dali Dimmable Offices Classrooms Malls Hotel Lobbies Back of house Restaurants Bus Stations Medical Facility LED Flat Panel Drop Ceiling Troffer light
| Model NO. | MF-26W-22-40K | MF-35W-22-40K | MF-35W-22-40K | MF-50W-22-40K |
| Watt | 26W | 35W | 35W | 50W |
| Size | 595*595 | 1195*595 |
| N.W | 2.0 kg/pc | 4.2 kg/pc |
| Input Voltage | AC200-240V, 50Hz |
| Lumen | 130lm/W |
| LED | SMD2835 |
| CCT | Warm White/Pure White/Cool White |
| Beam Angle | 120° |
| CRI | >80 |
| THD | <20% |
| PF | >0.9 |
| Material | Plastic+PC |
| Working Temp. | -20ºC-+45ºC |
| Storage Temp. | -25ºC-+65ºC |
| IP Grade | IP40 |
| Lifespan | 30,000H |
Features & Benefits:
Applications: Offices / Classrooms / Malls / Hotel / Lobbies / Back of house / Restaurants / Bus Stations / Medical Facility
CE & RoHS certificate
AC 200-240V
LED Source: SMD2835, CRI>80, LM80 report
PF>0.90, THD <20 %
Plastic frame + PC
Ideal replacement for traditional troffer with over 80% energy saving!
3 years warranty
Input Voltage: AC 200-240V, 50HzTHD: < 20%
PF:>0.9
Color Temperature: Warm White (3000-3500K)Pure White(4000-4500K)Cool White(6000-6500K)Color
Rendering Index: CRI>80Beam Angle: 120
Material:Plastic+PC
Working Temperature: -20 C ~+45 C Storage
Temperature: -25 C ~+65 CIP Grade:IP40
Working Life-span: 30,000H

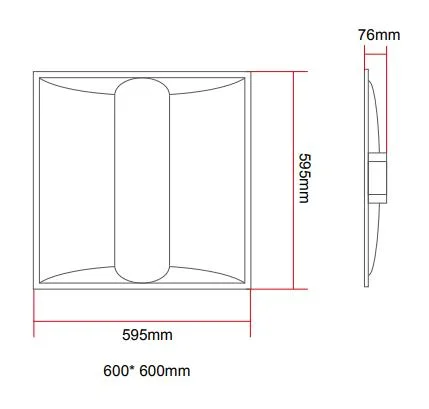

Dimension:
Fire-resistance
The troffer frame is mainly composed by plastic material mixed with other fireproof material,which can prevent or block the flame from spreading. The test proves that the fireproof performance is superior, completely unable to burn.
Installation Instructions

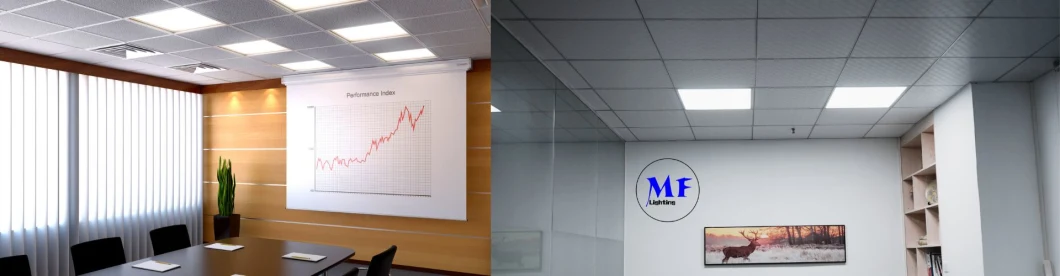

In schools and educational institutions, LED panel lights are extensively used in classrooms, libraries, and conference rooms. They offer bright and even illumination, helping to enhance students' focus and learning efficiency.
The hotel and restaurant industry also benefits from the widespread use of LED panel lights. These lights are commonly used in hotel rooms, lobbies, restaurants, and conference rooms. They provide high-quality lighting, creating a comfortable, warm, and modern atmosphere.
Retail stores utilize LED panel lights to illuminate display areas, shelves, and checkout counters. These lights are designed to highlight product details and provide visual appeal, helping store owners attract customers and boost sales.
LED panel lights are widely employed in medical and healthcare facilities. With their high brightness and adjustable color temperature, they offer clear and bright illumination, facilitating accurate diagnosis and surgical procedures for medical professionals.
In exhibition halls and museums, LED panel lights are used to meet the lighting requirements. They provide uniform and precise lighting, highlighting the details and colors of exhibits while reducing UV radiation and heat damage.
