    20W IP40 White Color Recessed Anti Glare Waterproof Round Type COB Ceiling Spotlight LED Down Light For Indoor

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF-TH201-XW
    Certification : CE, RoHS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 10, 000PCS/Months
    Delivery Time : 1 week for sample order; 2 weeks for bulk order.
    • Product Details
    • Company Profile

    20W IP40 White Color Recessed Anti Glare Waterproof Round Type COB Ceiling Spotlight LED Down Light For Indoor

    20W IP40 3000K 4500K 6000K LED Down Light for Engineering/Home Furnishing


    Technical Specification


    Electrical Data:

    Nominal Wattage
    7W / 12W / 20W
    Nominal Voltage100-240V
    Mains Frequency50-60Hz
    Nominal Current350,000mA
    Power Factor λ0.9
    Protection ClassII
    Operating Mode

    Electronic Control Gear (ECG)


    Application & Mounting:


    Ambient Temperature Range-20 °C~ 40°C
    Type of ConnectionTerminal, 2-pin
    Type of ProtectionIP40
    DimmableNo
    Mounting TypeRecessed
    Mounting LocationCeiling
    Application EnvironmentIndoor
    LED module ReplaceableNot replaceable
    Mounting Diameter
    7W,55mm/60mm, 12W 75mm/80mm,20W 95mm/100mm
    Lifespan L70/B50 at 25 °C30000 h1)
    Number of Switching Cycles15000

    Material & Color:


    Product ColorWhite
    Housing ColorGrey
    Body MaterialAluminum
    Mercury Content0.0mg

    Product Features


    Diameter of required ceiling cut-out: 55mm, 75mm, 95mm, 60mm, 80mm, 100mm

    − Type of protection, back side: IP40

    − Type of protection, front side: IP44
    − High luminous efficacy

    − Direct replacement for compact fluorescent lamp downlights

    − Energy savings up to 60 % (compared to luminaires that use CFL lamps)

    − Very homogenous light

    − Functional design

    − Easy installation with fast connection

    − 3 years guarantee


    Photometry


    Luminous Flux
    7W 700lm / 12W 1200lm/ 20W 2000lm
    Luminous Efficacy100 lm/W
    Color Temperature3000K 4000K 6000K
    Light Color (designation)Warm White
    CRI≥80
    Beam Angle
    8°/15°/24°/36°/60°


    Packing


    Product CodePacking UnitDimensions(LxWxH)G.WVolume
    4058075800342Folding Box 1175 mm x 175 mm x 105 mm730.00g3.22 dm³
    4058075800359Shipping Box 18545 mm x 370 mm x 345 mm14000.00g69.57 dm³

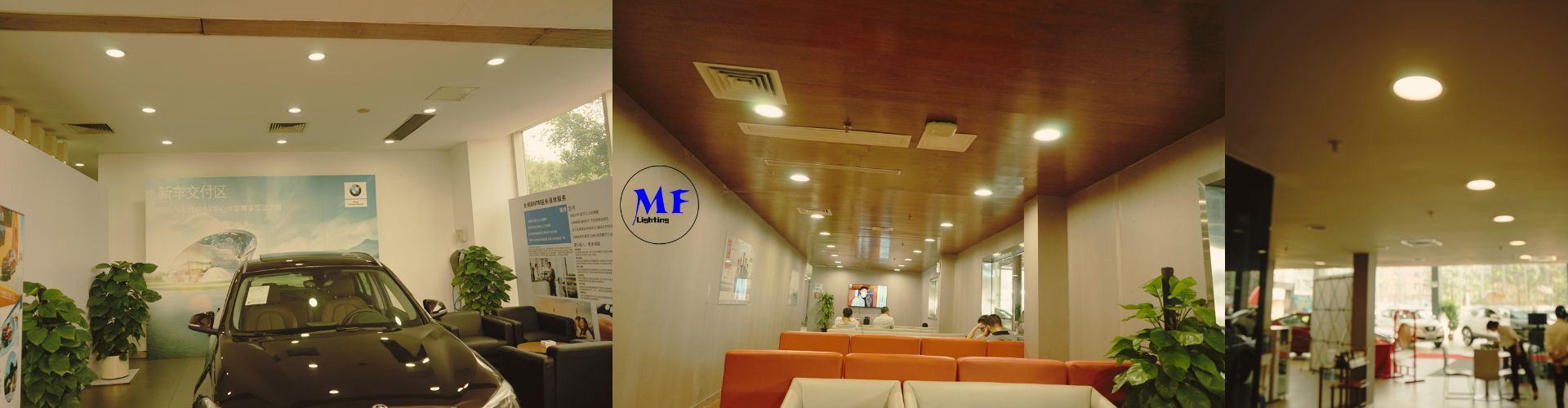

    Applications


    General Lighting: Downlights can be used for general illumination in various areas such as living rooms, bedrooms, kitchens, and hallways. They provide overall brightness and can be installed in a grid pattern to evenly distribute light throughout the space.


    Task Lighting: Downlights are often used for task lighting purposes, such as in kitchens above countertops or islands, in bathrooms around mirrors, or above workspaces in offices. They provide focused, directed light to aid in specific activities.


    Accent Lighting: Downlights can be used to highlight specific objects or architectural features in a room. For example, they can be used to illuminate artwork, sculptures, or decorative elements on a wall, creating a visually appealing focal point.


    Retail and Commercial Spaces: Downlights are commonly used in retail stores, restaurants, and other commercial spaces to create a bright and inviting atmosphere. They help showcase products and create visual interest in displays or merchandise areas.


    Outdoor Lighting: Downlights can also be used for outdoor applications, such as in covered patios, porches, or entryways. They provide functional lighting and enhance the safety and security of the area.



    FAQ


    Q1: What do you sell?
    A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

    Q2: Is it OK to print my logo on led light product?
    A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q3: How to deal with the faulty?
    A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

    Q4: Can I have a sample order for led light?
    A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

    Q5: How long time to ship the goods if place an order?
    A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
