    Beam Angle Optional 3-Year Warranty 7W 12W 20W Ceiling Recessed Surface Mounted IP40 LED Spot Down Light

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF-TH201-XW
    Certification : CE, RoHS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 10, 000PCS/Months
    Delivery Time : 1 week for sample order; 2 weeks for bulk order.
    • Product Details
    • Company Profile

    Beam Angle Optional 3-Year Warranty 7W 12W 20W Ceiling Recessed Surface Mounted IP40 LED Spot Down Light

    1-8W IP20 MR16 GU10 360° Rotatable LED Down Light for Office/School/Hotel


    Technical Specification


    Electrical Data:

    Nominal Wattage
    7W / 12W / 20W
    Nominal Voltage100-240V
    Mains Frequency50-60Hz
    Nominal Current350,000mA
    Power Factor λ0.9
    Protection ClassII
    Operating Mode

    Electronic Control Gear (ECG)


    Application & Mounting:


    Ambient Temperature Range-20 °C~ 40°C
    Type of ConnectionTerminal, 2-pin
    Type of ProtectionIP40
    DimmableNo
    Mounting TypeRecessed
    Mounting LocationCeiling
    Application EnvironmentIndoor
    LED module ReplaceableNot replaceable
    Mounting Diameter
    7W,55mm/60mm, 12W 75mm/80mm,20W 95mm/100mm
    Lifespan L70/B50 at 25 °C30000 h1)
    Number of Switching Cycles15000

    Material & Color:


    Product ColorWhite
    Housing ColorGrey
    Body MaterialAluminum
    Mercury Content0.0mg

    Description


    Ming Feng Lighting's LED Down Light offers customizable lighting options for a variety of settings. This down light can provide ample illumination while remaining energy efficient.

    The beam angle is
    15°/24°/36°/55° optional, allowing users to direct the light where it is needed most. The down light features an Epistar COB brand chip, ensuring high-quality performance and longevity.

    With an IP40 rating, this down light is suitable for indoor use and can provide versatile lighting options with its adjustable color temperature. Users can choose from three different color temperature options, making it easy to create the desired ambiance in any room.

    The down light is also dimmable, allowing for even greater control over the lighting level and creating a comfortable and inviting atmosphere. Overall, Ming Feng Lighting's
    LED Down Light provides a reliable and customizable lighting solution for a variety of indoor settings.



    Photometry


    Luminous Flux
    7W 700lm / 12W 1200lm/ 20W 2000lm
    Luminous Efficacy100 lm/W
    Color Temperature3000K 4000K 6000K
    Light Color (designation)Warm White
    CRI≥80

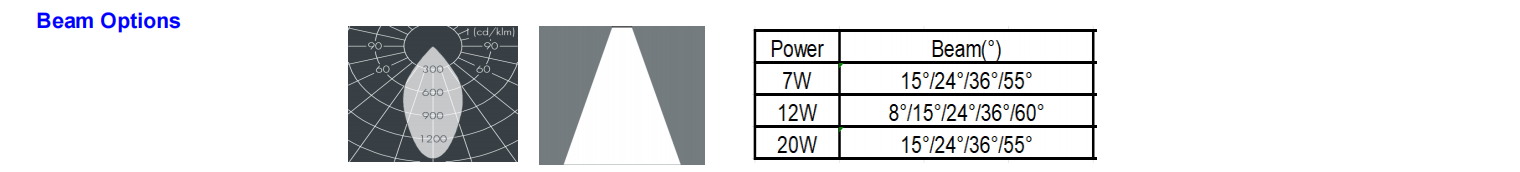

    Beam Angle
    8°/15°/24°/36°/60°


    Packing


    Product CodePacking UnitDimensions(LxWxH)G.WVolume
    4058075800342Folding Box 1175 mm x 175 mm x 105 mm730.00g3.22 dm³
    4058075800359Shipping Box 18545 mm x 370 mm x 345 mm14000.00g69.57 dm³


    Applications


    Downlights are commonly used for focused lighting in residential homes, commercial buildings, hospitality industry, art galleries, museums, outdoor lighting, and theater/entertainment venues.



    FAQ


    Q1: What do you sell?
    A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

    Q2: Is it OK to print my logo on led light product?
    A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q3: How to deal with the faulty?
    A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

    Q4: Can I have a sample order for led light?
    A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

    Q5: How long time to ship the goods if place an order?
    A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
