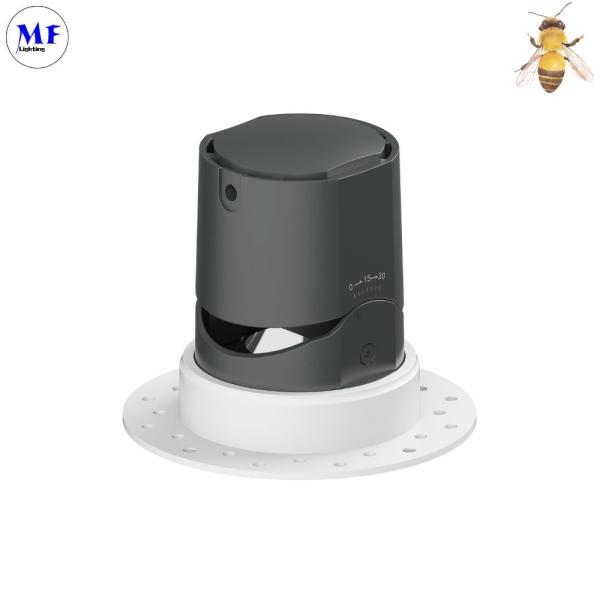

LED Ceiling Grill Down Light Aluminum Housing Concealed Spotlight
Interior Lighting OEM ODM 5W 10W 18W 2inch 3inch 4inch
High luminous efficacy
Direct replacement for compact fluorescent lamp downlights
Energy savings up to 60 %
(compared to luminaires that use CFL lamps)
Very homogenous light
Functional design
Easy installation with fast connection
3 years guarantee
Diameter of required ceiling
cut-out:55mm,75mm,95mm,60mm,80mm,100mm
Type of protection, back side: IP40
Type of protection, front side: IP44
Reflector Color
Electrical Data:
| Nominal wattage | 5W / 10W / 18W |
| Nominal voltage | 100.…240 v |
| Mains frequency | 50…60 Hz |
| Nominal current | 350.000 mA |
| Power factor λ | 0.90 |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
Application & Mounting:
| Ambient temperature range | -20…+40 ºC |
| Type of connection | Terminal,2-pin |
| Type of protection | IP40 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | Refer to Dimensions & Weight |
| LED module replaceable | Not replaceable |
Material & Color:
| Product color(Ring) | White |
| Housing color | Grey |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Diameter of required ceiling cut-out: 55mm, 75mm, 95mm, 60mm, 80mm,
100mm
− Type of protection, back side: IP40
− Type of protection, front side: IP44
| Luminous flux | 5W 500lm / 10W 1000lm/ 18W 1800lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 K 4500K 6000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Beam angle | 8°/15°/24°/36°/60° |
Packing
| Product Code | Packing Unit | Dimensions(LxWxH) | G.W | Volume |
| 4058075800342 | Folding Box 1 | 175 mm x 175 mm x 105 mm | 730.00g | 3.22 dm³ |
|
| 4058075800359 | Shipping Box 18 | 545 mm x 370 mm x 345 mm | 14000.00g | 69.57 dm³ |
Downlights are commonly used for focused lighting in residential
homes, commercial buildings, hospitality industry, art galleries,
museums, outdoor lighting, and theater/entertainment venues.
Company Profile
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer
with its own factory. Our company specializes in the design,
production, and distribution of high-quality LED lighting products.
With years of experience in the industry, we have established a
reputation for excellence and innovation in LED lighting
technology. Our team of skilled professionals is dedicated to
providing customers with the best LED lighting products and
services. At Ming Feng Lighting Co., Ltd., we pride ourselves on
our commitment to quality and customer satisfaction. Whether you
are looking for residential or commercial LED lighting solutions,
we have the expertise and resources to meet your needs.
FAQ
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light,
explosion proof light, tri-proof light, downlight, and other
lighting products, as well as responsible services and reliable
after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new
order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One
sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for
bulk order, but sometimes depend on the order quantity.
