Recessed Downlight Interior Lighting LED Ceiling Grill Down Light
with Reflector 7W 12W 20W 2inch 3inch 4inch IP40
High luminous efficacy
Direct replacement for compact fluorescent lamp downlights
Energy savings up to 60 %
(compared to luminaires that use CFL lamps)
Very homogenous light
Functional design
Easy installation with fast connection
3 years guarantee
Diameter of required ceiling
cut-out:55mm,75mm,95mm,60mm,80mm,100mmType of protection, back side: IP40
Type of protection, front side: IP44
Three-jaw Clip Specialized Design Apperance
Strong Heat Dissipation Anti-glare Reflector
Reflector Color
Recessed Mounted
Electrical data
| Nominal wattage | 7W / 12W / 20W |
| Nominal voltage | 100.…240 v |
| Mains frequency | 50…60 Hz |
| Nominal current | 350.000 mA |
| Power factor λ | 0.90 |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 7W 700lm / 12W 1200lm/ 20W 2000lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 K 4500K 6000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Beam angle | 8°/15°/24°/36°/60° |
Dimensions & Weight
Materials & Colors
| Product color(Ring) | White |
| Housing color | Grey |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 ºC |
| Type of connection | Terminal,2-pin |
| Type of protection | IP40 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 10W 75mm, 12W 90mm,15W 100mm, 20W 115mm, 30W 145mm, 40W 170m |
| LED module replaceable | Not replaceable |
Lifespan
| Lifespan L70/B50 at 25ºC | 30000 hr |
| Number of switching cycle | 15000 |
Beam Angle
The mentioned product code describes the smallest quantity unit
which can be ordered. One shipping unit can contain one or more
single products.
When placing an order, for the quantity please enter single or
multiples of a shipping unit.
LED downlights are versatile lighting fixtures that find wide
application in various settings.With their sleek design and
energy-efficient performance, LED downlights are commonly used in
residential, commercial, and hospitality environments.
In residential settings, LED downlights are often installed in
kitchens, living rooms, and bedrooms to provide ambient or task
lighting. They offer a modern and stylish lighting solution while
consuming less energy compared to traditional lighting options. LED
downlights can create a warm and inviting atmosphere, enhancing the
overall aesthetic appeal of the space.
In commercial spaces such as offices, retail stores, and showrooms,
LED downlights are utilized to illuminate the area effectively.
These downlights offer a focused and uniform light distribution,
making them ideal for highlighting specific areas or products. LED
technology ensures long-lasting performance, reducing maintenance
costs and providing consistent lighting quality.
Hospitality venues, including hotels, restaurants, and bars,
benefit from LED downlights to create a welcoming and visually
appealing ambiance. These downlights can be used for general
lighting, accenting architectural features, or accentuating artwork
and displays. Additionally, the dimmable feature of LED downlights
allows for flexible lighting control, enabling the adjustment of
light levels to create different moods and atmospheres.
Overall, LED downlights are widely used due to their energy
efficiency, long lifespan, and versatility. They offer excellent
lighting performance, enhance aesthetics, and contribute to energy
savings, making them a popular choice for a range of applications
in both residential and commercial settings.

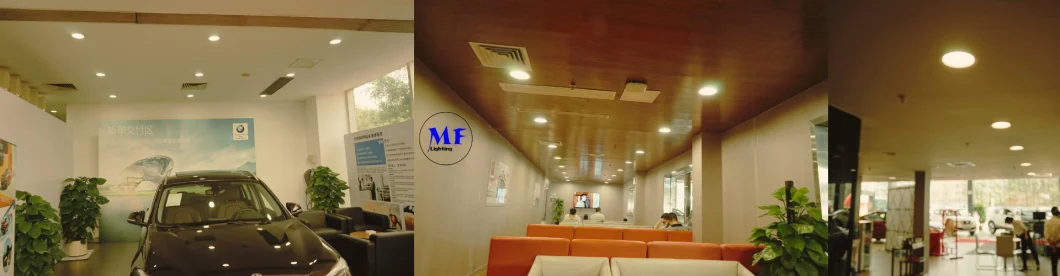

Hospitality: LED downlights are commonly used in hotels, resorts,
and spas to create a soothing and luxurious atmosphere in lobbies,
corridors, guest rooms, and common areas. They provide soft, warm
illumination that enhances the guest experience and adds a touch of
elegance to the space.
Museums and Galleries: LED downlights are preferred in art
galleries and museums to illuminate exhibits and artwork with
precision and accuracy. Their directional lighting helps to
highlight the details and colors of the art pieces while minimizing
heat and UV emissions that could
potentially damage the artwork.
Showrooms: LED downlights are ideal for showcasing products in
retail showrooms, car dealerships, and jewelry stores. Their
focused beam and adjustable angles allow for effective accent
lighting, drawing attention to specific merchandise and creating a
visually appealing display.
Offices and Workspaces: LED downlights are widely used in office
environments to provide bright, glare-free illumination for
workstations, conference rooms, and common areas. They offer a
comfortable working environment, reduce eye strain, and contribute
to better productivity.
Educational Institutions: LED downlights are employed in schools,
universities, and libraries to create conducive learning
environments. They provide uniform lighting in classrooms,
libraries, and study areas, enhancing concentration and visual
comfort for students and teachers.
Healthcare Facilities: LED downlights are utilized in hospitals,
clinics, and healthcare facilities for general lighting in
corridors, waiting areas, and patient rooms. They offer a clean and
bright light source, promoting a sense of well-being and aiding in
accurate medical examinations. Outdoor Spaces: LED downlights with
suitable IP ratings can be used for outdoor applications such as
building facades, pathways, gardens, and parking areas. They
provide efficient and durable lighting solutions that enhance
safety and security while reducing energy consumption.
Packing and Production:
The mentioned product code describes the smallest quantity unit
which can be ordered. One shipping unit can contain one or more
single products. When placing an order, for the quantity please
enter single or multiples of a shipping unit
