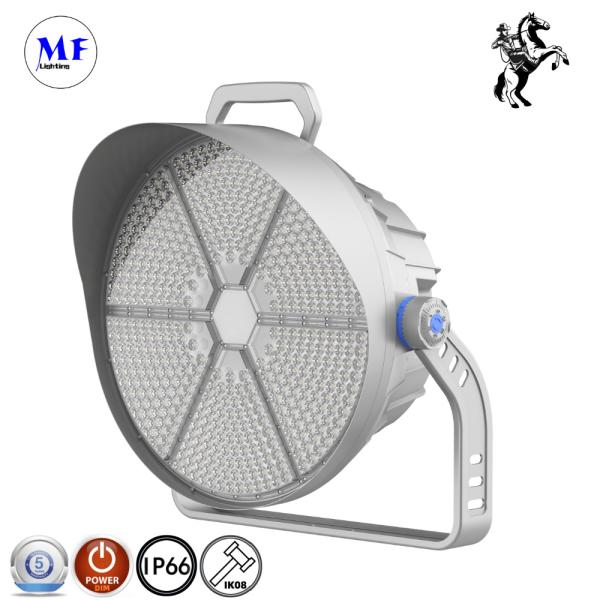

1200W 1000W 800W 600W 400W LED Flood Light LED High Mast IP66 High
Power Floodlights for Race Course Golf Sport Field
| Model No. | MF-QCD-C400w | MF-QCD-C500w | MF-QCD-C600w | MF-QCD-C800w | MF-QCD-C1000w | MF-QCD-C1200W |
| Input Voltage | AC100-277 50/60Hz |
| Output Voltage | DC42v |
| Power | 400w | 500w | 600w | 800w | 1000w | 1200w |
| Qty of LED | 864PCS*3030 | 864PCS*3030 | 864PCS*3030 | 1632PCS*3030 | 1632PCS*3030 | 1632PCS*3030 |
| PF | >0.95 |
| LED Brand | Lu-mileds |
| Luminous Flux | 60000lm±5% | 75000lm±5% | 90000lm±5% | 120000lm±5% | 150000Im±5% | 180000lm±5% |
| CRI | Ra>70,80,90 |
| CCT | 3000-6500K |
| Beam Angle | 10/15/25/45/60/90 |
| Driver Brand | MW/SOSEN |
| THD | <10% |
| lK Ratng | IK08 |
| IP Rating | IP66 |
| Life Span | 50000Hrs |
| Size | 522*509*389mm | 522*509*389mm | 522*509*389mm | 681*660*497mm | 681*660*497mm | 681*660*497mm |
| NW | 16.90kg | 17.40kg | 17.90kg | 33.00kg | 34.00kg | 35.00kg |
| GW | 18.90kg | 19.40kg | 19.90kg | 37.00kg | 38.00kg | 39.00kg |
| Certification | U-L/ETL/DLC/ruv/CB/ENEC/CE/SAA/FCC/RoHS |
Handle Bar: Easy For Installation & Carry
ADC12 Aluminum Die-casting Fixture Housing Die Casting Heat Sink:
concise appearance excellent thermal management & compact
Visor: Effectively control the spill light, upward light and avoid
thelighting pollution.
Breather Valve: Balances The Internal & External Temperature
&Humidity
Racked Angle: 10° steps, allows for 270 installation adjustment.
Polycarbonate Lens: Japan brand TElJIN PC with multiple optical
lighting design, anti-UV and highmechanical strength.
Tempered Glass Cover Options: 4mm high strength tempered glass,
further reduces the UV and anti-rust, typically designed for
coastal areas.
Bracket & Arms:
High-strength cold-rolled plate desigrwith integral flanging and
bending,light weight, high mechanical strength
Special Corrosion Treatment: to reach theWF2 standard and suitable
for harsh environmentschips, high brightness, low light decay & long life time
International driver brand, overheat protection, high convert
efficiency, high PF & surge protection, (1-10V,DALI2.0)
Die-casting technology with ADC12, excellent thermal management and
balance the internal & external temperature, reduce chip Tj and
light decay.
Optical UV resistant PC lens with 94% light transmitance, IK08.

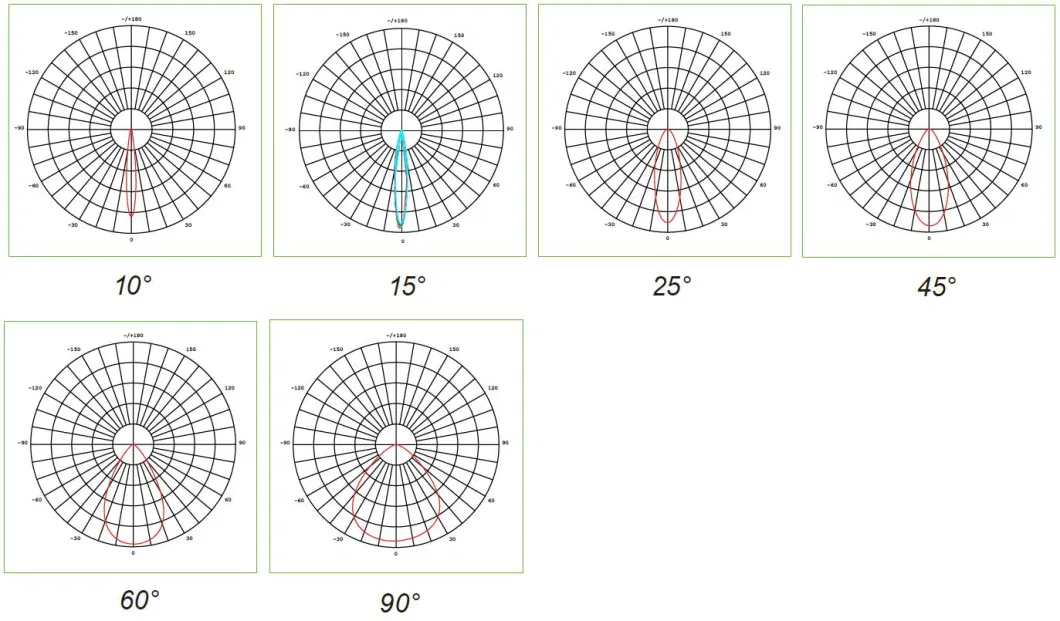

Light Distribution: 10°/15°/25°/45°/60°/90°
Bracket Installation, operation temperature: -35C- +50C
MF-QCD-C400W/500W/600W
MF-QCD-C800W/1000W/1200W
Installation Instructions
LED high mast lights are extensively used in various applications
that require powerful and efficient lighting solutions. Here is a
paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor
areas that demand high-intensity illumination. These lights are
commonly used in sports stadiums, providing exceptional brightness
and uniform lighting for sporting events and nighttime matches.
They are also utilized in airports and transportation hubs to
illuminate runways, taxiways, and apron areas, ensuring safe and
efficient operations during low-light conditions. Additionally, LED
high mast lights are employed in industrial facilities, warehouses,
and logistics centers, where they provide bright and reliable
lighting for loading docks, storage yards, and parking areas,
enhancing safety and productivity. Furthermore, these lights are
commonly used in seaports to illuminate container yards, docking
areas, and cranes, enabling efficient cargo handling and enhancing
overall security. Their applications also extend to large parking
lots, highways, and intersections, where they provide excellent
visibility, reducing the risk of accidents and ensuring smooth
traffic flow. Overall, LED high mast lights serve as indispensable
lighting solutions for a wide range of outdoor environments that
require powerful and energy-efficient illumination.
Any Sport Court
Golf Course
Large Parking Lot
Wharf
Airport
Construction Site
Any Large Outdoor Are,etc
LED high power flood stadium lights are widely used in various
applications where powerful, focused, and energy-efficient lighting
is required. Here is a paragraph describing the applications of LED
high power flood stadium lights:
LED high power flood stadium lights are extensively employed in
outdoor sports stadiums and arenas to provide exceptional lighting
for sporting events. These lights offer high-intensity illumination
and excellent beam control, ensuring uniform coverage of the
playing field, enabling athletes to perform at their best, and
enhancing the viewing experience for spectators. Additionally,
these lights find application in large outdoor concert venues and
music festivals, where they create a vibrant and visually appealing
atmosphere for performers and audiences alike. Their ability to
produce bright and focused lighting makes them suitable for
illuminating stages, outdoor sets, and event spaces during film and
television productions. Moreover, LED high power flood stadium
lights are used in architectural lighting projects, highlighting
the facades of buildings, monuments, and landmarks, enhancing their
aesthetics, and creating dramatic visual effects. These lights are
also deployed in industrial facilities, warehouses, and
construction sites, providing ample lighting for improved safety,
productivity, and overall operational efficiency. Overall, LED high
power flood stadium lights are versatile lighting solutions that
find application in various outdoor environments, ranging from
sports and entertainment venues to industrial and architectural
settings.

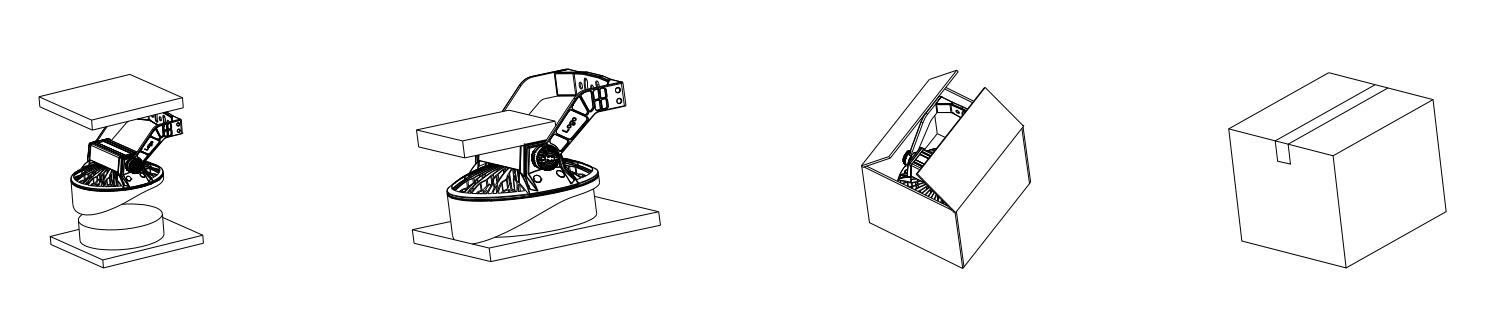

Packing and Production:
