    High End LED Ceiling Down Light Multiple Beam Angle 7W/10W 75mm Anti - Glare IP43 LED Ceiling Concealed COB Spot Lamp

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF-BEE 4
    Certification : CE, RoHS,SAA,TUV,CB,ETL,UL
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    High End LED Ceiling Down Light Multiple Beam Angle 7W/10W 75mm Anti - Glare IP43 LED Ceiling Concealed COB Spot Lamp

    OEM ODM Anti-glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-end LED Ceiling Down Light

    Product Description


    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light

    High luminous efficacy

    Direct replacement for compact fluorescent lamp downlights

    Energy savings up to 60 %
    (compared to luminaires that use CFL lamps)

    Very homogenous light
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    Functional design

    Easy installation with fast connection

    3 years guarantee


    Diameter of required ceiling

    cut-out:
    75mm
    Type of protection, back side: IP40
    Type of protection, front side: IP43
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light

    Beam Angle
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light

    Specifications


    Electrical data
    Nominal wattage
    7W / 10W 7
    Nominal voltage100.…240 v
    Mains frequency50…60 Hz
    Nominal current350.000 mA
    Power factor λ0.90
    Protection classII
    Operating modeElectronic control gear (ECG)

    Photometrical data
    Luminous flux
    7W 700lm / 10W 1000lm
    Luminous efficacy100 lm/W
    Color temperature3000 K 4500K 6000 K
    Light color (designation)Warm White
    Color rendering index Ra≥80
    Beam angle
    15°/24°/36°

    Materials & Colors
    Product color(Ring)White
    Housing colorMultiple Color Optional
    Body materialAluminum
    Mercury content0.0 mg


    Application & Mounting
    Ambient temperature range-20…+40 ºC
    Type of connectionTerminal,2-pin
    Type of protectionIP43
    DimmableNo
    Mounting typeRecessed
    Mounting locationCeiling
    Application environmentIndoor
    Mounting diameter
    Refer to Dimensions & Weight
    LED module replaceableNot replaceable

    Lifespan
    Lifespan L70/B50 at 25ºC30000 hr
    Number of switching cycle15000

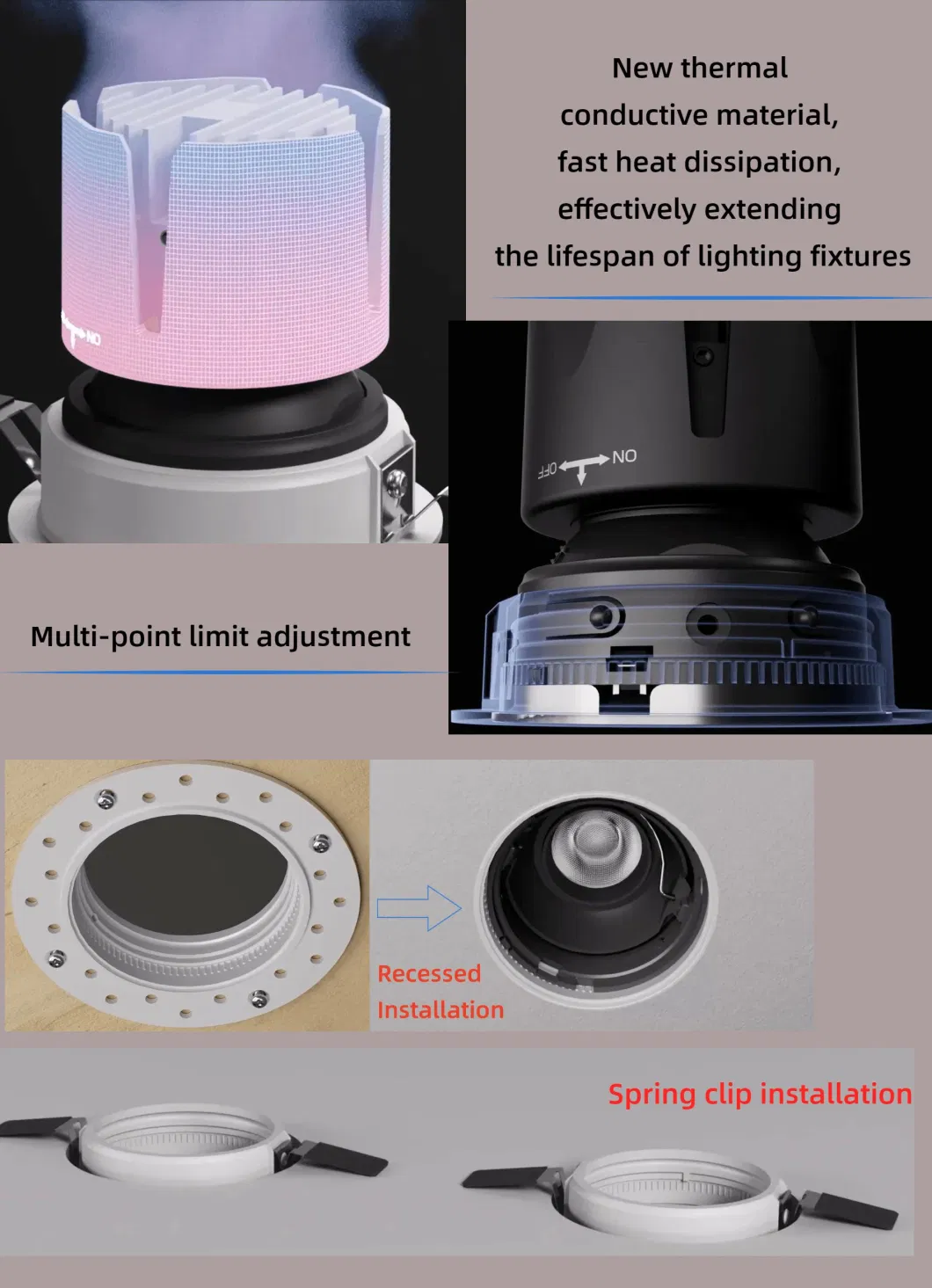

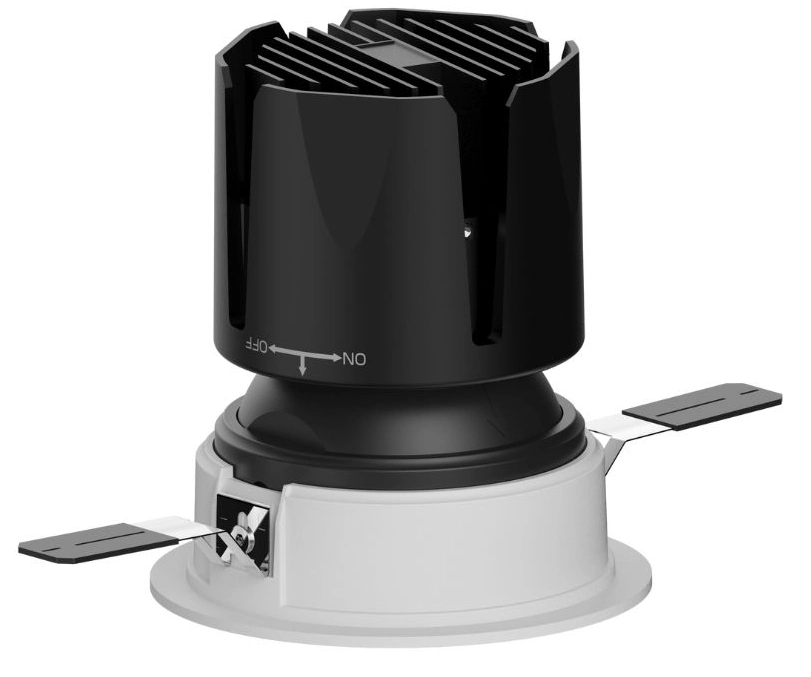

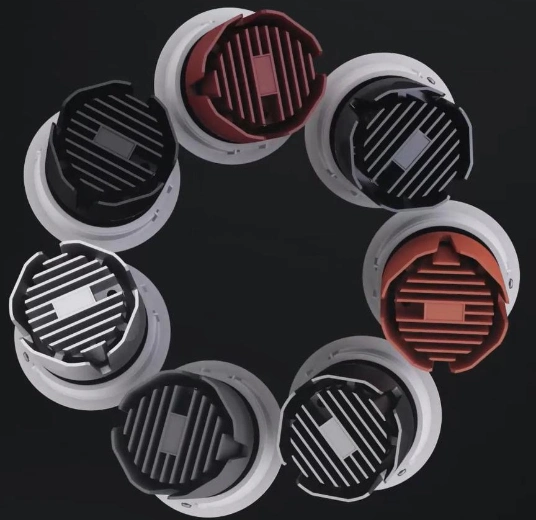

    Detailed Photos

    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light

    Packaging & Shipping

    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light

    The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.

    When placing an order, for the quantity please enter single or multiples of a shipping unit.
    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light

    Applications


    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down LightOEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light
    1. Residential lighting: LED down lights are commonly used in homes for general lighting purposes, such as in living rooms, bedrooms, and kitchens.

    2. Commercial lighting: LED down lights are often used in commercial spaces, such as offices, retail stores, restaurants, and hotels, for general lighting and accent lighting.

    3. Hospitality lighting: LED down lights are commonly used in the hospitality industry, such as in lobbies, hallways, and conference rooms of hotels and resorts.

    4. Healthcare lighting: LED down lights are used in healthcare facilities, such as hospitals, clinics, and dental offices, for general lighting and examination lighting.

    5. Educational lighting: LED down lights are used in educational facilities such as schools, universities, and libraries, for general lighting and task lighting.

    6. Industrial lighting: LED down lights can be used in industrial settings such as factories, warehouses, and workshops, for general lighting and task lighting.

    7. Art and museum lighting: LED down lights are often used in art galleries and museums to highlight and accentuate artwork, sculptures, and exhibits.

    8. Entertainment lighting: LED down lights are used in entertainment venues such as theaters and cinemas, for general lighting and accent lighting.

    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light


    OEM ODM Anti-Glare 100lm/W Multiple Beam Angle 7W/10W 75mm Cutting Size IP43 LED Ceiling Concealed COB Spot Lamp Downlight High-End LED Ceiling Down Light


    FAQ:

    1. Are you a manufacturer?
      Absolutely, we are a professional manufacturer with 16 years of experience.
      Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.

    2. What is your main product?
      Our main products are as follows:

    3. LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)

    4. LED garden spot/spike lights

    5. LED inground lights

    6. What is the minimum order quantity (MOQ)?
      For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.

    7. What are the payment options?
      We accept T/T, Western Union, Paypal, and Alipay. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF.

    8. What is the delivery time?
      The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.

    9. How are the products packaged?
      Each piece is packed in an individual color box and then placed in a strong master carton.

    10. Why should you choose us?
      1). We offer OEM/ODM services.
      2). We have our own design team.
      3). We offer high-quality products at reasonable prices.
      4). We have no MOQ request.
      5). Our sales team has 12 years of experience in underwater lighting.
