    IP66 LED Aviation Obstruction Obstacle Light With Aircraft Warning Red White Beacon For Wind Turbine Control Tower

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF-MI-BF
    Certification : CE, RoHS, FCC, CB,DLC, TUV
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    IP66 LED Aviation Obstruction Obstacle Light With Aircraft Warning Red White Beacon For Wind Turbine Control Tower

    IP66 LED Aviation Obstruction Obstacle Light With Aircraft Warning Red White Beacon For Wind Turbine Control Tower


    Feature:


    This LED Medium-intensity Type A L865 Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105-150 meters. Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.

    1.High-intensity LED technology for bright illumination and long-distance visibility.
    2.Available in various colors (such as red, white, or a combination) based on application and regulatory requirements.
    3.Advanced light control systems, including photocells or timers, for automatic activation during low visibility or nighttime conditions.
    4.Durable and weather-resistant construction to withstand harsh environmental conditions.
    5.Self-diagnostic features to detect and report operational issues for reliable functioning.
    6.Essential for alerting pilots and aircraft personnel to the presence of tall structures or obstacles.
    7.Enhance aviation safety by minimizing the risk of collisions and ensuring air navigation safety. Vital component of aviation infrastructure worldwide.


    Electrical
    1.CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
    2.Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
    Physical

    1.Unique design and UV protected polycarbonate reflector for converging light
    2.UV protection Powder coated bright yellow color base make better visibility
    3.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
    4.Pressure equalizing valve installed under the base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high to avoid the moist air enter due to pressure and temperature difference

    System design

    1.Built-in photocell for day/night operation(dusk to dawn operation)
    2.Surge and lightning protection
    Optional

    1.Dry contact Alarm output for remote monitoring
    2.GPS synchronization
    3.Infrared LED for pilot using NVG

    Light SourceCREE high intensity LED
    Available ColorsWhite
    Intensity(cd)≥20,000cd (Daytime)/≥2,000cd(Night)
    Horizontal Output(degrees)360
    Vertical Divergence(degrees)3
    Flash Characteristics20-60 flashes per minute(factory setting: 20fpm)
    Operation Mode24hours operation, 2 different modes
    LED Life Experience(hours)>100,000



    Specification:

    Electrical Characteristics
    Lightning surgeIEC61000-4-5 L- N ±3kV
    IEC61000-4-5 L- PE ±6kV
    IEC61000-4-5 N- PE ±6kV
    ElectrostaticIEC61000-4-2 Contact discharge 8kV
    Environmental Factors
    Humidity0%-100%
    Wind Speed80m/s
    WaterproofIP66
    Compliance
    ICAOAnnex 14 Volume 1,
    'Aerodrome Design and Operations' Eight edition 2018,
    table 6.3 Medium-intensity Type A White Obstacle Light Medium-intensity Type B/C Red Obstacle Light
    FAAL-864/L-865
    Options AvailableBird deterrent spike
    Dry contact alarm(NO COM NC)
    GPS sync flashing
    RS485 communication
    Infrared LED compatible for NVG (Night Vision Goggles)

    Configuration:


    ModelLight
    source
    Power inputFlash
    rate
    PhotocellDry
    contact
    Alarm
    GPSsync
    flashing
    Control
    MF-MI-BFLED
    IR
    LED&IR
    110-240Vac
    12VDC
    36VDC
    48VDC
    20FPM (Type B&A)
    30FPM (Type B&A)
    60FPM (Type B&A)
    40FPM (Type B&A) Fixed (Type C&A)
    Built-in Photocell
    No Photocell
    No Alarm
    Alarm
    No SYNC
    GPS SNYC
    Used alone
    Used with controller

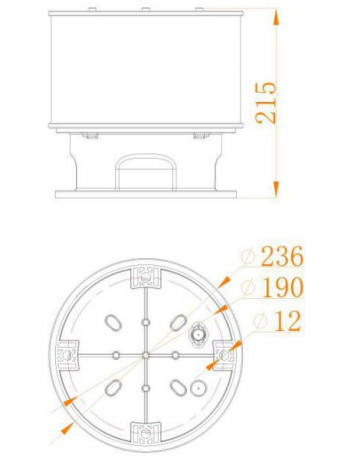

    Dimension:




    Installation:


    (Mounting bracket is charged separately, and size is customized)


    Wiring diagram:



    Application:


    MF-MI-BF medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 45-150 meters, and most time work with low intensity lights installed on the lower place


    1.Tall Structures: Aviation obstruction lights are used to mark tall structures such as communication towers, skyscrapers, chimneys, and bridges, alerting pilots to their presence and preventing potential collisions.

    2.Wind Turbines: Wind farms consist of multiple turbines, and each turbine is equipped with aviation obstruction lights to ensure their visibility to aircraft, especially during low-visibility conditions or at night.

    3.Airports: These lights are crucial at airports to mark various structures, including control towers, hangars, runway lighting systems, and other buildings or equipment that may pose a potential hazard to aircraft.

    4.Power Transmission Lines: Aviation obstruction lights are installed on power transmission towers and lines to ensure their visibility, preventing aircraft from coming into contact with the electrical infrastructure.

    5.Helipads and Heliports: Helipads and heliports utilize aviation obstruction lights to mark their locations and guide helicopter pilots during takeoff, landing, and maneuvering procedures.

    6.Construction Sites: Temporary structures like cranes, tall buildings under construction, and other obstacles at construction sites require aviation obstruction lights to ensure aircraft are aware of their presence and maintain a safe distance.

    7.Offshore Installations:Oil rigs, offshore wind farms, and other offshore installations utilize these lights to mark their structures, ensuring the safety of aircraft operating in the vicinity.

    8.Radio and TV Broadcast Towers: Broadcasting towers are equipped with aviation obstruction lights to ensure their visibility to aircraft, preventing potential collisions.

    9.Mountainous Areas: Aviation obstruction lights are installed on mountains or hills to mark their presence to aircraft, aiding navigation and preventing accidents in challenging terrain.

    10.Any other tall structures or obstacles that may pose a risk to aviation safety can benefit from the installation of aviation obst

    .
