Installation Steps:
1. Use 4 M10 bolts to install the lamp on the bridge as shown in
the picture;

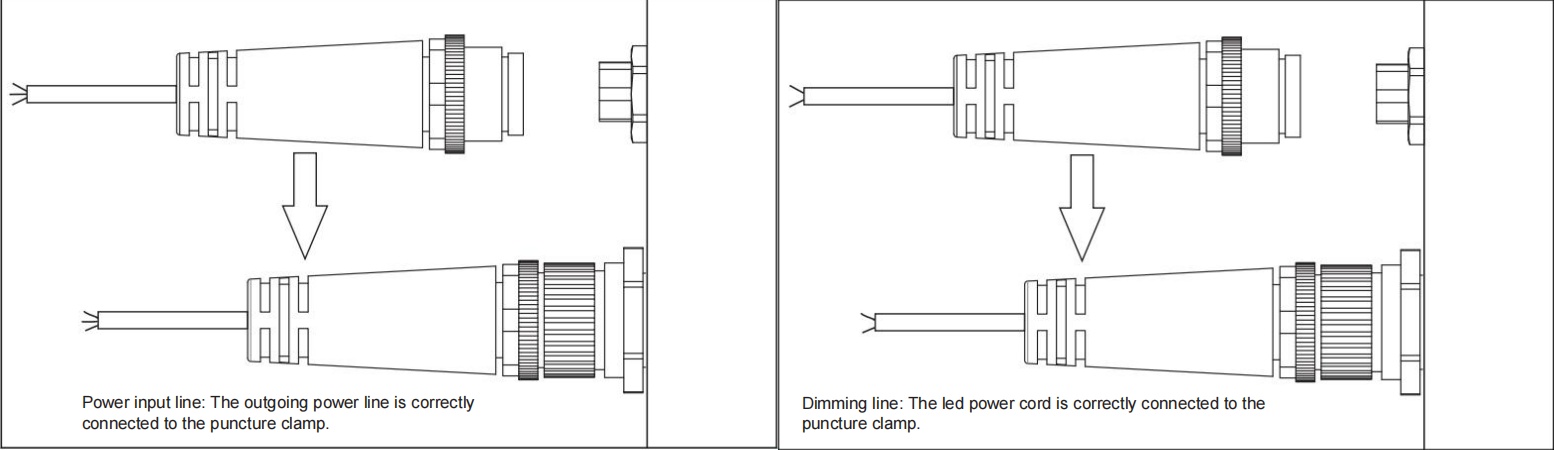

2. Connect the waterproof connectors of the lamps, correctly
connect the power cord to the puncture clamp, and then connect it
to the AC power supply
cord (see wiring steps for details);
3. Adjust the lamp to the position according to the actual lighting
needs of the site, and then tighten the bolts;
4. Adjust the dimming line settings according to on-site needs (not
required for non-dimming);
Note: The power supply cable must ensure even distribution of the
three-phase load.
If the product does not contain dimming cable: Please adapt the
cable outer diameter φ7-9mm by yourself, strip the wire 15mm, and
expose 5mm copper;

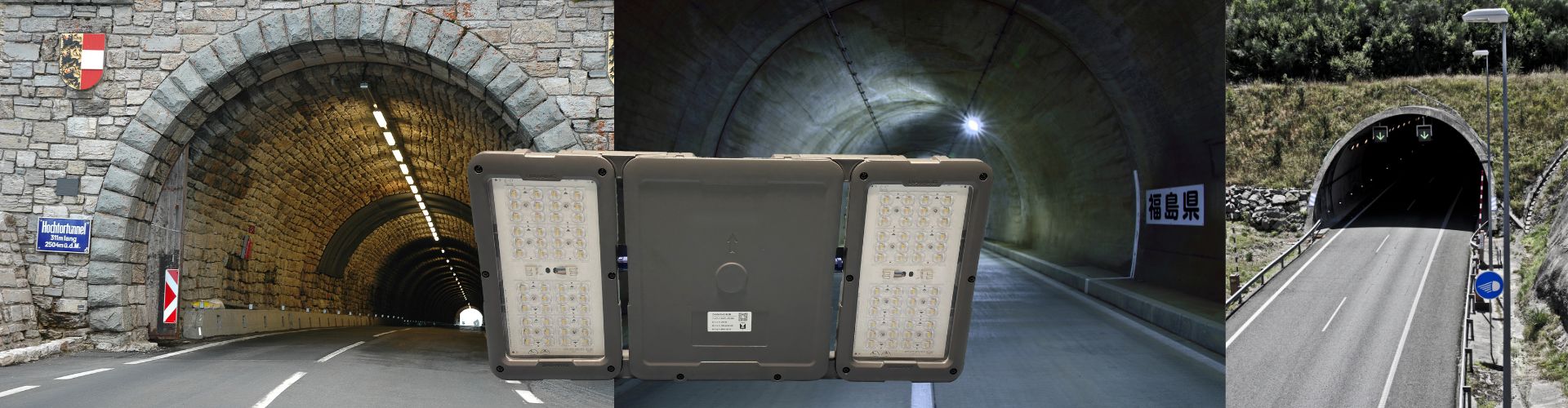

LED tunnel lights find wide application in tunnel lighting due to
their numerous advantages over traditional lighting sources
Tunnel Illumination:
LED tunnel lights provide efficient and uniform illumination inside
tunnels, ensuring clear visibility for drivers and pedestrians.
They offer better light distribution, reducing shadows and dark
spots, which enhances safety and reduces the risk of accidents.
Energy Efficiency:
LED tunnel lights are highly energy-efficient compared to
conventional lighting options such as high-pressure sodium lamps or
metal halide lamps. LEDs consume significantly less energy while
producing the same or even higher levels of brightness, resulting
in reduced energy consumption and lower operating costs.
Long Lifespan:
LED tunnel lights have a longer lifespan compared to traditional
lighting sources. They can operate for tens of thousands of hours,
reducing the frequency of maintenance and replacement. This
characteristic is especially beneficial in tunnels, where
accessibility for maintenance is often challenging and
time-consuming.
Durability and Reliability:
LED tunnel lights are designed to withstand harsh environmental
conditions, including vibration, temperature variations, and
humidity. They are resistant to shock and impact, ensuring their
reliability and longevity in tunnel environments.
Instant On/Off:
LED tunnel lights offer instant illumination without any warm-up
time. This feature is crucial in tunnels, where immediate and
consistent lighting is necessary during power outages or emergency
situations.
Controllability and Dimming:
LED tunnel lights can be easily integrated with intelligent
lighting control systems. This allows for dynamic lighting
scenarios, including dimming during low traffic periods to further
reduce energy consumption. It also enables remote monitor
