Shapeable Spotlight Dimmable Shaped Zoomable LED Track Light Spot Shaping Lights for Shops Exhibition Halls Museums

Fully independent intellectual property rights, global patents, global certification!
Dry stepless linear zooming and spot shaping. Frame size 1:0.8

There can never be only one lighting design solution. The possibilities in the design are limitless. Moreover, the spirit of the times, cultural background, abstract concepts, and even the personal characteristics of the designer can be different and diverse. We look for the most suitable way of light expression in this infinite possibility.

KP series Magnetic contour spotlight (M1003K) has equipped with our newly developed 55° fixed-focuswide-angle optical lens and 15~36· constant zoomoptical lens, compatible with p 38mm mini sizeradiator and magnetic track adapter. Ultra-smallsize, excellent performance.

Cold forging integrated radiator design
A radiator made of 1070#pure aluminum and molded by molding pressure.
It has high thermal conductivity, low-temperature differences, low light failure, and long service life.

Thermal conductivity 226W/m.K

KP series stretching embedded contour spotlighthas equipped with our latest developed 55 fixedfocus wide-angle optical lens and 15 ~ 36constant zoom optical lens. compatible with p38mm mini size radiator and 70mm stretchingembedded device. Ultra-small size, excellentperformance.

Ultra-high-definition projection.
Millimeter-level precise Spot shaping, uniform illumination.
Fixed-focus / zoom lens can be switched arbitrarily (lt trulyintegrates fixed-focus optics and zoom optics mutually. Maximizethe optical properties of fixed-focus and zoom lens).

KP series stretching embedded contour spotlight has the features offlexible rotation and precisely projection, supporting vertical 90°rotation and horizontal 355°rotation.

High-definition optical lens design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc..

A new optical path specially designed for COB light sources.

Optical-grade variable aperture design
An optical diaphragm made of high-precision special material with no
blurring and freezing.
Manual insertion and removal of the light cutting device can freely change the shape of the spot.

Multi-layer dry damping design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use.
Rotating the device can change the sharpness of the spot.

Multi-layer dry damping design
Short stroke, considerable focal length, high short-focus and long-focus
recognition, visible to the naked eye, linear zoom is enhanced and more
convenient.
Rotate the device to adjust the spot size.

KP series stretching embedded contour spotlighthas equipped with our latest developed 55 fixedfocus wide-angle optical lens and 15 ~ 36constant zoom optical lens. compatible with p38mm mini size radiator and 70mm stretchingembedded device. Ultra-small size, excellentperformance.

High-definition Optical Lens Design

Optical-grade Variable Aperture Design

An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the

light cutting device can freely change the shape of the spot.

Multi-layer Dry Damping

The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.

Multi-layer Dry Damping

Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.

DIP color temperature coupled with the single lamp knob dimming design can easily achieve single lampdimming, spot shaping and color temperature adjustment. It can be used alone or can alternatively be equipped with other dimming devices.

I .Adjust the aperture to the appropriate size, and facing thecenter of the irradiated object, adiust the sharpness to a reasonable degree, as shown in Fiqure 17.

II.Pull the four diaphragm sheets outward to the maximum, andthen push one by one vertically inward, to ensure that the cutsquare spot is smaller than the object to be illuminated. andadjust the sharpness of the aperture again until satisfactory, asshown in Fiqure 18.

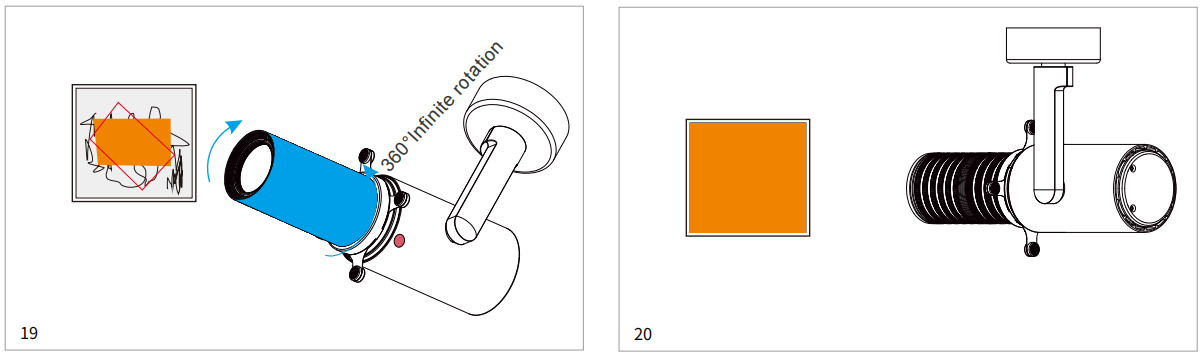

III.lf the shape of the spot does not match the object to beilluminated, first loosen the hand screw at the red mark, rotate theblue part of the lens, adjust the edge of the spot to be parallel tothe edge of the object to be illuminated, and finally tighten thehand screw. As shown in Figure 19, the LOGO projection directionnot matching can also be adjusted to the ideal direction using thismethod.

IV.Stretch the diaphragm sheet one by one outward until the spotsize is substantially consistent with the obiect, as shown in Fiqure20. lf you are not satisfied with the effect, it is recommended torepeat the operation according to the above steps to bring up thespot effect you are happy with.
