Physical​

1.Unique design and UV protected polycarbonate reflector for converging light
2.UV protection Powder coated bright yellow color base make better visibility
3.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
4.Special vent installed under base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high, to avoid the High pressure steam goes inside

System design​​

1.Built-in photocell for day/night operation(dusk to dawn operation)
2.Surge and lightning protection

Optional

1.Dry contact Alarm output for remote monitoring
2.GPS synchronization
3.Infrared LED for pilot using NVG

Light Characteristics​

Light Source	CREE high intensity LED
Available Colors	White(Other color is optional)
Intensity(cd)	≥20,000cd (Daytime)≥2,000cd(Night)
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	3
Flash Characteristics	20-60 flashes per minute(factory setting: 20fpm)
Operation Mode	24hours operation, 2 different modes
LED Life Experience(hours)	>100,000

Electrical Characteristics​

Operating Voltage	DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Instantaneous power(W)	40W (Red mode)+600W(White mode)
Average Power(W)	5W(20fpm, red mode) + 13W(20fpm, white mode)
Circuit Protection	Integrated

​

Physical Characteristics​

Body Material	UV protected Polycarbonate
Base Material	Powder-coated Die-casting aluminum

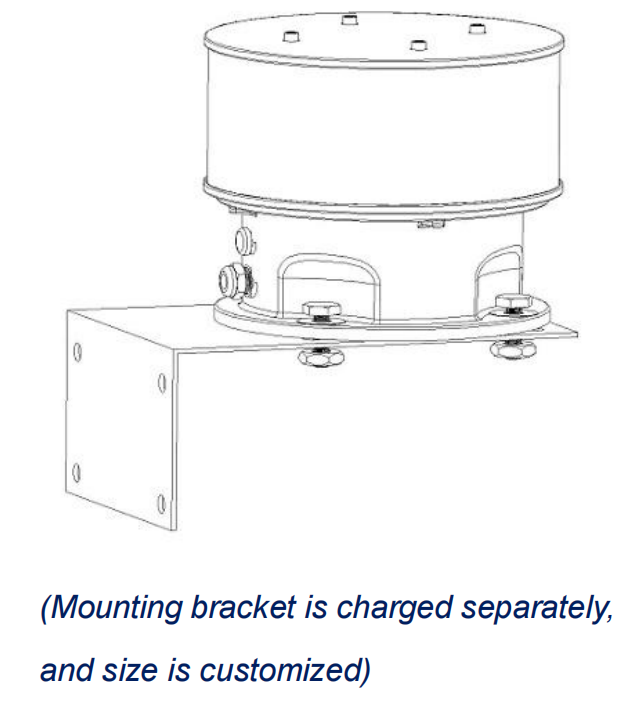

Mounting	190*190*θ12
Dimension(mm)	236*236*215
Weight(kg)	4
Product Life Expectancy	10 years plus

​

Environmental Factors​

Humidity	0%-100%
Wind Speed	80m/s
Waterproof	IP66

​

Compliance​

ICAO	Annex 14 Volume 1,'Aerodrome Design and Operations' Eight edition 2018, table 6.3 Medium-intensity Type A White Obstacle Light Medium-intensity Type B/C Red Obstacle Light
FAA	L-865,L-864

Options Available

GPS sync flashing

Infrared LED compatible for NVG (Night

Vision Goggles)

Dry contact alarm output

RS485 communication

Bird deterrent spike

Configuration​

Model	Power input	Flash rate	Lens color	Photocell	Dry contact Alarm	GPS sync flashing	Control
MF-MI-BF	110-240VAC 12VDC 36VDC 48VDC	20FPM (Type B&A) 30FPM (Type B&A) 60FPM (Type B&A) 40FPM (Type B&A) Fixed (Type C&A)	White&Red	Built-in Photocell No Photocell	No Alarm	NO SYNC GPS SNYC	Used alone with controller

​

Wiring diagram

This LED Medium-intensity Red&White Dual Aviation

Obstruction Light flashing white color at daytime and

red color at night. It's designed for marking top of obstacle

which height is between 45-150 meters.

Ultra high intensity CREE LED is used for the light source

ensure the long life experience and good performance.

Self-designed reflector is used to converge light, which

could reach the standard light intensity with as less as the

power consumption.
