    RED lights ISO9001 IP66 LED Low-intensity Double Aviation Obstruction Light for High building Tower crane

    This LED Low-intensity Double light is a steady burning

    (20/30/60fpm is adjustable) aviation obstruction light
    designed for marking top of obstacle that do not exceed
    45 meters in height.
    Main-standby mode ensure the obstacle is always marked
    even one light fail.

    Compliance

    • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstruction Light
    • FAA L-810
      features

      Electrical


      1.CREE LED, make sure LED keep bright while use for long time
      2.Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

      ​​​

    Physical

    1.Bird deterrent spike on top

    2.Unique designed PMMA lens for converging light and good transparency

    3.High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing

    4.UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments

    5.Base material is die casting aluminum which has strong corrosionresistance, Shock and Vibrations protection

    6.3/4inch thread hole make pole installation easy

    7.No screw fix type - just twist, the cover will be fixed tightly

    System design

    1.Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2

    2.Steady/20FPM/30FPM/60FPM DIP switches on PCB

    3.Surge and lightning protection

    4.Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.


    Optional

    1.Infrared LED for pilot using NVG

    2.Alarm contact output (Dry contact- NO COM NC), When power failed alarm generate & also when LED fails alarm generated

    3.Solar power system


    Light Characteristics

    Light Source
    LED

    Available Colors

    Red(Other color is optional)
    Intensity(cd)
    ≥32.5cd(type B),others optional(10cd, 100cd,etc)
    Horizontal Output(degrees)
    360
    Vertical Divergence(degrees)
    ≥10
    Flash Characteristics
    Steady-burning/20/30/60 adjustable
    Operation Mode
    Dusk-to-dawn Automatically as standard.
    24hours operation as option.
    LED Life Experience(hours)
    >100,000

    Electrical Characteristics
    Operating Voltage
    DC(48VDC) &AC(110-240VAC) or others
    power(W)
    5
    Lightning surge
    IEC61000-4-5 L- N ±3kV
    IEC61000-4-5 L- PE ±6kV
    IEC61000-4-5 N- PE ±6kV
    Electrostatic
    IEC61000-4-2 Contact discharge 8kV
    Circuit Protection
    Integrated

    Physical Characteristics
    Body Material
    Polycarbonate
    Base Material
    Die-casting aluminum

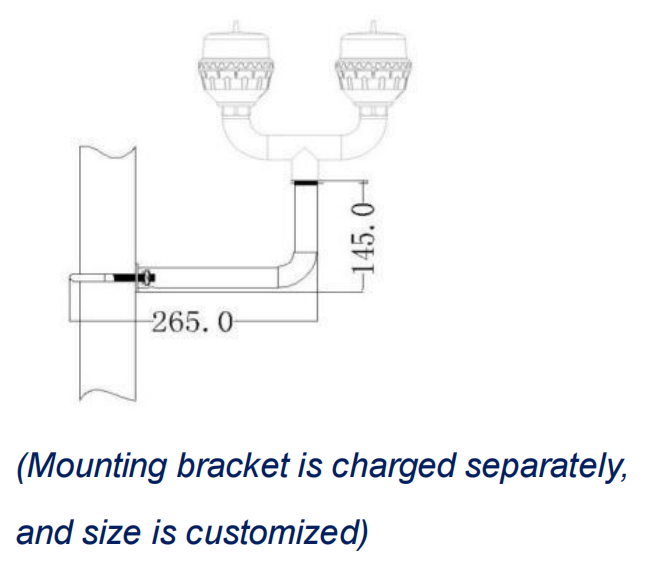

    Mounting
    3/4 inch pipe thread or D140mm×M10*3
    Dimension(mm)
    254×90×210 or 254×165×250
    Weight(kg)
    1.5 or 2
    Product Life Expectancy
    10 years Plus

    Environmental Factors
    Ambient Temperature(℃)
    -40~65
    Storage temperature(℃)
    -55~70
    Humidity
    10%-95%RH(No condensation)
    Wind Speed
    240Km/h
    Waterproof
    IP66

    Compliance
    ICAO
    Annex 14 Volume 1,'Aerodrome Design and
    Operations’ Seventh edition July 2016, table 6.3
    Low-intensity Type A/B/E Obstacle Light
    FAA
    L-810

    Options Available
    NVG(Night Vision Goggles) compatible LED
    Working mode
    GPS sync flashing
    Dry contac output
    Solar Power system

    Wiring diagram
    MF-LI-B2 low-intensity light could be used alone on the top of the
    High-rise Building, High Chimney, marking towers (Telecom, GSM,
    Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when
    the height is lower than 45m.
