FEATURES&BENEFITS
HOUSING
1.Die cast aluminum housing.
2.Modular design allows for easy installation, replacement and
maintenance. This design also creates a chimney effect which
provides exceptional thermal management.
3.Meets 3G vibration per ANSI C136.31-2010.
4.IK10 rated
FINISH
1.Corrosion resistant polyester powder painted 100μm thickness.
2.Meets a 1000-hour salt spray certification per ASTM B117/ ISO
9227:2012.
3.Standard colors: Grey, Black, Bronze and White.
4.Customized colors are available.
LED ＆ OPTICAL ASSEMBLY
1.Each PCB are mounted with a TVS (Transient Voltage Suppressors)
to protect the LEDs from voltage transients induced by lightning
and other transient voltage events.
2.High-uniformity LED optics are constructed of durable optical
polycarbonate that is impact and UV resistant.
3.The metal plate provides double protection for the LED light
engine and prolongs LED optics life.
4.Over 15 optical lenses are available for virtually any
application.
5.Each LED module are 100% tested prior to assembly which is IP67
rated.
MOUNTING
1.Extremely flexible with 360 degree rotation.
2.Interchangeable with the other GAMA Series with a bracket change.
3.Brackets are available for different installations.
Electrical/ Key Components/ Controls
1.220-240VAC and 120-277VAC available.
2.Surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002
available.
3.High quality LEDs, driver and components, e.g. MOLEX, WAGO
connectors.

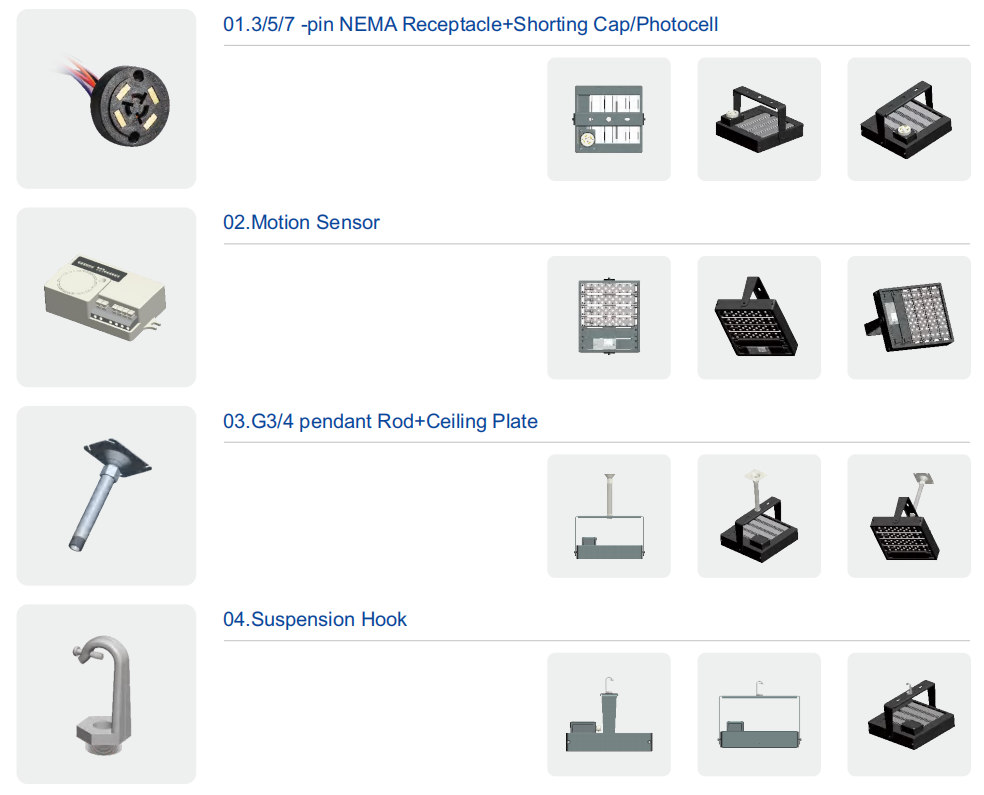

4.Multiple smart lighting control options are available, e.g.
photocell, motion sensor, 1-10V.
Model No. | System Power | | LEDs | EPA (sq.ft) | Net Weight | Gross Weight | Product deminsions | Carton Dimensions | Drive Current | Luminous Flux(5000K) | Efficacy (lm/W) |
MFA60-C | 60W | 1 | 18 | 0.324 | 4.45KG | 5.14KG | 5.91" x 13.58" x 4.41" | 14.37" x 16.34" x 6.3" | 1050mA | 8100lm | 135 |
MFA120C | 120W | 2 | 36 | 0.347 | 5.56KG | 6.62KG | 8.27" x 13.58" x 4.41" | 14.37" x 16.34" x 6.3" | 16200lm | 135 |
MFA180C | 180W | 3 | 54 | 0.372 | 6.38KG | 7.21KG | 10.63" x 13.58" x 4.41" | 16.73" x 16.34" x 6.3" | 24300lm | 135 |
MFA240C | 240W | 4 | 72 | 0.404 | 7.1KG | 8.22KG | 12.99" x 13.58" x 4.41" | 16.73" x 16.34" x 6.3" | 32400lm | 135 |
MFA300C | 300W | 5 | 90 | 0.437 | 8.62KG | 9.59KG | 17.72" x 13.58" x 4.41" | 21.46" x 16.34" x 6.3" | 40500lm | 135 |
LED flood lights have numerous applications across different
settings due to their versatility and high-performance
characteristics. Here are some common applications of LED flood
lights:
1.Outdoor Lighting:
LED flood lights are extensively used for outdoor lighting
purposes. They are commonly employed to illuminate large areas such
as parking lots, stadiums, sports fields, building facades, parks,
and gardens. Their wide beam angle and high brightness make them
suitable for providing even and efficient illumination over
expansive outdoor spaces.
2.Security Lighting:
LED flood lights are popularly used for security lighting due to
their powerful illumination capabilities. They help enhance
visibility and deter potential trespassers or intruders. LED flood
lights with motion sensors are commonly used in residential,
commercial, and industrial settings to provide instant and targeted
lighting when motion is detected.
3.Architectural Lighting:
LED flood lights are employed for architectural lighting to
highlight and accentuate the architectural features of buildings,
monuments, bridges, and landmarks. Their versatility in terms of
beam angles, color temperature options, and color-changing
capabilities allows for creative lighting designs and dramatic
effects.
4.Sports Lighting:
LED flood lights are extensively used for sports lighting
applications, enabling high-quality illumination for various
sporting events and activities. They are employed in stadiums,
arenas, tennis courts, golf courses, and other sports facilities to
provide uniform and shadow-free lighting, ensuring optimal
visibility for players and spectators.
5.Billboard and Signage Lighting:
LED flood lights are commonly used for illuminating billboards,
signage, and advertising displays. Their high brightness, energy
efficiency, and long lifespan make them a popular choice for
outdoor advertising, ensuring clear visibility of promotional
content both during the day and at night.
6.Industrial Lighting:
LED flood lights find application in industrial settings such as
warehouses, factories, construction sites, and loading docks. They
provide bright and focused lighting for tasks that require high
visibility, ensuring a safe and productive working environment.
7.Landscape Lighting:
LED flood lights are utilized for landscape lighting to enhance the
aesthetics of outdoor spaces such as gardens, pathways, trees, and
water features. They can be used to create different lighting
effects, highlight focal points, and add ambiance and drama to
landscapes.
8.Event Lighting:
LED flood lights are often employed for event lighting purposes,
such as concerts, festivals, weddings, and stage productions. They
offer versatile lighting options, including color-changing
capabilities, to create dynamic and visually stunning lighting
displays.
