Features
1. Materials: Dia-casting Aluminum.
2. House color: White.
3. 100W,150W One Module; 150-400W Two Modules.
4. UGR<19 Anti-glare design with Honeycomb reflector.
5. Beam angle adjustable
Introduce
1.Use SMD3030 LED,high light efficacy high CRI,the lamp fixture
light eficacy is up to 130lm/W.
2.AC85-265V input costant voltage constant current power
drive,which has short circuit/overvoltage/over
current/over-temperature protection.
3.1060 aluminum,module design,appearance oxidation powder
treatment,whole lamp IP65 waterproof and dust proof,corrosion
resistance.

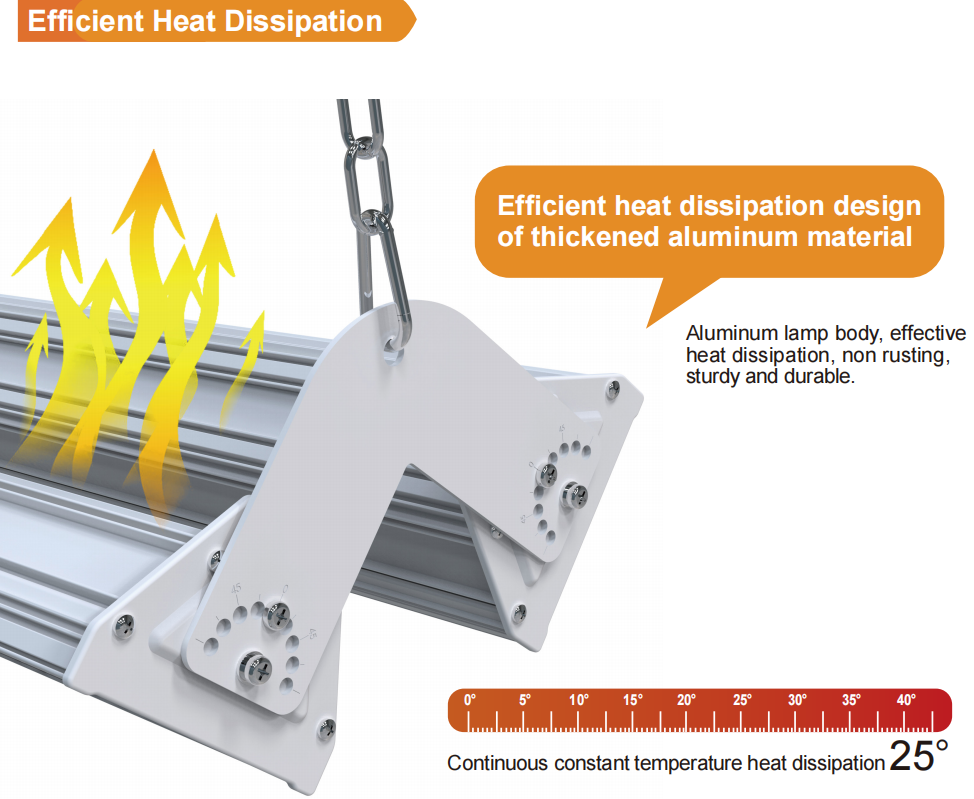

4.Multi-module 3D stereo heat dissipation,long strip
moduleshaped,Air convection duct design,uniform heat
dissipation,forming 3D
stereo heat dissipation to dissipate heat to the maximum.
No video flash,
energy saving eye protection
Anti dizziness design, soft light
irradiation, no eye injury or glare
Item
| One module | One module | One module | Two module | Two module | Two module |
| 75W | 100W | 150W | 150W | 200W | 300W |
| Power | 75W | 100W | 150W | 150W | 200W | 300W |
| Lumen | 6300lm | 8400lm | 12600lm | 12600lm | 16800lm | 25200lm |
| Efficacy | 84lm/W |
| CCT | 2700-6500K |
| CRI | ≥80Ra |
| LED | San'an/Lumileds/SMD 3030 |
| PF | >0.97 |
| Input voltage | AC100-277V |
| THD | 15%<THD<20% |
| N.G. | 2.4KG | 3.1KG | 3.8KG | 4.8KG | 6.2KG | 7.6KG |

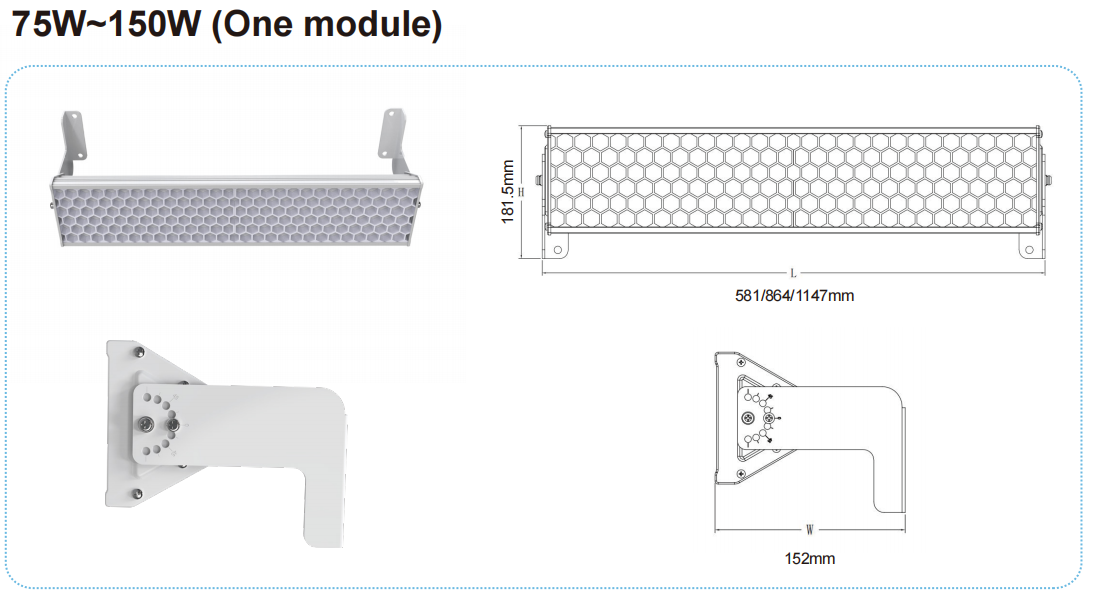

| Size(mm) | 581*181.5*152 | 864*181.5*152 | 1147*181.5*152 | 581*303*138 | 864*303*138 | 1147*303*138 |
| Beam Angle | 75° |
| Work Temp | -20~+40ºC |
| Humidity | 15%~90%RH,nocondensing |
| Surface | Sprayed with outdoor special powder |
| Life span | ≥50000 Hrs |
| IP | IP40 |
| IK | IK08 |
| Product Material |
| Power Wire | Body material | Electronic security level |
| Cable(3*0.75mm²) L=1.5m | Aluminum+PC | Class I |
Warehouses and Distribution Centers: Linear LED high bay lights are optimal for illuminating vast
storage areas and ensuring consistent lighting throughout the
space. They deliver luminous and uniform illumination, facilitating
easy identification and retrieval of items by workers.
Manufacturing Facilities: In manufacturing plants, where precision and safety are paramount,
linear LED high bay lights offer exceptional lighting conditions.
They diminish shadows and glare, enabling workers to execute
intricate tasks with precision and accuracy. The superior quality
of light enhances productivity among workers while minimizing the
risk of accidents.
Gymnasiums and Sports Facilities: Linear LED high bay lights are extensively deployed in sports
arenas, gymnasiums, and indoor stadiums. They provide bright and
even illumination across the playing area, ensuring optimal
visibility for athletes and spectators alike. The instant-on
capability of LED lights proves advantageous during sports events
and competitions.
Retail Stores and Supermarkets: Linear LED high bay lights are increasingly embraced in retail
settings to create an inviting and well-illuminated shopping
experience. They accentuate merchandise displays, improve color
rendition, and foster a pleasant ambiance, enhancing the overall
customer experience.
Exhibition Halls and Convention Centers: Linear LED high bay lights are commonly employed in large
exhibition halls and convention centers to deliver adequate
lighting for trade shows, conferences, and events. They provide
uniform and consistent illumination, guaranteeing effective
showcasing of exhibits and presentations.
Parking Garages: LED high bay lights find utility in parking garages and car parks,
enhancing visibility and ensuring the safety of drivers and
pedestrians. They provide bright and uniform lighting,
substantially reducing the risk of accidents and improving overall
security.
Indoor Agricultural Facilities: Linear LED high bay lights are extensively used in indoor farming
operations, such as vertical farms or greenhouses, to provide the
necessary light spectrum for optimal plant growth. LED lights can
be customized to emit specific wavelengths of light, effectively
optimizing photosynthesis and increasing productivity.
