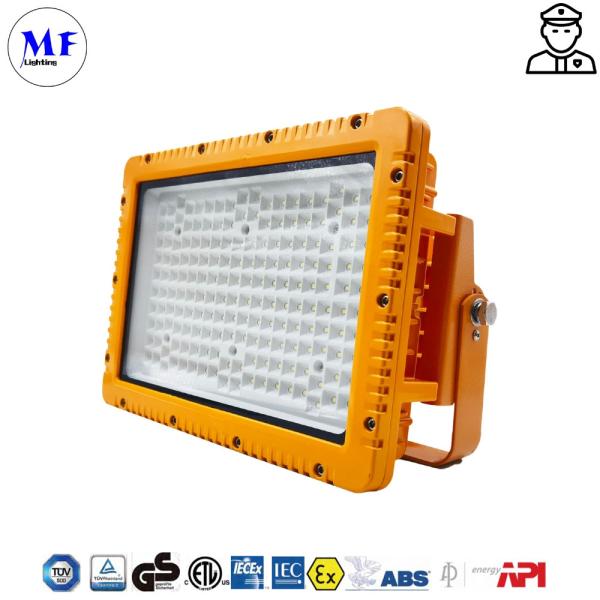

    IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills

    Ask Lasest Price
    Brand Name : MF
    Model Number : EX-xxWFL3YZDA
    Certification : CCC,CE,CQC,ETL,RoHs,SAA,ETL
    Supply Ability : 5000pcs/months
    Delivery Time : depends on order
    • Product Details
    • Company Profile

    IP66 IK10 Waterproof Dust-proof Explosion Proof Flood Light For Heavy Industry Storage Paper Mills

    >FEATURES

    •Working Temperature: -40°C ~ +55°C.
    •High quality SMT LED
    •Heavy-duty and high impact resistance.
    •Replaceable LED board and drivers.
    •Integrated junction box for driver .
    •Dimmable and battery back up function available.
    •Marine rating powder coated finish treatment.
    •Up to 5 years warranty .

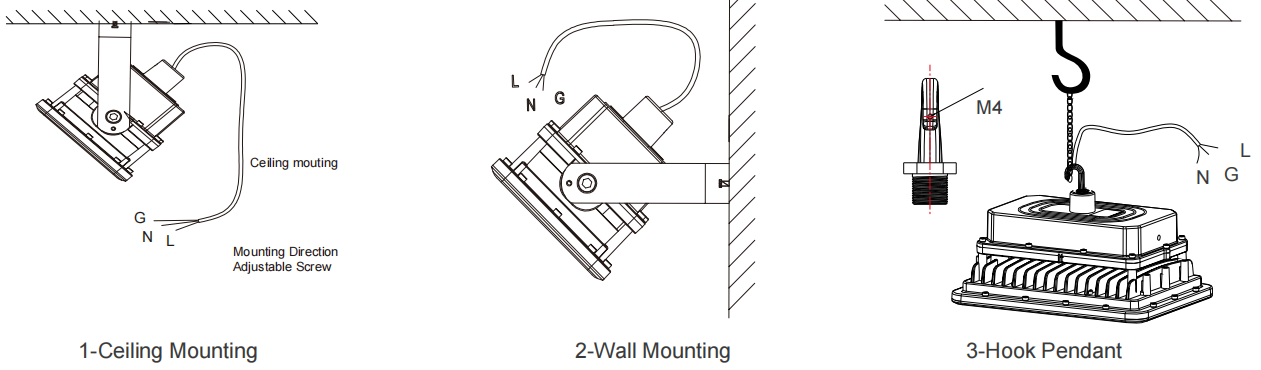

    •Various installation ways for different applications.
    •Glass lens or polycarbonate lens to make different beam angles.

    >SPECIFICATION

    Product NumberWattageColorTemperatureVoltageLumensWarrantyCRIEmergency Time
    EX-30WFL3YZDA30W2200K-7000KAC200-250V/DC12-48V42005YEARS703Hours
    EX-50WFL3YZDA50W6000
    EX-60WFL3YZDA60W8400
    EX-80WFL3YZDA80W11200
    EX-100WFL3YZDA100W14000
    EX-150WFL3YZDA150WAC200-250V/DC36-48V21000
    EX-180WFL3YZDA180W25200
    EX-200WFL3YZDA200W28000
    EX-240WFL3YZDA240W33600

    "A,A3,A4"=Product code."Y"=D or N D:Dimmable or N: non-dimmable "Z"=CCT, from 2200-7000k, 22 for 2200k...70 for 7000K."D"
    =Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°.
    "A"=glass type. blank for flat glass, C for spherical glass.

    >EXPLOSION PROTECTION

    Marking Atex
    II 2 G Ex nr IIC T6 GC
    Il 2 D Ex tb IIIC T80 Db Ip66
    Marking IECEX
    Ex nr IIC T6 GC
    Ex tb IIIC T80 Db Ip66

    Marking UL844 (NorthAmerican)
    Class I, Division 2, Groups A, B, C, D
    Class II, Division 1, Groups E, F, G
    Class II, Division 2, Groups F, G
    Class III
    Marine Marking
    UL 1598, UL1598A
    ABS
    Other Rating
    IP 66
    >MATERIALS
    • Housing: Copper-free aluminum
    • Lens: Tempered Glass
    • Mounting Bracket: Stainless steel
    • Hardware: Stainless steel
    >ACCESSORIES





    Explosion-proof street lights are specifically designed to provide illumination in hazardous locations where there is a risk of explosions due to the presence of flammable gases, vapors, or combustible dust. These lights are built to withstand and contain any explosion that might occur within their housing, preventing it from spreading to the surrounding environment.
    Petrochemical Plants:
    Petrochemical facilities deal with volatile substances and gases, making explosion-proof lighting essential to ensure safety in areas where flammable materials are present.
    Oil Refineries:
    Refineries involve various processes that produce flammable vapors and gases. Explosion-proof street lights are used in outdoor environments, such as storage areas, loading docks, and walkways, to provide reliable lighting without posing a risk.
    Chemical Plants:
    Chemical processing plants often handle hazardous materials and operate in environments with potential explosion risks. Street lights with explosion-proof features are employed in outdoor locations to maintain visibility while minimizing the danger of ignition.
