IP66 IK10 IEC Certifiled 20W 40W 60W Dimmable Explosion Proof Light For Ocean Vessel Pumping Station

Ask Lasest Price
Brand Name :	MF
Model Number :	EX-xxWB3YZDA
Certification :	CCC,CE,CQC,ETL,RoHs,SAA,ETL
Supply Ability :	5000pcs/months
Delivery Time :	depends on order

Add to Cart

Product Details
Company Profile

IP66 IK10 IEC Certifiled 20W 40W 60W Dimmable Explosion Proof Light For Ocean Vessel Pumping Station

>FEATURES

•Working Temperature: -40°C ~ +55°C.

•High quality SMT LED.

•Heavy-duty and high impact resistance.

•Replaceable LED board and drivers.

•Integrated junction box for driver .

•Dimmable and battery back up function available.

•Marine rating powder coated finish treatment.

•Up to 5 years warranty .

•Various installation ways for different applications.

•Glass lens or polycarbonate lens to make different beam angles.

>SPECIFICATION

Product Number	Wattage	Color Temperture	Voltage	Lumens	Warranty	CRI	Emergency Time
EX-20W B3YZDA	20w	2200K-7000K	AC200-250V/DC12-48V	2600	5YEARS	70	3Hours
EX-40W B3YZDA	40w		AC200-250V/DC12-48V	4200
EX-60W B3YZDA	60w		AC200-250V/DC12- 48V	7800/11200

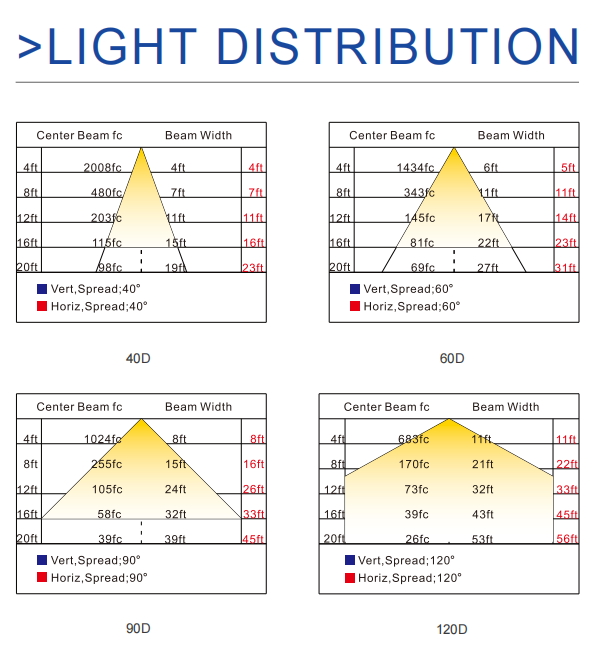

"B3,B4"=Product code."Y"=D or N D:Dimmable or N: non-dimmable "Z"=CCT, from 2200-7000k, 22 for 2200k...70 for 7000K."D"=Beam angle,D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120° "A"=glass type. blank for flat glass, C for spherical glass.

>EXPLOSION PROTECTION

Marking ATEX

II 2 G Ex eb mb IIC T6...T4 Gb

II 2 D Ex tb IIIC T80°C...T100°C Db IP66

Marking IECEx

Ex eb mb IIC T6...T4 Gb

Ex tb IIIC T80°C...T100°C Db IP66

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marine Marking

UL1598, UL1598A

ABS

Other Rating

IP 66

>MATERIALS

• Housing: Copper-free aluminum

• Lens: Tempered Glass

• Mounting Bracket: Stainless steel

• Hardware: Stainless steel

>ACCESSORIES

1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.
2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.
3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and
Durable explosion-proof lighting fixtures that can withstand these factors are crucial.
