Factory Price 400W500W800W1000W1200W IP66 Waterproof Sports Stadium
Lighting Coastal Environment LED High Mast Light

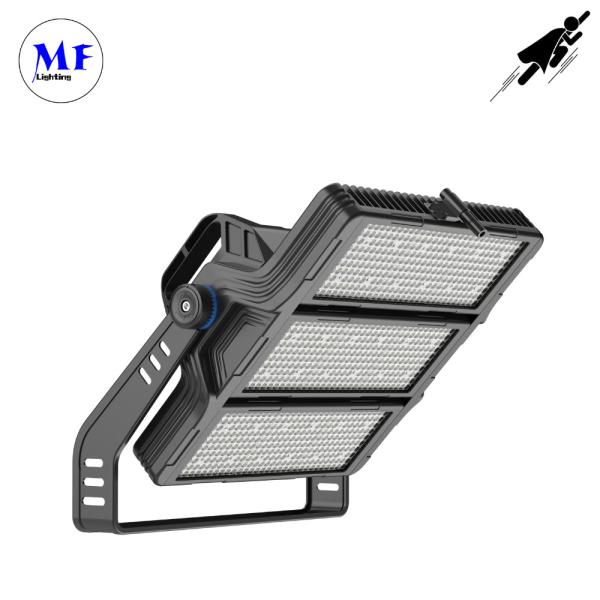

The MF Cowboy High Mast Light is an outdoor high pole lighting
fixture, crafted from high-strength aluminum alloy through
die-casting and equipped with premium LED light sources, offering
excellent heat dissipation performance. The fixture offers a
variety of power options and beam angles to choose from, and it
boasts an IP66 rating for protection against the harshest outdoor
environments. Moreover, it boasts a lifespan of up to 60,000 hours,
making it an efficient, energy-saving, and environmentally friendly
outdoor lighting solution.
 | 1.Constructed with high-strength aluminum alloy die-casting,
ensuring the fixture is robust and durable for outdoor conditions.
2.Fitted with premium LED light sources, achieving high luminous
efficacy up to 150lm/W.
3.Features an aluminum alloy die-cast heat sink for outstanding
heat dissipation, ensuring the long-term stable operation of the
LED light sources.
4.Offers a variety of power and beam angle options to meet various
lighting needs.
5.Boasts an IP66 protection rating for adaptability to diverse
harsh environments.
6.Delivers a long lifespan of up to 60,000 hours, reducing
maintenance costs. |
| Model No | MF-QCD-C400W | MF-QCD-C500W | MF-QCD-C600W | MF-QCD-C800W | MF-QCD-C1000W | MF-QCD-C1200W |
| Input Voltage | AC100-277V 50/60Hz | AC100-277V 50/60Hz | AC100-277V50/60Hz | AC100-277V 50/60Hz | AC100-277V 50/60Hz | AC100-277V50/60Hz |
| Output Voltage | DC42V | DC42V | DC42V | DC42V | DC42V | DC42V |
| Rated Power | 400W | 500W | 600W | 800W | 1000W | 1200W |
| Qty of LED | 864PCS*3030 | 864PCS*3030 | 864PCS*3030 | 1632PCS*3030 | 1632PCS*3030 | 1632PCS*3030 |
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| LED Brand | Lu'miled | Lu'miled | Lu'miled | Lu'miled | Lu'miled | Lu'miled |
| Luminous Flux | 60000lm±5% | 75000lm±5% | 90000|m±5% | 1200001m±5% | 1500001m+5% | 180000Im±5% |
| CRI | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 |
| CCT | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Beam Angle | 10/15/25/45/60/90° | 10/15/25/45/60/90° | 10/15/25/45/60/90° | 10/15/25/45/60/90° | 10/15/25/45/60/90° | 10/15/25/45/60/90° |
| Driver Brand | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN |
| THD | <10% | <10% | <10% | <10% | <10% | <10% |
| IK Rating | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Life Span | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs |
| Size | 522*509*389mm | 522*509*389mm | 522*509*389mm | 681*660*497mm | 681*660*497mm | 681*660*497mm |
| N.W | 16.90kg | 17.40kg | 17.90kg | 33.00kg | 34.00kg | 35.00kg |
| G.W | 18.90kg 19.40kg | 19.90kg | 37.00kg | 38.00kg | 39.00kg |
| Certification | ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CQC |
1.For your safety, please cut off the supply before install the
product.
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
