400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations

Ming Feng Lighting Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers

    Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers
    • Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers
    • Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers
    • Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers
    • Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers
    • Buy cheap 400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations from wholesalers

    400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations

    Ask Lasest Price
    Brand Name : MF
    Model Number : Ra 400W
    Certification : CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations

    400W IP66 LED Flood Light CE Certificate Waterproof Dustproof IK08 High Luminous Flux for Gas Stations


    Features:


    • IP66 Waterproof/ dustproof/ explosion proof/ IK08

    • Pure Aluminum shape good at heat dissipation.

    • Angle Bracket, easy to install by drill.

    • Easy replacement and installation.


    • 100,000 times switching cycle before failure.

    • SMD 3030 Ra>80/R9>0/SDCM<6


    • Total harmonic distortion < 15%



    Matters Needing Attention:


    1. Before installing the lighting fixtures, please read this instruction manual careful.


    2. The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.


    3. Lamps should always be installed or replaced carefully.


    4. Please check the local voltage in accordance with the product requirements before installation.


    5. Revamping only can be done when the power is off and the lamp is completely cooled down.


    6. When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.


    7. Don't cover the fixtures with flammable materials.


    8. Replace should be made by the manufactor of his service agent or certified electrician in order to avoid a hazard.


    Applications:

    Commercial Lighting Public Lighting Industrial Lighting


    Tunnel Tunnel Manufacture

    Supermarkets Airports Warehouses

    Large retailers Stadium Parking Lots

    School Train Stations Exhibition Centers

    Billboard Bus Stations Gas Stations

    Building Toll Stations

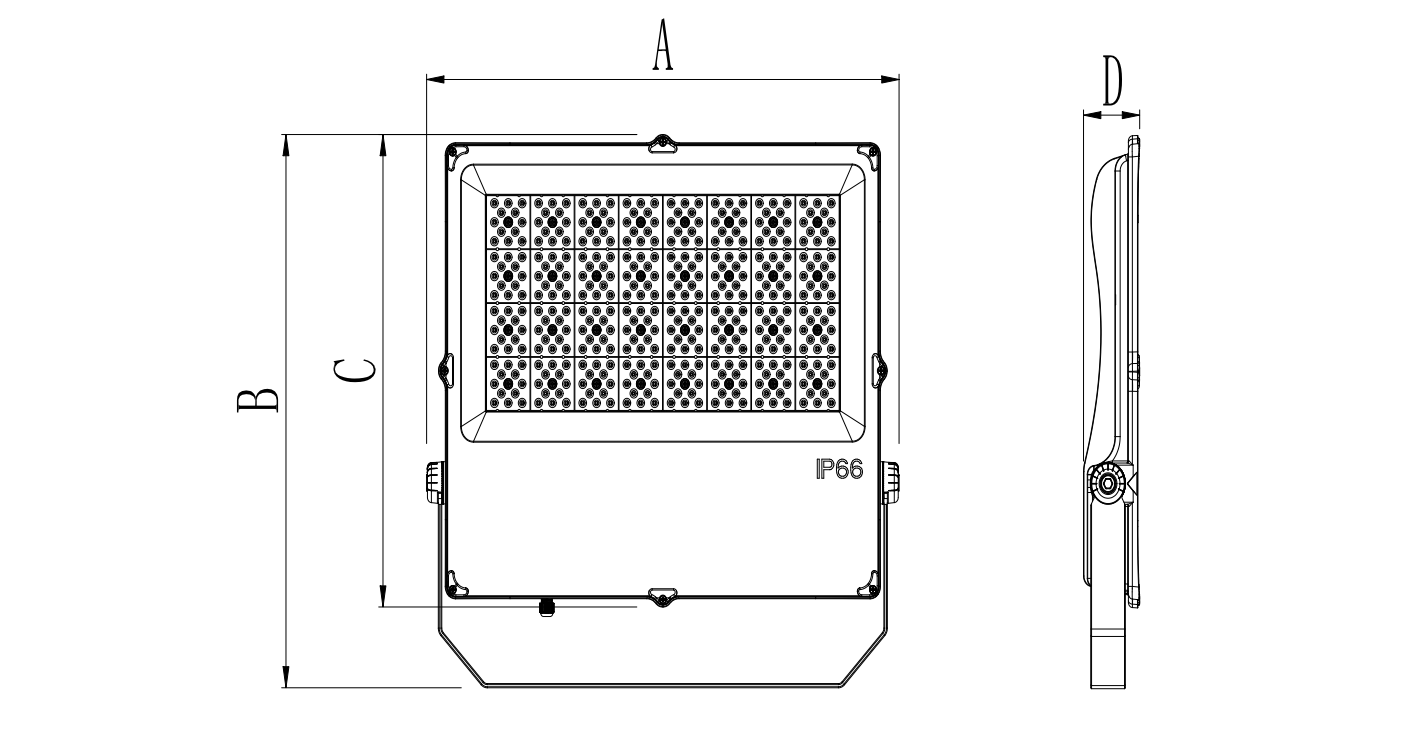

    Dimension:



    Model NO.Size A (mm)Size B (mm)Size C (mm)Size D (mm)
    20W12218215047
    30W16924820051
    50W22828823052
    100W27836430052
    150W39439432556
    200W39444537656
    250W39449742758
    400W54552344765


    Model NO.Size A (mm)Size B (mm)Size C (mm)
    20W84446.5
    30W112728
    50W14010010.5
    100W20010010.5
    150W20010010.5
    200W20010010.5
    250W20010010.5
    400W20010010.5

    Parameter:


    Model NO.Power (W)Light SourceLED QTYCCT (K)Lumen lm/wCRIBeam Angle
    20W203030164000K130>70/80120°
    30W303030324000K130>70/80120°
    50W503030484000K130>70/80120°
    100W1003030964000K130>70/80120°
    150W15030301604000K130>70/80120°
    200W20030302404000K130>70/80120°
    250W25030302404000K130>70/80120°
    300W30030303204000K130>70/80120°
    400W40030305104000K130>70/80120°

    CCT Range WW (3000K), NW(4000K), DW(5000K), CW(6500K)

    Beam Angle: 30°, 30°*90°, 60°, 90°, 120°


    ItemSymbolSpecification/Data
    Color IndexCRIRa>80, R9>0
    Luminous Efficacylm/w130lm/w
    Energy Efficiency Class/A++
    Color consistency in level/Max.6SDCM
    THD%<15%
    Starting timeS<0.5S
    Switching cycle before failure/>100,000 times
    Premature failure rate @1000h/0
    Lifespan/>50000hrs

    Installation:



    Packaging:


    Model NoSingle BoxPcs/CTNN.W./pcs(kg)G.W./CTN (kg)Meas (mm)
    20W1200.816405*275*290
    30W1101.212365*270*315
    50W1101.818475*310*315
    100W152.613390*305*315
    150W115.15.6440*420*115
    200W115.86.6490*420*115
    250W117.18.1540*420*115
    300W117.68.6540*420*115
    400W1110.812.3580*550*115

    Q1: What do you sell?
    A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

    Q2: Is it OK to print my logo on led light product?
    A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q3: How to deal with the faulty?
    A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

    Q4: Can I have a sample order for led light?
    A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

    Q5: How long time to ship the goods if place an order?
    A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
