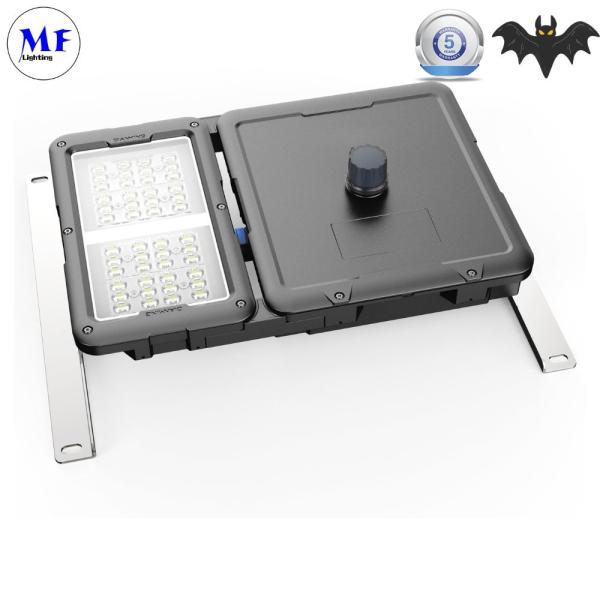

    IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine

    Ask Lasest Price
    Brand Name : MF
    Model Number : MFTL-T9
    Certification : CE, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 20,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine


    Factory Price 20W40W60W100W120W 130lm/w 140lm/w overpass textile factory library supermarket display rack warehouse LED Triproof Light



    The MF Tunnel Light T9 series is an efficient lighting solution designed specifically for underground spaces such as tunnels and bridges. The product range includes 10 power specifications from 40W to 450W, utilizing high-quality Lumiled' LED beads to ensure a long service life of up to 80,000 hours. The product offers three color temperature options: warm white, cool white, and natural white, with a color temperature range of 3000K to 6000K and a luminous efficacy of 140lm/W to 150lm/W. With an IP67 protection rating and an aluminum alloy housing, the product is suitable for various harsh environments.


    Enhanced Insulation Design
    The product features a reinforced insulation design that supports both Class I and Class II power supplies, ensuring electrical safety.

    Optional Stainless Steel Housing
    An optional stainless steel housing is available to effectively prevent electrochemical corrosion in extreme environments, thereby extending the service life.

    Next-Generation High-Brightness Outdoor LED
    The use of a next-generation high-brightness outdoor LED with lower current drive enhances the overall luminous efficiency by approximately 10% and reduces light decay.

    Simple and Convenient Installation
    The product offers simple and convenient installation with two mounting bracket options: ceiling and side wall, allowing for flexible selection based on actual needs.

    Powe40W50W60W80W100W
    Luminous Flux5600±5%Im7000±5%Im8400±5%Im11200±5%Im14000±5%Im
    LED Quantity48 pcs48 pcs48 pcs48 pcs48 pcs
    Luminous Efficacy150 Im/W140 Im/W
    LED5050
    Module Quantity1 module
    Power120W150W180W200W240W
    Luminous flux16800±5%Im21000±5%Im25200±5%Im28000±5%Im33600±5%Im
    LED quantity48 pcs96 pcs96 pcs96 pcs96 pcs
    Luminous Efficacy140 Im/W140 ImN
    LED50505050
    Module quantity1 module2 modules
    Power270W300W350W400W450W
    Luminous flux37800±5%Im42000±5%Im49000±5%Im56000±5%Im63000±5%Im
    LED quantity144 pcs144 pcs192 pcs192 pcs192 pcs
    Luminous Efficacy140 Im/W140 ImW
    LED50505050
    Module Quantity3 modules4 modules
    colorWarm WhiteNatural WhiteCold whiteCold white
    color temperature3000±300K4000±300K5000±300K5700±300K
    color rendering index70
    Beam angle85°x155°;102°x155°;125°x148°;23°×105°
    Main materialAlloy aluminum,optical PC,stainless steel
    Service life>80000h
    Storage temperature-30ºC~+60ºC
    Operating temperature-30°ºC~+50ºC
    input frequency47~63HZ
    nput voltage-100~240V AC

    The MF Tunnel Light T9 series is the ideal choice for applications that demand extensive and premium lighting solutions, including tunnels, underground parking garages, urban overpasses, and highways. Boasting superior luminous efficiency, an extended lifespan, an IP67 rating for robust protection, and a modular build, this series ensures steadfast and dependable illumination tailored to diverse environments. Its versatile design and user-friendly installation further streamline project execution. Engineered to excel in challenging settings, the T9 series is especially adept at enhancing tunnel, overpass, and highway lighting, delivering consistent illumination that enhances traffic safety and efficiency.



    ModelPowerModule
    Qty
    PACKING(LxWxH)BEPAWeightPackaging size
    (Ix wxh)
    MFTL-T9-04040W1pc558*430*104.5402.5mm524mm0.2399m²8.92kg540*395*120(mm)
    MFTL-T9-05050W8.92kg
    MFTL-T9-06060W9.03kg
    MFTL-T9-08080W9.03kg
    MFTL-T9-100100W9.03kg
    MFTL-T9-120120W9.16kg
    MFTL-T9-150150W2pcs748*430*104.5402.5mm714mm0.3216m²11.30kg730*395*120(mm)
    MFTL-T9-180180W11.34kg
    MFTL-T9-200200W11.34kg
    MFTL-T9-240240W11.51kg



    FAQ

    Q1: What products do you offer?
    A: We offer a wide range of products, including LED Indoor light and LED Outdoor light.

    Q2: Do you offer customization services?
    A: Yes, we offer
    customization services for many of our products.

    Q3: What are your payment terms?
    A: Our
    payment terms are typically 30% deposit and 70% balance before shipment,depends on product.

    Q4: What is your lead time?
    A: Our lead time varies depending on the product and order quantity.

    Q5: What is your quality control process?
    A: We have a strict quality control process in place to ensure that every product meets our high-quality standards.


    after-sales issues


    • We offer a free 5-year warranty from the date of purchase, which covers any defects in materials and workmanship. This warranty does not cover damage caused by mishandling or improper use, such as failure and damage caused by unpacking the product, or failure caused by falling and touching during handling and use.
    • It is important that the product is operated in accordance with the instructions provided to prevent any failure that may occur due to improper use. Therefore, any failure caused by the failure to operate the product in accordance with the instructions is not covered by the warranty.
    • After the warranty period, we offer maintenance services at the cost of materials only for any parts that may need to be replaced. However, any additional labor costs incurred during the maintenance process will not be covered by the warranty.
    • We are committed to providing exceptional customer service and support, and our team is available to answer any questions or concerns you may have regarding the product warranty or maintenance process.
    • We believe that our warranty policy demonstrates our commitment to providing high-quality products and ensuring customer satisfaction. With our warranty, you can be confident in the quality and reliability of our product.
