    AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial

    Ask Lasest Price
    Brand Name : MF
    Model Number : MFTL-T9
    Certification : CE, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 20,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial

    Factory Price IP67 Waterproof 140lm/W 40W50W80W100W150W200W400W480W Outdoor Industrial LED Tunnel Light

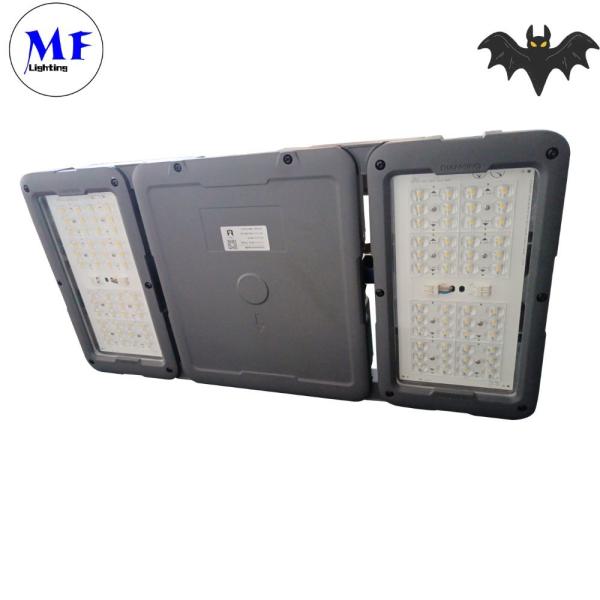

    The MF Tunnel Light T9 series is a robust lighting solution crafted for the unique demands of underground settings such as tunnels and bridges. This series boasts a spectrum of ten power options, ranging from 40W to 450W, and is equipped with superior Lumileds LED technology, ensuring a long-lasting performance of up to 80,000 hours. Offering a selection of three color temperatures—warm white, cool white, and natural white—across a spectrum of 3000K to 6000K, with luminous efficacies of 140lm/W to 150lm/W, these lights accommodate a wide range of lighting needs. Designed with an IP67 rating and encased in durable aluminum alloy, these fixtures are built to endure the rigors of diverse and challenging environments.


    AEnhanced Insulation System
    Our product features a sophisticated insulation system that supports both Class I and Class II power supplies, ensuring an unparalleled level of electrical safety.
    Stainless Steel Housing Upgrade
    To withstand severe environmental conditions, we provide an optional upgrade to a stainless steel housing that effectively combats electrochemical corrosion, significantly extending the product's service life.

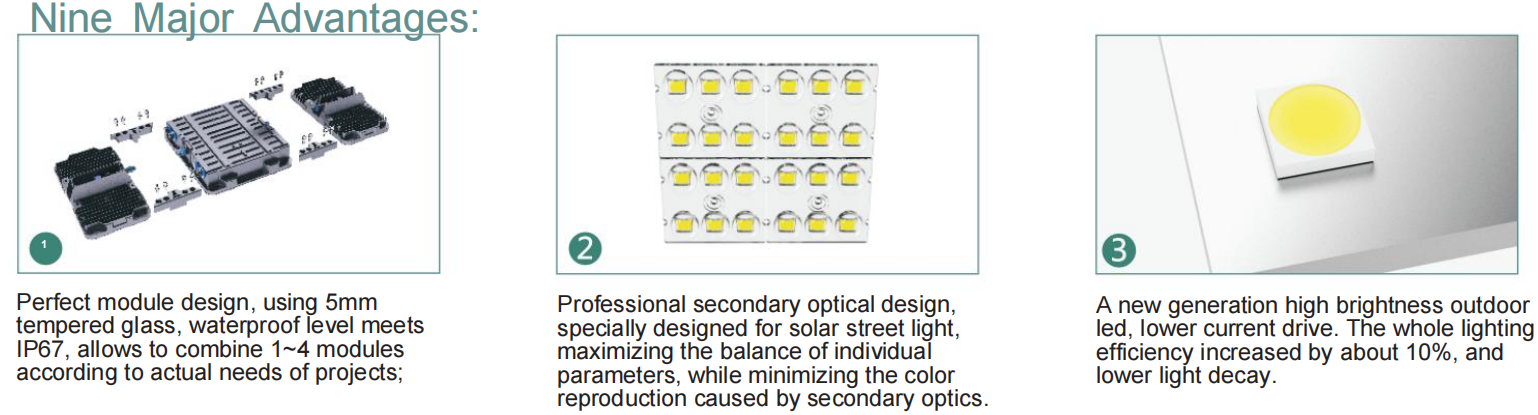

    Next-Generation High-Brightness LED
    Outfitted with the latest high-brightness LED technology, which operates on a lower current, our product achieves a roughly 10% enhancement in overall luminous efficiency while also minimizing light output decline over its lifespan.
    Streamlined Installation Process

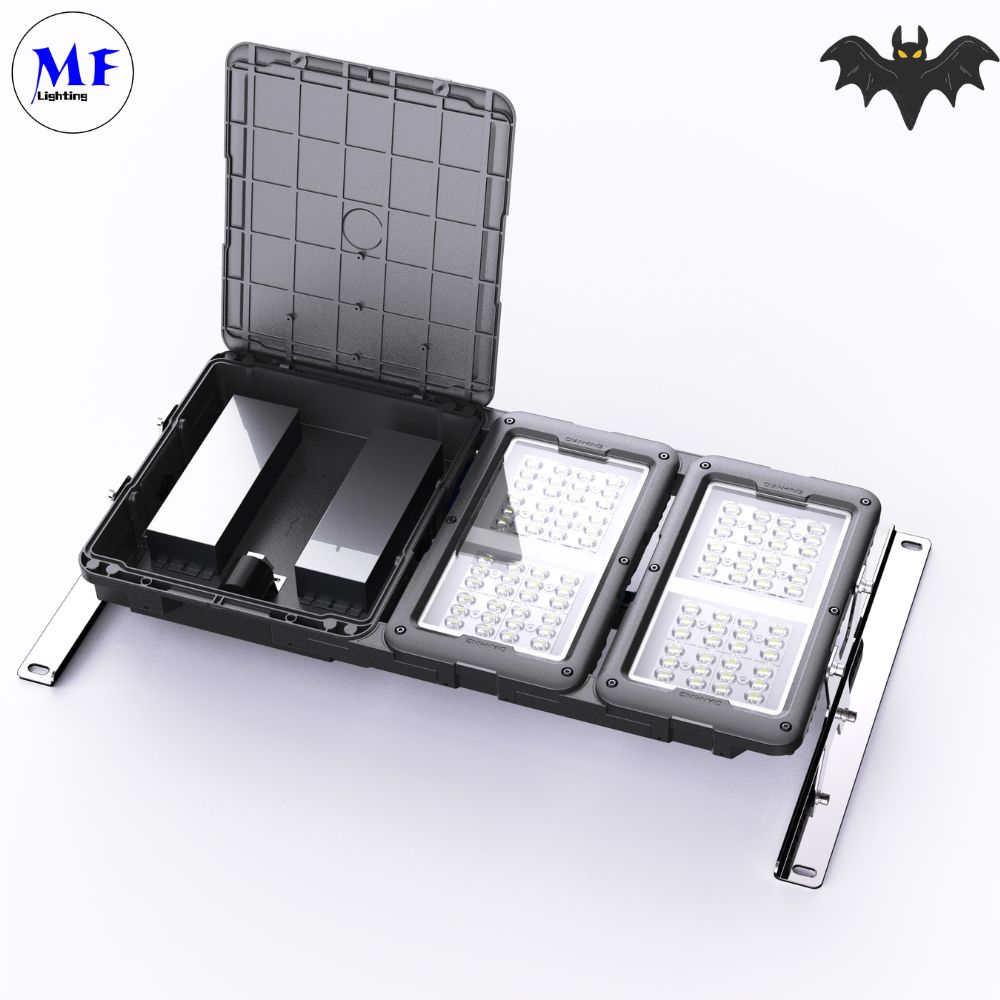

    The product is designed with two mounting bracket options—ceiling and side wall—for a hassle-free and versatile installation, easily adapting to a variety of setting and simplifying the setup process.

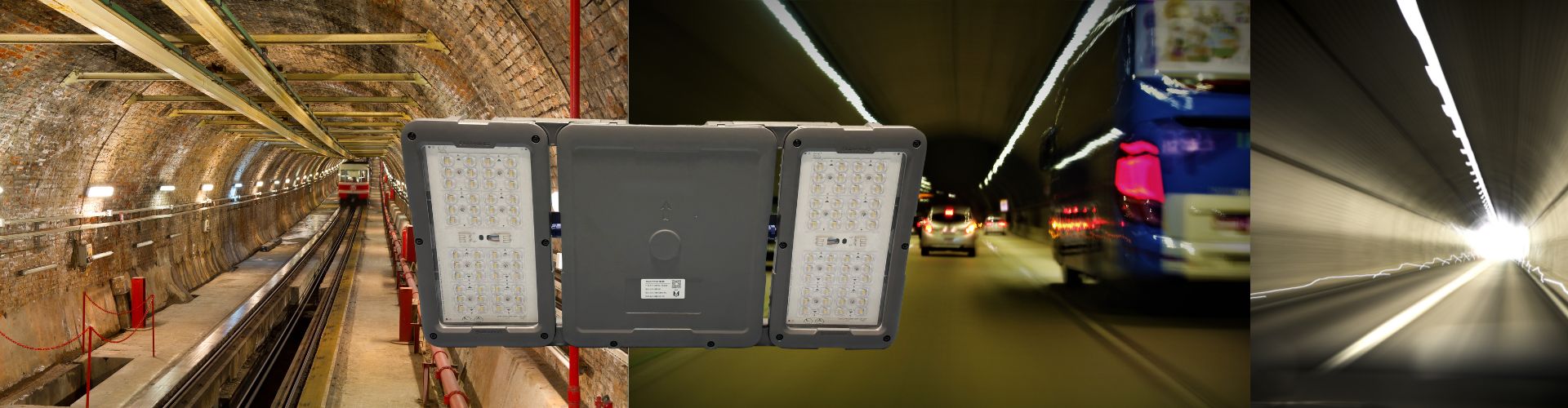

    The MF Tunnel Light T9 series is tailor-made for extensive and challenging lighting requirements, such as in tunnels, underground parking structures, urban overpasses, and highways. With its exceptional luminous efficiency, long lifespan, IP67 protection grade, and modular build, this lighting system provides reliable and consistent illumination across a range of environments. Its adaptable design and user-friendly installation process facilitate smooth project implementation. Specifically designed for durability, it is particularly suited for demanding applications such as tunnel interiors, overpass lighting, and highway lighting, where it ensures stable lighting performance and improves traffic safety.


    Powe40W50W60W80W100W
    Luminous Flux5600±5%Im7000±5%Im8400±5%Im11200±5%Im14000±5%Im
    LED Quantity48 pcs48 pcs48 pcs48 pcs48 pcs
    Luminous Efficacy150 Im/W140 Im/W
    LED5050
    Module Quantity1 module
    Power120W150W180W200W240W
    Luminous flux16800±5%Im21000±5%Im25200±5%Im28000±5%Im33600±5%Im
    LED quantity48 pcs96 pcs96 pcs96 pcs96 pcs
    Luminous Efficacy140 Im/W140 ImN
    LED50505050
    Module quantity1 module2 modules
    Power270W300W350W400W450W
    Luminous flux37800±5%Im42000±5%Im49000±5%Im56000±5%Im63000±5%Im
    LED quantity144 pcs144 pcs192 pcs192 pcs192 pcs
    Luminous Efficacy140 Im/W140 ImW
    LED50505050
    Module Quantity3 modules4 modules
    colorWarm WhiteNatural WhiteCold whiteCold white
    color temperature3000±300K4000±300K5000±300K5700±300K
    color rendering index70
    Beam angle85°x155°;102°x155°;125°x148°;23°×105°
    Main materialAlloy aluminum,optical PC,stainless steel
    Service life>80000h
    Storage temperature-30ºC~+60ºC
    Operating temperature-30°ºC~+50ºC
    input frequency47~63HZ
    nput voltage-100~240V AC







    FAQ

    Q1: What products do you offer?
    A: We offer a wide range of products, including LED Indoor light and LED Outdoor light.

    Q2: Do you offer customization services?
    A: Yes, we offer
    customization services for many of our products.

    Q3: What are your payment terms?
    A: Our
    payment terms are typically 30% deposit and 70% balance before shipment,depends on product.

    Q4: What is your lead time?
    A: Our lead time varies depending on the product and order quantity.

    Q5: What is your quality control process?
    A: We have a strict quality control process in place to ensure that every product meets our high-quality standards.


    after-sales issues


    • We offer a free 5-year warranty from the date of purchase, which covers any defects in materials and workmanship. This warranty does not cover damage caused by mishandling or improper use, such as failure and damage caused by unpacking the product, or failure caused by falling and touching during handling and use.
    • It is important that the product is operated in accordance with the instructions provided to prevent any failure that may occur due to improper use. Therefore, any failure caused by the failure to operate the product in accordance with the instructions is not covered by the warranty.
    • After the warranty period, we offer maintenance services at the cost of materials only for any parts that may need to be replaced. However, any additional labor costs incurred during the maintenance process will not be covered by the warranty.
    • We are committed to providing exceptional customer service and support, and our team is available to answer any questions or concerns you may have regarding the product warranty or maintenance process.
    • We believe that our warranty policy demonstrates our commitment to providing high-quality products and ensuring customer satisfaction. With our warranty, you can be confident in the quality and reliability of our product.
