Features
1. CCT+3 power switchable , One lamp can instead of 9 items , save a
lot of stock funds .
2. Elegant appearance and patent design,Imported fire-proof PC material, safer and
more reliable.
3. Imported fire-resistant PC material, safer and more reliable.
4. Barb-type mounting clip, both anti-drop and easy to install.
5. A variety of installation methods: lamps can be linkable or not,
ceiling installation,
hoisting, wire rope hanging, etc.
6. Pass EMC power supply, meet the certification requirements.
7. IP69K, IK08, IP66 .Matters needing attention
1. Before installing the lighting fixtures, please read this
instruction manual carefully.
2.The lighting fixtures should be installed, connected and tested by
a certified installer based on the local regulations.
3.Lamps should always be installed or replaced with care.
4.Please check the local voltage in accordance with the product
requirements before using the product.
5.Relamping only can be done when the power is off and the lamp is
completely cooled down.
6.When a lamp is to be cleaned, make the power off and let it cool
down completely.Clean the fixture with a soft cloth and a standard
PH neutral detergent. Stainless steel finishing should be
maintained regularly
7.Misuse of, or changes to the fixture shall nullify the guarantee.
8.Don't cover the fixtures with flammable materials.
9.Exclusively replaced by the manufacturer or his service agent or
the similar qualified person in order to avoid a hazard
| Model | Power adjustavle(W) | Light Source | LED QTY(pcs) | Lm/W | CRI | Beam Angle |
| MF-LI06H18W-GC1 | 10/14/18 | 2835 | 240 | 140 | >80 | 180 |
| MF-LI12H36W-GC1 | 20/28/36 | 2835 | 432 | 160 |
| MF-LI15H50W-GC1 | 35/42/50 | 2835 | 624 | 175 |
Installation steps:
1.Drill Ø4mm holes on the surface
2.Put the expansion tube into the drilled hole
3.Using screws to lock the hook into the expansion tube
4.Align the lamp with the hook and lock it
Installation steps:
1. According to the three holes of the sling fixing, drill Ø4mm
holes on the surface, then put the expansion tube into the drilled hole,lastly use screws to lock the sling fixings.
2.According to the last picture, use a screwdriver to lock the hook
into the end of the sling.

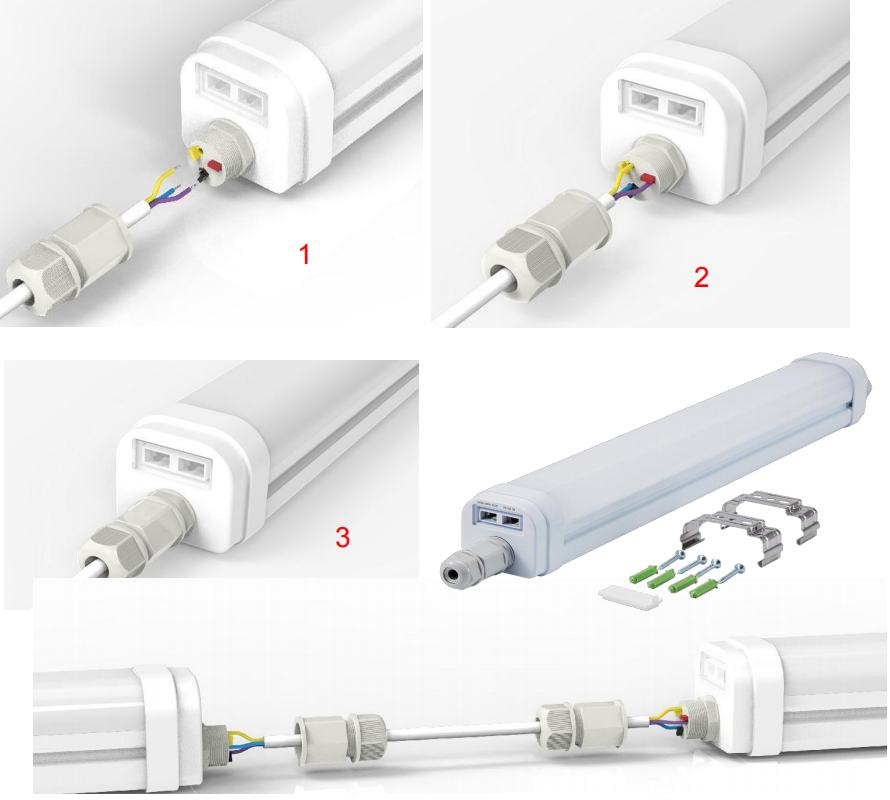

1.Pass the wire to be installed through the waterproof nut (Figure
1),
2.insert the corresponding brown wire into the red hole,
3. the blue wire into the black hole, and the yellow-green ground
wire into the yellow hole (Figure 2),
4. finally tighten the waterproof connector (Figure 3). If the cord
cannot be inserted directly, press the corresponding button before
inserting the cord
Industrial Spaces: LED Triproof lights are widely used in industrial environments
such as warehouses, factories, production areas, and workshops.
They provide bright and uniform illumination while being resistant
to dust, moisture, and vibrations.
Parking Garages: LED Triproof lights are an excellent choice for parking garages
and car parks. They offer efficient lighting with high lumen
output, ensuring clear visibility and enhancing safety for drivers
and pedestrians.
Retail Stores: LED Triproof lights can be used in retail settings, including
supermarkets, malls, and shops. The lights provide excellent color
rendering, illuminating products and displays effectively, which
helps in enhancing the shopping experience.
Cold Storage Facilities: LED Triproof lights are suitable for cold storage areas and
refrigerated warehouses. They are designed to withstand low
temperatures and provide reliable lighting in freezing conditions.
Food Processing Areas: LED Triproof lights are commonly used in food processing plants
and areas where cleanliness and hygiene are crucial. They are
resistant to water, chemicals, and contaminants, ensuring safe and
efficient lighting.
Metro Stations and Tunnels: LED Triproof lights are suitable for underground transportation
systems such as metro stations and tunnels. They offer durable and
reliable lighting solutions in harsh environments and ensure
passenger safety and comfort.
Hospitals and Healthcare Facilities: LED Triproof lights can be used in healthcare facilities,
including hospitals, clinics, and laboratories. They provide
uniform and flicker-free lighting, contributing to a comfortable
and visually appealing environment for patients and staff.
Ming Feng Lighting Co.,Ltd is one of the leading LED light product, located in Guangdong
Province, China. Established in year 2009 and has more than 14
years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED
outdoor lamp. For the LED indoor light, we are producing the LED Triproof Lights, LED Vapor Tight Lights,LED down lights ,LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED sports lights and some of outdoor LED landscape light.With the rapid growth of our sales volume in the market, our
R&D are expanding quickly to meet the market demands.
Our main market is in European, South American and North American.
Our factory locates between Shenzhen port and Guangzhou, it's
convenient to visit our factory and delivery the container to all
around the world based on Shenzhen port.
Ming Feng Lighting Co., Ltd warmly welcome all the partners visit our factory and share the
ideas of the LED light. Ming Feng Lighting factory stays with you
all the time to share the happiness of the LED light, let's work
together to create an outstanding future.
HISTORY
Ming Feng Lighting Co.Ltd factory established in year 2009 and has 14 years great experience
in exporting LED lighting products. We dedicate ourselves in the
LED lighting area to develop the market-oriented LED light product.
We are proud of that, our factory can manufacture the outstanding
LED light with high quality standard.
SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the
world, Our LED light is in high quality standard at reasonable and
competitive price, our designer and engineer help our LED light in
tasteful design and excellent performance.We are able to offer our
valuable clients:
★ OEM/ODM Serivce
★ Photometric/IES file
★ Dialux simulation design
★ PCB Design/Driver Design
★ Heat Management/Optical Design
★ Industry Design
★ Market Support
★ 3D Printing
★ Multiple Listing/Private Label.
