500W IP66 67200lm±5% 3000K-6500K Ironman Family LED High Mast Light for Sport Court/Airport/Parking Lot
Product Description:
- IP66 500W LED High Mast Light
- Input: AC100-277V 50-60Hz
Beam Angle: 10/25/45/60/90° 130*30*60/65*25*60°
- CCT: 3000K-6500K
- PF: >0.95
- Lifespan: >=50000Hrs
Technical Spec:
| Model No. | MF-1RF-250w | MF-1RF-500w | MF-1RF-750w | MF-IRF-1000w | MF-IRF-1200w |
| Itrput Voltage | AC100-277v 50/6Hz | AC100-277v 50/6Hz | AC100-277v 50/6Hz | AC100-277v 50/6Hz | AC100-277v 50/6Hz |
| Output Voltage | Dc42v | DC42v | DC42v | DC42v | oC42v |
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
Qty of LED | 343PCS*3030 | 686PCS*3030 | 1029PCS*3030 | 1372PCS*3030 | 1715PCS*3030 |
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| LED BRAND | Lu-mileds | Lu-mileds | Lu-mileds | Lu-mileds | Lu-mileds |
| Luminous Flux | 33600lm±5% | 67200lm±5% | 100800lm±5% | 134400lm5% | 168000lm±5% |
| CRI | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,90 | Ra>70,80,9o |
| CCT | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Beam angle | 10°/25°/45°/60°/90°/130*30*60° |
| Driver Brand | Mean-Well/So-Sen |
| THD | <10% |
| IK RATE | IK08 |
| IP RATE | IP66 |
| Life span | 50000Hrs |
| U-L/ETL/DLC/TuV/CB/ENEC/CE/SAA/FCC/RoHS/coc |
Main Features:
Lumiled chips, high brightness, low light decay & long life-time
International driver brand, overheat protection, high convert
efficiency, high PF & surge protection, (1-10V,DALI2.0)
Die-casting technology with ADC12, excellent thermal management and
balance the internal & external temperature, reduce chip Tj and
light decay.
Optical UV resistant PC lens with 94% light transmitance, IK08.
Light Distribution: 10°/25°/45°/60°/90°/130*30*60°/65*25*60°
Bracket Installation, operation temperature: -35C- +50C

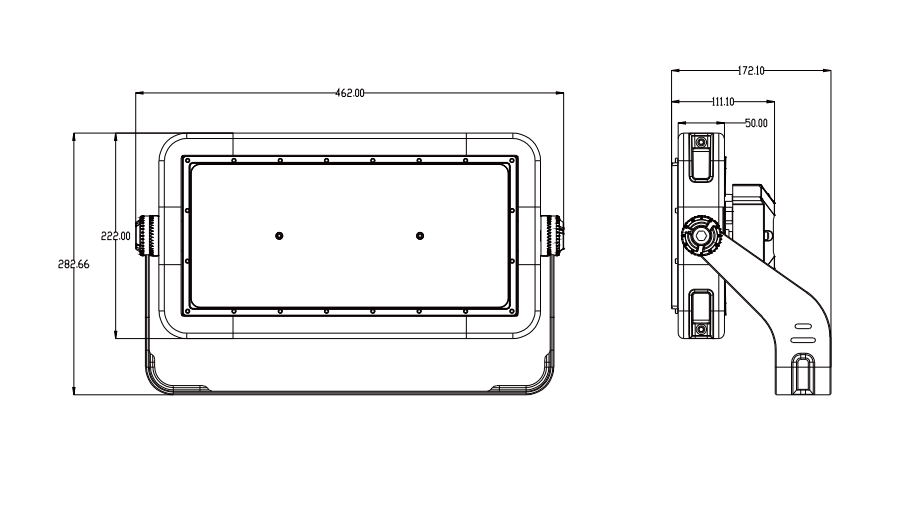

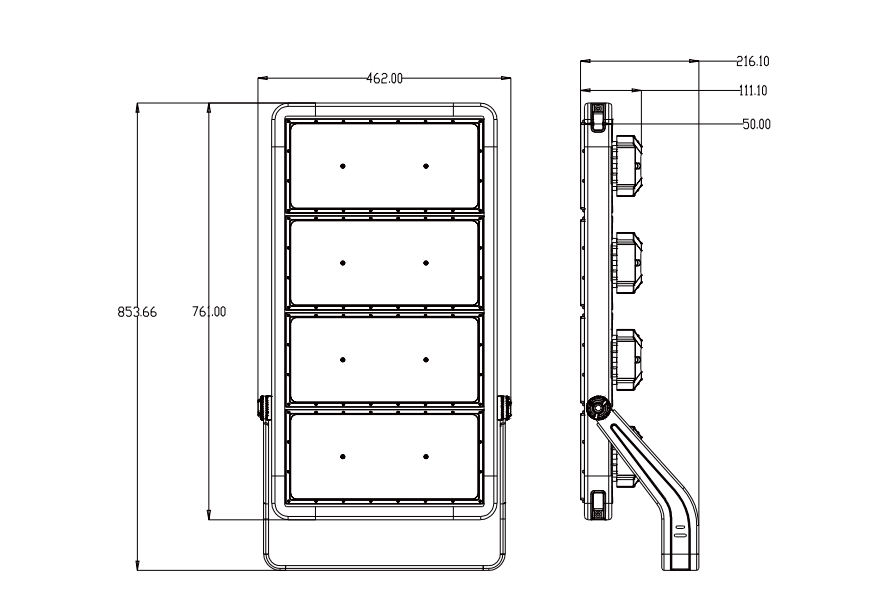

Dimensions:
250W
500W
750W
1000W
1200W
Accessories:
Anti-light Cover, 10KV Lighting Arrestor

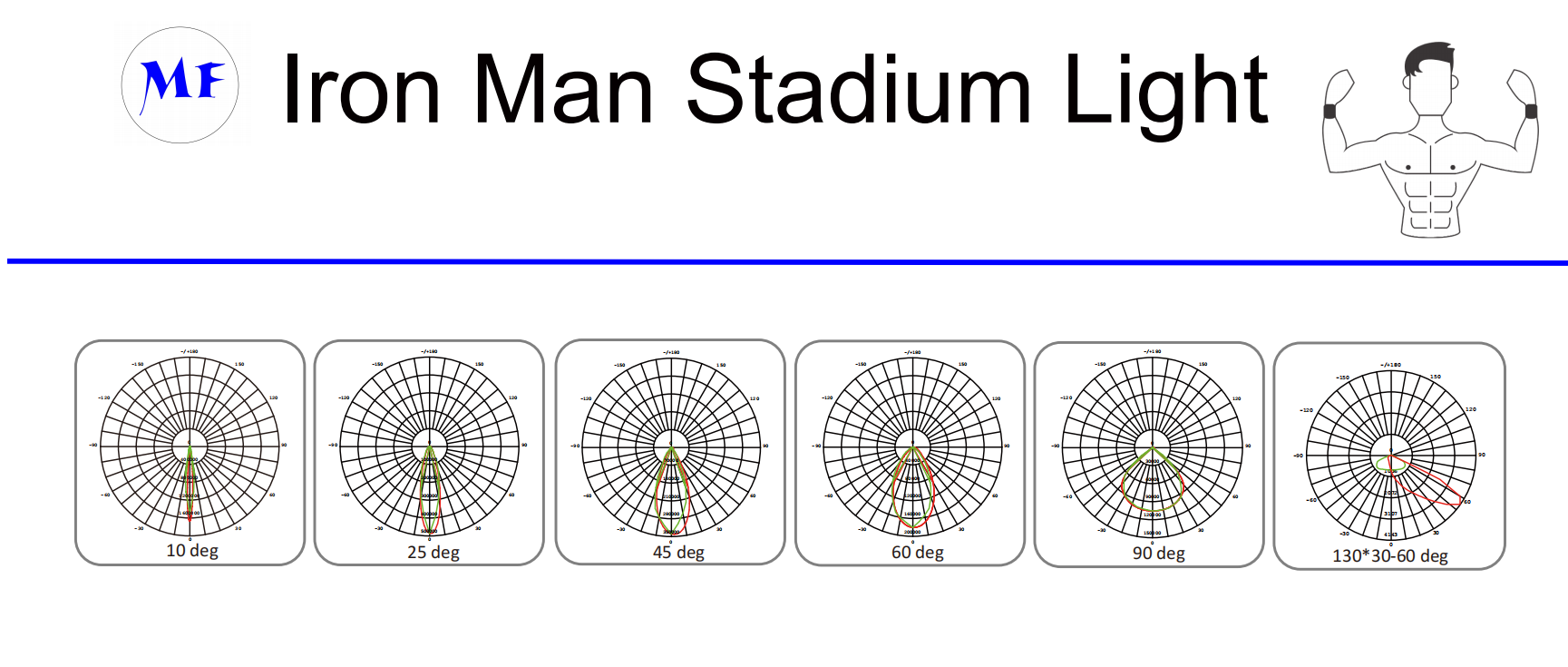

Light Distirbution Curve:

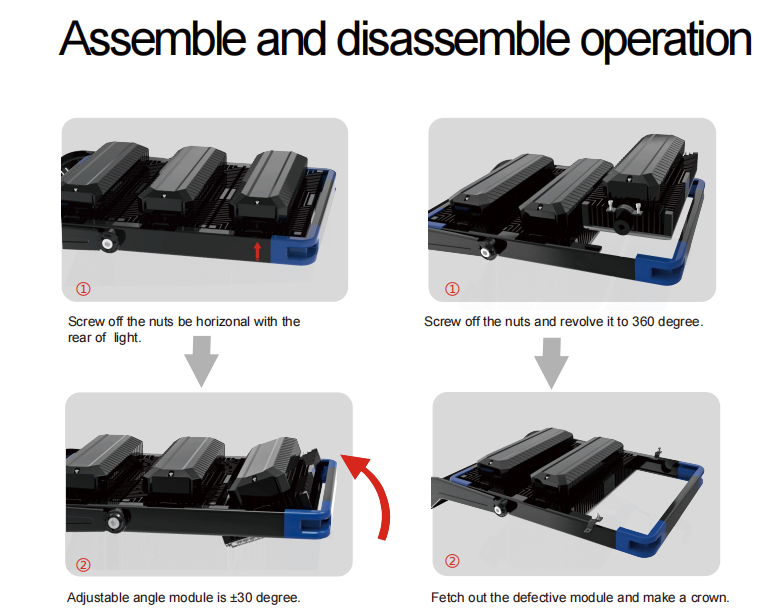

Installation & Package:
Application Area:
Roads and highways
Parking lots
Sports stadiums
Railroad yards
Shipyards
Warehouses
Truck stops and rest areas
Outdoor parks and recreation areas
Playgrounds
Storage facilitie
