IP65 100W/150W/200W/300W LED High Bay Lighting High Bay Led Light
Fixtures Led UFO High Bay
Quick Detail:
- IP66 IK08 100W/150W/200W/240W LED High Bay Light
- Input:AC100-277V, 50/60Hz
- Luminous Flux: 15000±5% LM 22500±5% LM 30000±5% LM 36000±5% LM
- CRI: >70, 80, 90
- PF: >0.95
- Lifespan: ≧50,000Hrs
Options:
1. Aluminum Reflector
2. 1-10V /DALI Dimming
3. Microwave Sensor
4. Emergency Kits
5. 60/90/110 degree lens
6. Adjustable mounting bracket
7. Safety Steel Rope
8. CCT & Power Adjustable

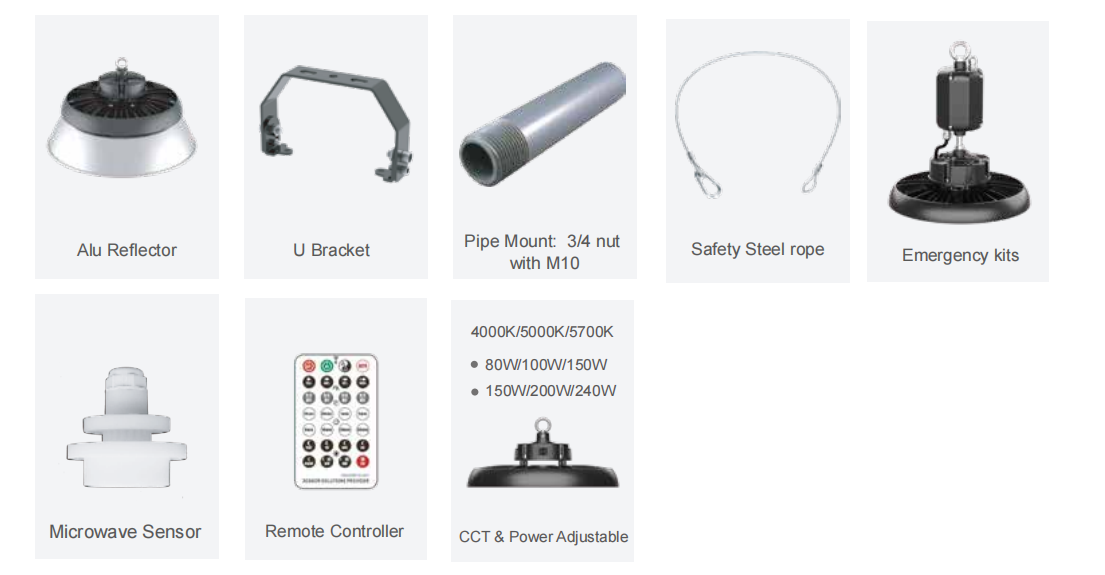

Accessories:
Specifications:
| Product | MF-UFO-H100W | MF-UFO-H150W | MF-UFO-H200W | MF-UFO-H240W |
| Nominal Wattage | 100w | 150w | 200w | 240w |
| Number of LEDs | 210pcs(2835) | 300pcs(2835) | 375pcs(2835) | 430pcs(3030) |
| LED Type | Lumiled | Lumiled | Lumiled | Lumiled |
| Input Voltage | AC100-277V 50/60Hz | AC100-277V 50/60Hz | AC100-277V 50/60Hz | AC100-277V 50/60Hz |
| Dimming | 1-10V /DALI Dimming | 1-10V /DALI Dimming | 1-10V /DALI Dimming | 1-10V /DALI Dimming |
| Operating Temperature | -35ºC~ 50ºC | -35ºC ~ 50ºC | -35ºC~ 50ºC | -35ºC ~ 50ºC |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <10% | <10% | <10% | <10% |
| Lumens Flux | 15000±5% LM | 22500±5% LM | 30000±5% LM | 36000±5% LM |
| Luminaire Efficacy | 140±5% LM/W | 140±5% LM/W | 140±5% LM/W | 140±5% LM/W |
| CRI | >80 | >80 | >80 | >80 |
| CCT | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Rating | IP66 IK08 | IP66 IK08 | IP66 IK08 | IP66 IK08 |
| Lifetime | >50,000h | >50,000h | >50,000h | >50,000h |
Size | 270*149mm | 300*158mm | 330*164mm | 330*164mm |
N.W | 2.50kg | 2.80kg | 4.00kg | 4.10kg |
G.W | 2.90kg | 3.40kg | 4.65kg | 4.75kg |
| Certifications | ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CCC |
Competitive Advantage:
Lightweight, impact resistant fifixture is designed for easy and
safe installation.
Die-casting technology by ADC12, excellent thermal management,
reduce the temperature difference and ensure the lumen
depreciation.
Multiple mounting options for a variety of applications, Pendant,
loop.
High strength polycarbonate lens, achieve IK 08, Anti-UV,
transmitiance > 94%
Multiple lighting distributions: 60°/90°/120°
Top brand LED chip and driver, ensure the product quality and
lifetime
Ingress Protection Rating: IP66
Operation Temperature: -35ºC-+50ºC
Up to 140lm/W; 170lm/W;190lm/W
3000K, 4000K,5000K,5700K color temperature
CRI >80
Offered in 100, 150, 200 and 240W

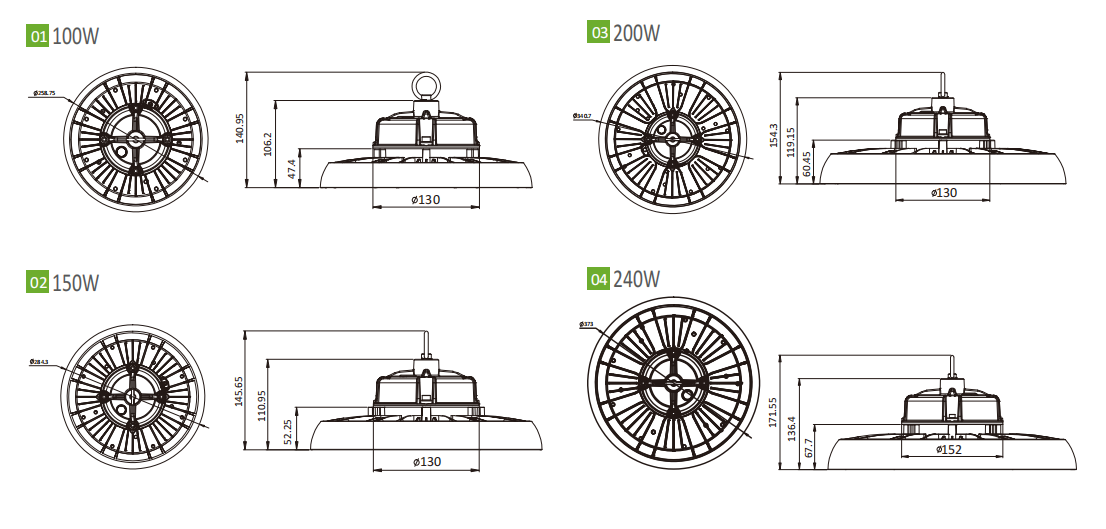

Dimensions:
Photometric:
Installation Instructions:

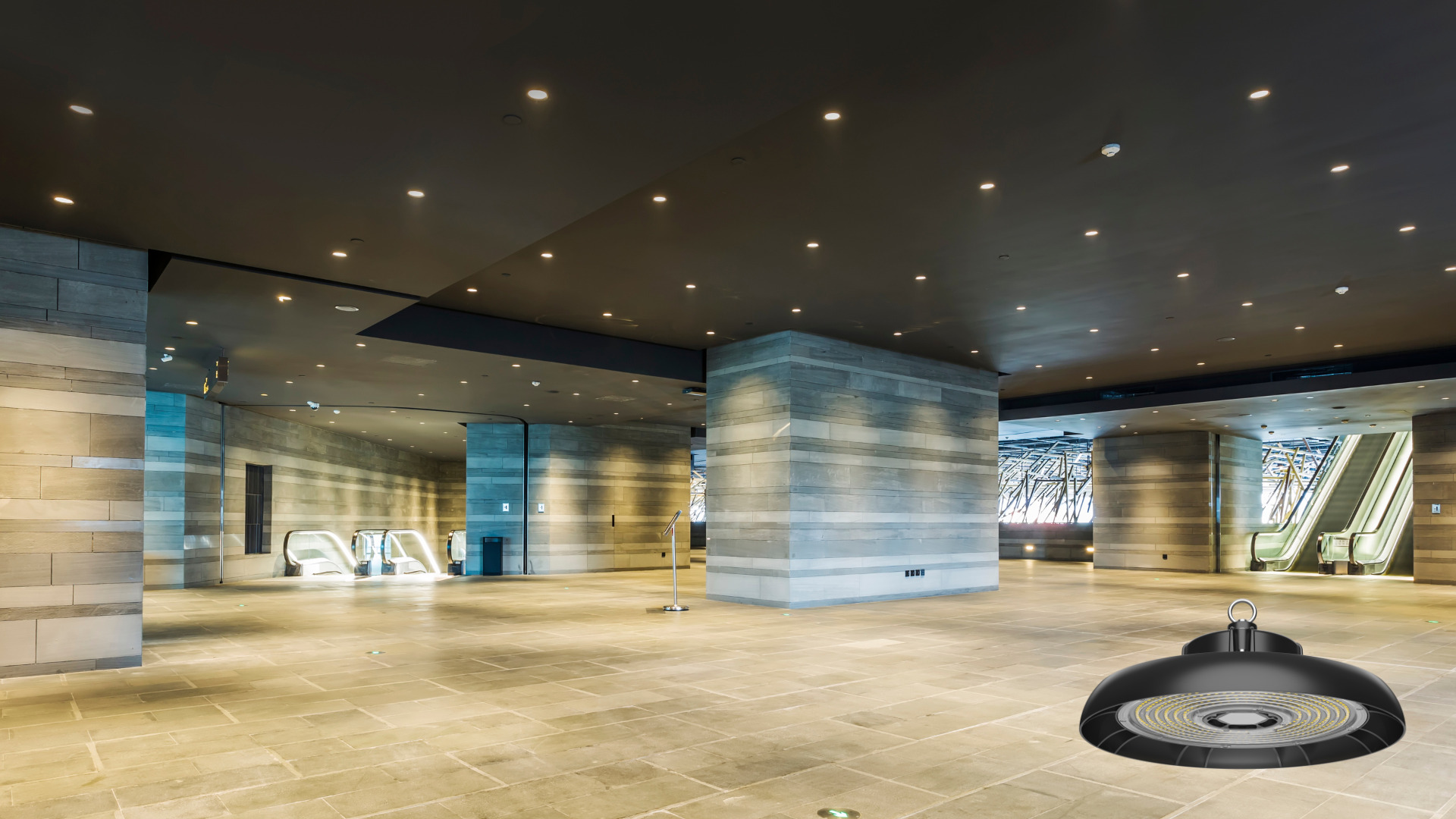

Applications:
High bay lights are used in large spaces with high ceilings, such
as warehouses, factories, gymnasiums, and retail stores to provide
bright, uniform illumination over a large area. They are also used
in parking garages.
Quality Service:
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the
world, Our LED light is in high quality standard at reasonable and
competitive price, our designer and engineer help our LED light in
tasteful design and excellent performance.We are able to offer our valuable clients:
★ OEM/ODM Service
★ Photometric/IES file
★ Dialux simulation design
★ PCB Design/Driver Design
★ Heat Management/Optical Design
★ Industry Design
★ Market Support
★ 3D Printing
★ Multiple Listing/Private Label.

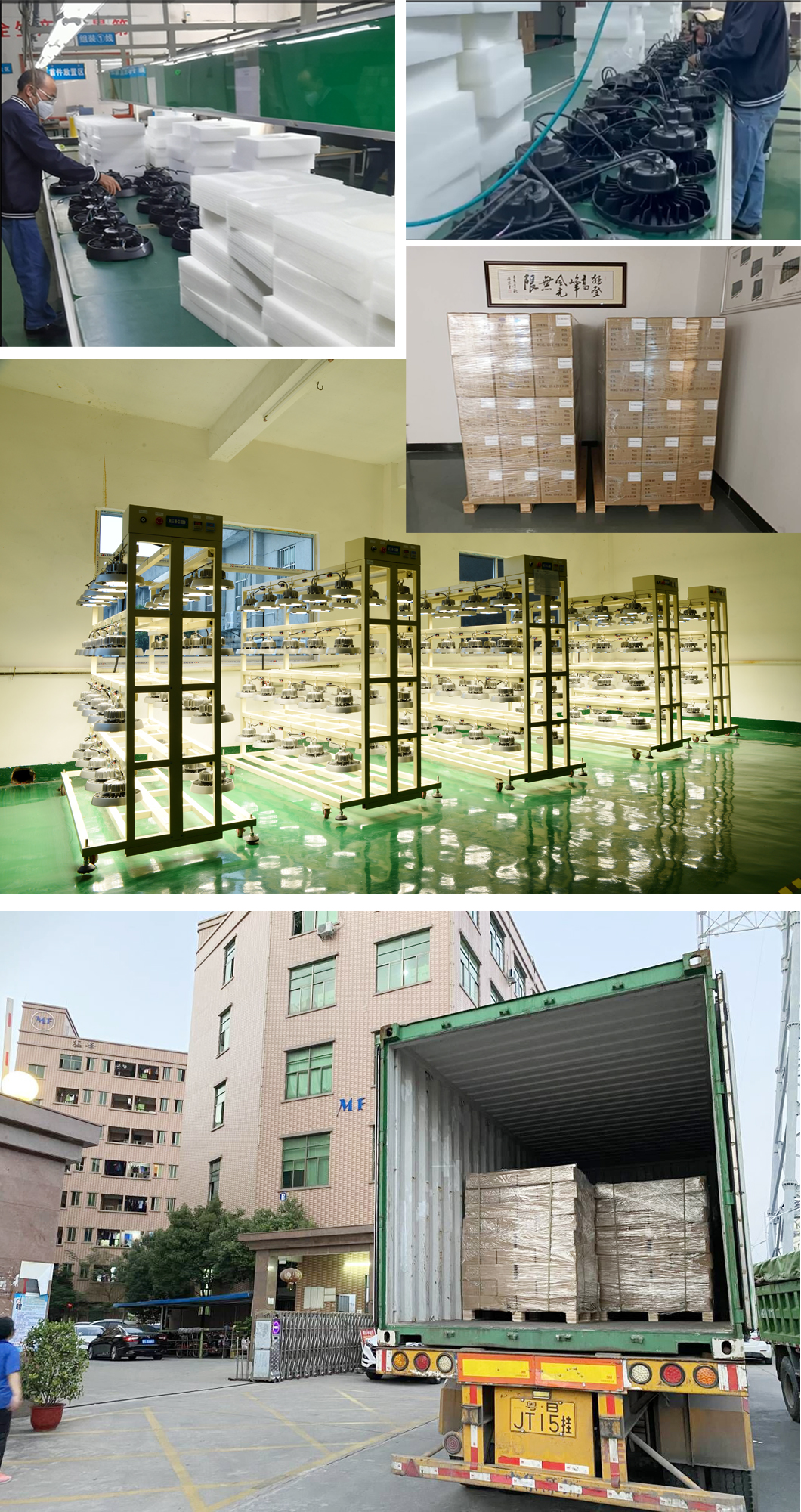

Production Line: MingFeng Lighting's production line is equipped with advanced
technology and equipment, and we have multiple production lines to
ensure efficient and high-quality manufacturing of our lighting
products.
FAQ:
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light,
explosion proof light, tri-proof light, downlight, and other
lighting products, as well as responsible services and reliable
after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new
order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One
sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for
bulk order, but sometimes depend on the order quantity.
