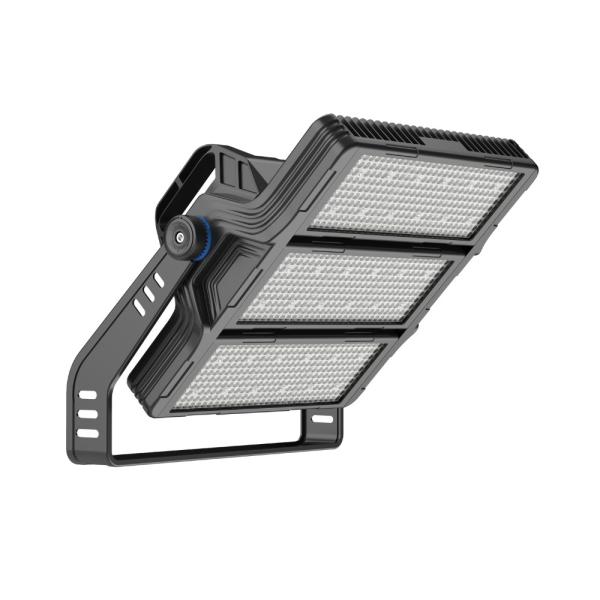

    Stadium LED High Mast Flood Light Sport Field IP66 160LM/W 400W 600W 800W 1000W 1200W 1800W

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF-QCDG-SXXXW
    Certification : CE,RoHS
    Price : Ex-work/FOB price
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000pcs/Month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Stadium LED High Mast Flood Light Sport Field IP66 160LM/W 400W 600W 800W 1000W 1200W 1800W

    LED High Mast Flood Light Staddium Football Pitches Sport Field Tennis Court Golf Course Sport Field IP66


    Model N0.MF-QCDG-S400WMF-QCDG-S500WMF-QCDG-S600WMF-QCDG-S800WMF-QCDG-S1000WMF-QCDG-S1200WMF-QCDG-S1500WMF-QCDG-S1800w
    lnputVoltageAC100-277V
    output VoltageDC42
    Rated Power400W500W600W800W1000W1200W1500W1800W
    Qty of LED840PCS*3030840PCS*3030840PCS*3030168CPCS*30301680PCS*3030168OPCs*30302520PCS*30302520PCs*3030
    PF>0.95
    LED BrandWorld class level
    Luminous Flux60000lm±5%75000lm±5%90000lm±5%120000lm±5%150000lm±5%180000lm±5%225000Im5%270000lm5%
    CRIRa>80
    CCT3000-6500K
    Beam Angle10/25/45/60/90 Asymmetrical 60°
    Driver BrandMW/SOSEN
    THD<10%
    lK RatingIK08
    RatingIP66
    Life Span50000Hrs
    Size718*214*222mm718*214*222mm718*214.222mm732*439*290mm732.439*290mm732*439*290mm732*666*290mm732*666*290mm
    N.W19.15kg19.65kg20.05kg32.00kg33.0Okg34.0Okg46.00kg47.30kg
    G.W21.55kg22.05kg22.5skg35.30kg36.30kg37.30kg49.70kg51.0




    World class level chips, high brightness, low light decay & long life-time

    International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)

    Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay.

    Optical UV resistant PC lens with 94% light transmitance, IK08. Light Distribution: 10°/15°/25°/45°/60°/90°/Asymmetrical 60°

    Bracket Installation, operation temperature: -35C- +50C








    Vertical Horizontal Suspended

    Spill Shield

    Roads and highways / Parking lots / Sports stadiums / Railroad yards / Shipyards / Warehouses / Truck stops and rest areas /Outdoor parks and recreation areas / Playgrounds / Storage facilitiesAny Outdoor place,Etc

    FAQ:

    Q1: Are you a manufacturer?
    MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

    Q2: Can I order a sample of the LED High Mast Light?
    MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

    Q3: What is the lead time for the LED High Mast Light?
    MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

    Q4: How do you ship the finished products?
    MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

    Q5: Can I print my logo on the LED High Mast Light?
    MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

    Q6: How do I proceed with an order for the LED High Mast Light?
    MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

    Q7: How do you handle defective products?
    MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
