    60W 100W 200W Atex LED Explosion Proof Light With IP66 IK10 For Oil Chemical And Marine Gas Industry

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF-Security man3
    Certification : CCC/CE/ROHS/SAA/CB/ATEX/EX/TUV
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    60W 100W 200W Atex LED Explosion Proof Light With IP66 IK10 For Oil Chemical And Marine Gas Industry

    30W-200W Atex LED Explosion Proof Light With EX IP66 IK10 For Oil Chemical And Marine Gas Industry



    • Working Temperature: -40°C ~ +60°C.
    •High quality SMT LED.
    •Heavy-duty and high impact resistance.
    •Replaceable LED board and drivers.
    •Integrated junction box for driver .
    •Dimmable and battery back up function available.
    •Marine rating powder coated finish treatment.
    •Up to 5 years warranty .
    •Various installation ways for different applications.
    •Glass lens or polycarbonate lens to make different beam angles.


    Marking ATEX
    1.II 2 G Ex eb mb IIC T6...T4 Gb
    2.II 2 D Ex tb IIIC T80°C...T100°C Db IP66
    Marking IECEx
    1.Ex eb mb IIC T6...T4 Gb
    2.Ex tb IIIC T80°C...T100°C Db IP66
    Marking UL844 (North American)
    Class I, Division 2, Groups A, B, C, D
    Class II, Division 1, Groups E, F, G
    Class II, Division 2, Groups F, G
    Class III
    Marine Marking
    UL1598, UL1598A
    ABS
    Other Rating
    IP 66
    MATERIALS
    •Housing: Copper-free aluminum
    •Lens: Tempered glass
    •Hardware: Stainless steel
    •Mounting Bracket: Stainless steel




    Product NumberWattageColorTemperatureVoltageLumensWarrantyCRIEmergency Time
    Ex-30WF3YZDA
    Ex-50WF3YZDA
    30w
    50w
    2200K-7000KAC200-250V/DC12-48V4200
    6000
    5 Years703 Hours
    Ex-60WF3YZDA
    Ex-80WF3YZDA
    60w
    80w
    2200K-7000KAC200-25OVDC12-
    48V
    8400
    11200
    5 Years703 Hours
    EX-10OW F3YZDA
    Ex-120W F3YZDA
    Ex-15OW F3YZDA
    EX-20OWF3YZDA
    100W
    120W
    150W
    200W
    2200K-7000K36
    AC200-250V/Dc
    -48V
    14000
    16800
    21000
    28000
    5 Years703 Hours

    ​​

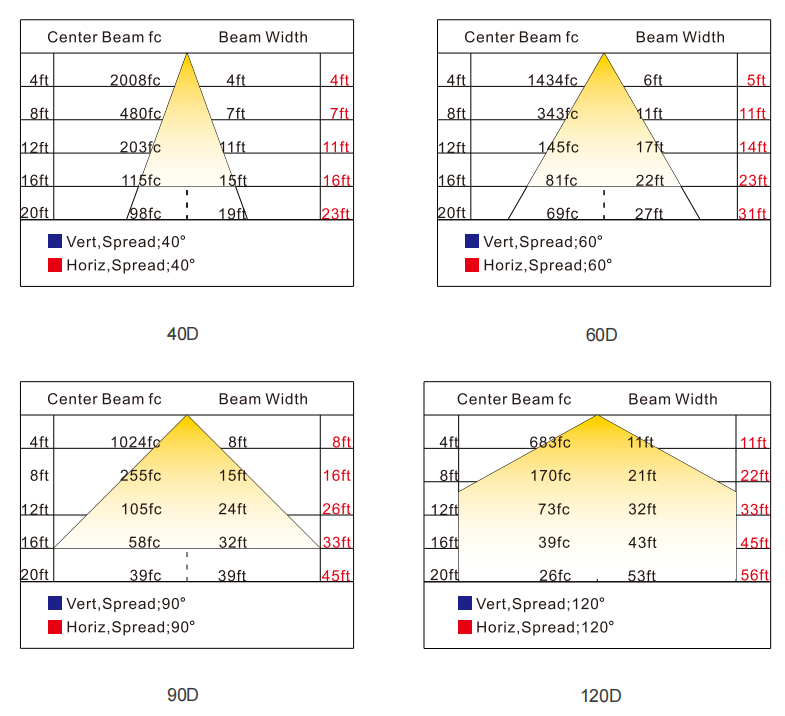

    Light Distribution:



    Installation:


    LED explosion-proof lights are commonly used in hazardous environments such as mines, oil rigs, and chemical plants to provide safe and reliable illumination. They are also suitable for outdoor environments where they can withstand harsh weather conditions and improve visibility for safety and security purposes.

    Oil and Gas industry
    • All petroleum production and refining
    • Petroleum loading and transportation
    • Petroleum storage and retail
    • LNG industry
    • All mining operations and service
    Chemical industry
    • All types of paint facilities
    • Chemical production and storage
    Metal treatment
    • Steel and aluminum factories
    • Pumping stations in any environment
    • Metal smelting, foundry and fabrication
    Ocean, marine and aerospace field
    • Ocean platform operation
    facilities and structure
    • Aerospace clean room and production
    • Ocean vessel operations
    Food and alcohol industry
    • Flour and fine particle production
    and storage
    • Food and distilling production
    • Alcohol industry
    Other high humidity, high dust,
    high temperature, vapor locations


    Accessory and Production:


    ModelQuantity/CartonLength(cm)Width(cm)Height(cm) Net weight(kg)Gross weight(kg)
    F3148cm46cm26.5cm8.2kg10.5kg
    F4153cm53cm30cm18.8kg21.5kg
