IP66 IK08 CCT Dimmable LED Street light Waterproof 19500lm Luminous

Features:

 Streamlined design makes the drag coefficient smaller, more beautiful and safer; meets the
aesthetic requirements of high-end street lamps.
 Die-casted with ADC-12 aluminum, the thickness of the shell is 3mm, which is more conducive
to heat conduction and divergence.
 A smooth body will greatly reduce dust accumulation and minimize the environmental impact on
the performance and life of the luminaire.
 Unique arc design and smooth surface is good for heat dissipation, automatic eliminating all dust
when rain.
 Designed to fulfil the Future Proof concept. The photometric engine is IP 66 sealed to protect the
LEDs and lenses from coming into contact with the outside environment and so maintain
photometric performance over time.
 The surface is made of 4mm thick tempered glass, which can pass the IK08 anti-attack test and
meet the requirements of high-end street,
 Two optical angles (Type-II, Type-III), can be used for all main road.
 Unique structural design, can achieve maintenance when power on.
 the surge protection can reach 10KV/20KV.
 100,000 times switching cycle before failure
 Total harmonic distortion (THD)<15%


Specifications:

Competitive Advantage:

1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.

4. Beam Angle: Type-II,Type-III

5. Functions: Dimmable, Photocell available.

6. Warranty: Five years

7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.

8. Body color : Grey

CCT Range WW(3000K) NW(4000K) DW(5000K) CW(6500K)
Beam Angle Type-II,Type-III

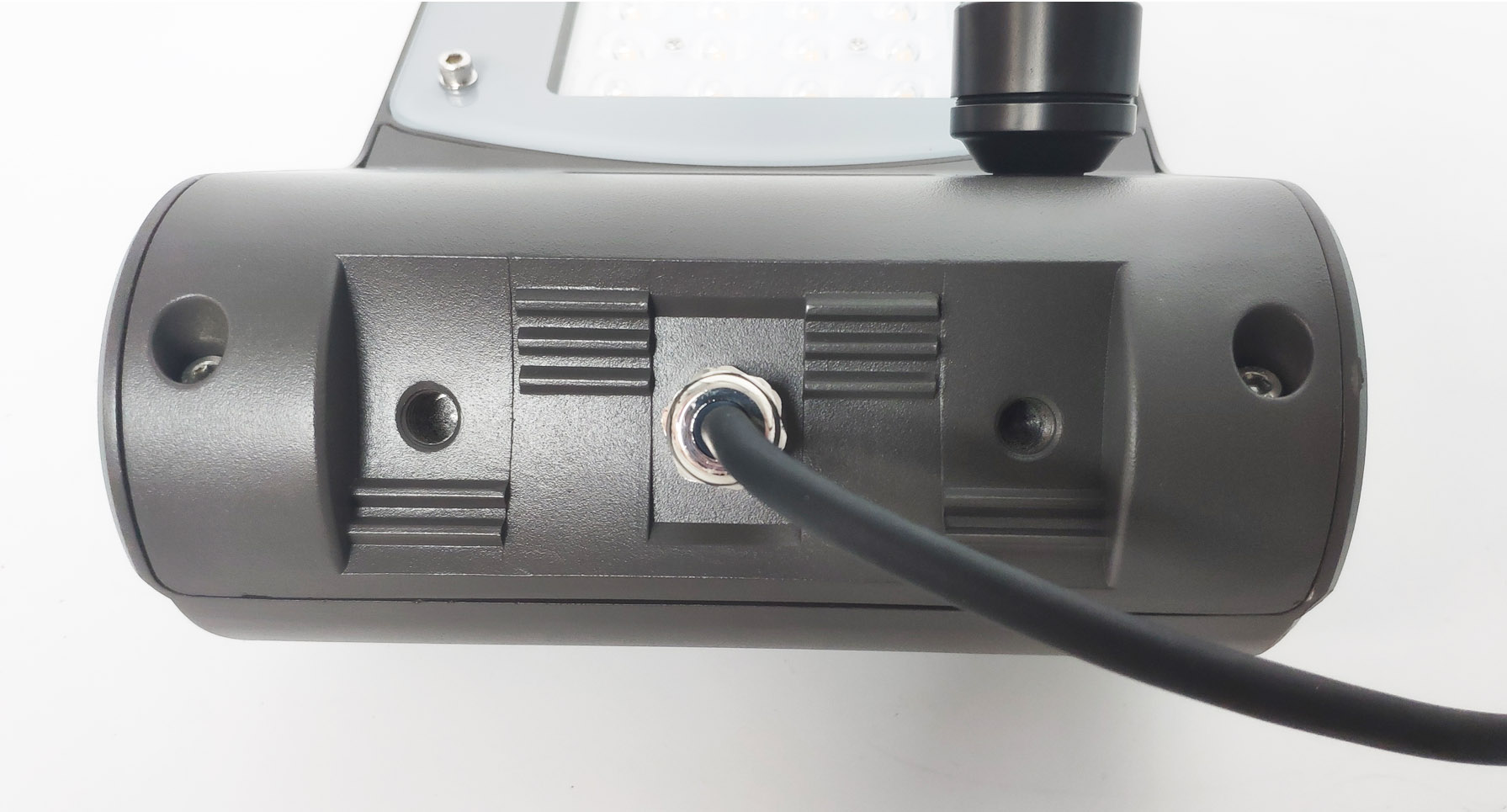

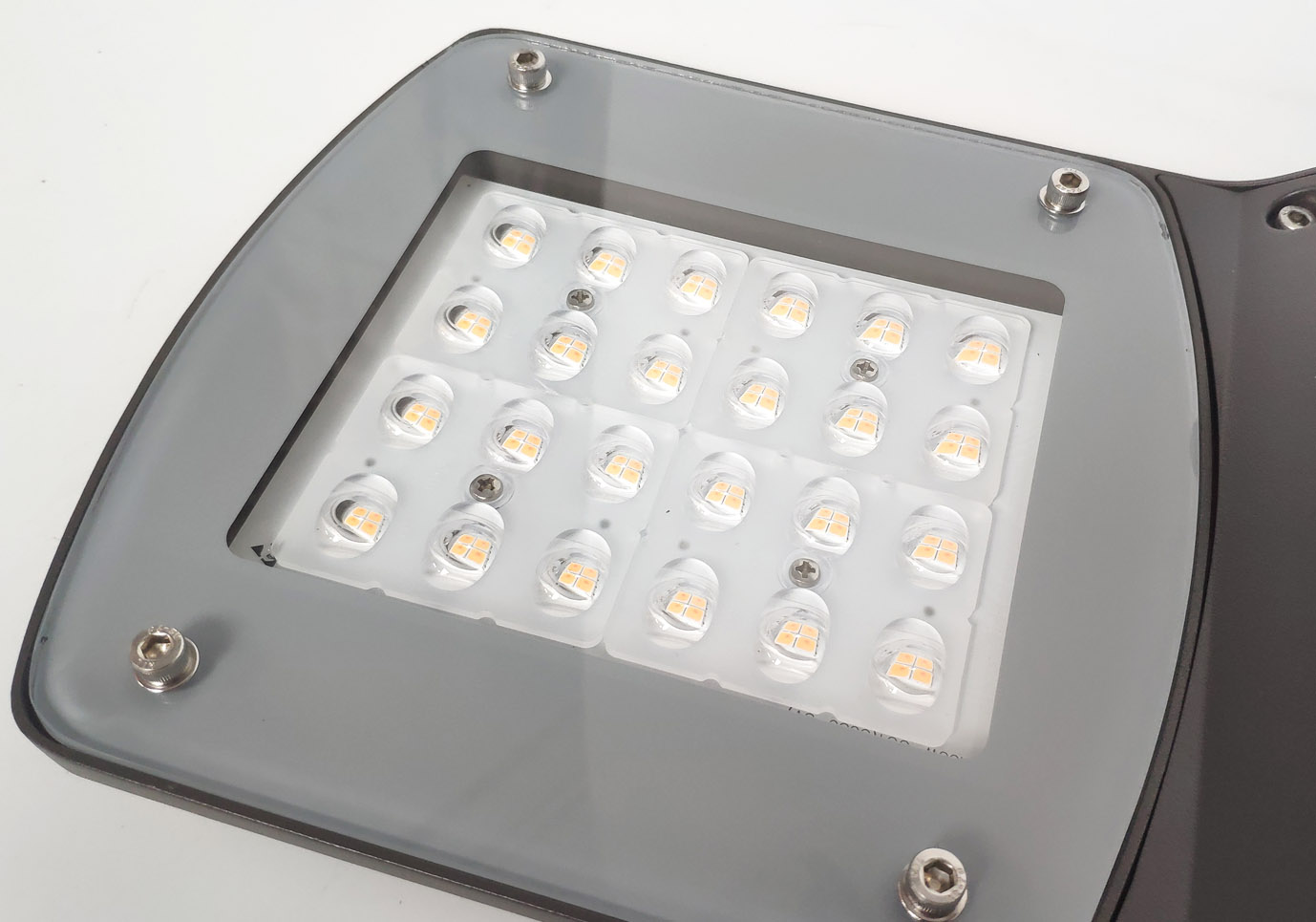

Product shows:

Package:


Application:
Highway, National road, Country road,Bicycle lanes, Sidewalks, Courtyard, High-speed rail, Standard rail...etc.
