IP66 Die-cast Alu 150lm/w LED Street Light Waterproof Dimming Roadway LED Lighting

Features:
1. Excellent Heat Dissipation
2. Stylish and Classic Appearance Design
3. Multiple Beam Angles Available
4. Convenient Maintenance of Driver
5. Multiple Installation Methods
6. Tool-Free Maintenance Easy Open
7. Epoxy-Polyester Anti-corrosion Coating

Ming Feng Lighting has been committed to the research of high-quality optical light distribution. Aiming at road lighting, we have developed seven lens products with different road widths and suitable occasions, and developed four projection lamp lighting lens products and one tunnel lamp lighting lens product to meet the different lighting needs of customers.

Specifications:

Competitive Advantage:

1. Light Source: We are use Lumileds 3030/Lumileds 5050 options, efficiency acheives 130lm/w,150lm/w.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP66.
4. Beam Angle: 143*50°/156*68°/150*150°/150*75°
5. Functions: Dimmable, Photocell available.
6. Warranty: 5 years/10 years conditionally
7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.
8. Body color : Gray
CCT Range WW(3000K) NW(4000K) DW(5000K) CW(6500K)
Beam Angle: S serise, P serise, U serise

S serise : Match for 3030 chips

P serise : Match for 5050 chips

U serise : Match for 5050 chips

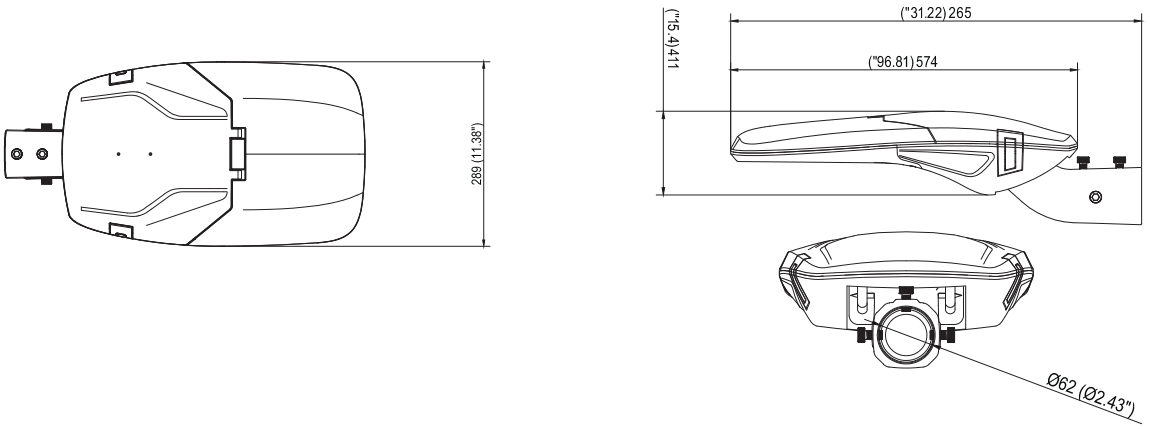

Product Drawing:

Small size: 40W - 90W


Large size: 100W - 180W

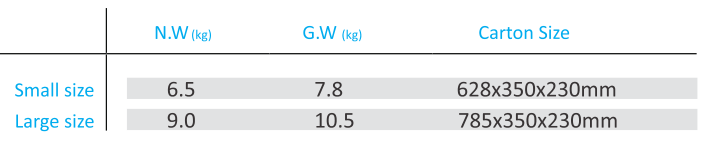

Package:

Application:
Highway, National road, Country road,Bicycle lanes, Sidewalks, Courtyard, High-speed rail, Standard rail...etc.
