IP67 Adjustable Color Temperature 30W 50W 70W Three In One LED Garden Light
Features:
1. Air cooling design
2. IP67 rated enclosure
3. Post top or pendeant mounting
4. Superior Low-glare illumination
5. Optional with photo cell
6. Optional black, white or bronze color
The area series has the high-performance solution for the most demanding applications within a unique design. With different precision refractive optical lens and an easy-install design,it can be used in many applications such as pedestrian street, factory, schools, garden, courtyard,hotel,parking lot,public parks etc.

Specifications:

Adjustable power,Adjustable color temperature controller instructions (manual operation)

*Pull out the controller cover firmly upwards. See picture 1
*Adjust the power in zone A and adjust the color temperature in zone B. The factory default power is 75W and the color temperature is 5000K. See picture 2.

Instructions for adjusting the power (zone A):
1. Adjust to 50W: pull A1 to ON, A2 to OFF, see picture 3.

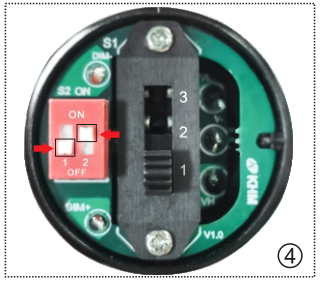

2. Adjust to 30W: Pull A1 to OFF. Pull A2 to ON. See picture 4.
Instructions for adjusting the color temperature (zone B):
3 gears adjustment: B3=3000K, B2=4000K, B1=5000K.
The factory default is 5000K (B1). When adjusting the color temperature, just pull the button to the corresponding position.
How to use photocell sensor:
* Open the photocell sensor function: remove the photocell sensor cover.
* Close the photocell sensor: close the photocell sensor cover.


Beam Angle:

Fixture assembly:
* Feed the (3) Housing wires through one of the three Rods.
* Clip the (3) Rods onto the Housing. Be sure the Housing clips are properly engaged onto the Rods.
* Feed Fixture Wires through the Tenon Pole Adaptor.
* Slide Tenon Pole Adaptor on three Rods. Be sure the notches face the inside of theTenon Pole Adaptor.
* Tighten the (3) Set Screws at the Tenon Pole Adaptor to secure Rods.

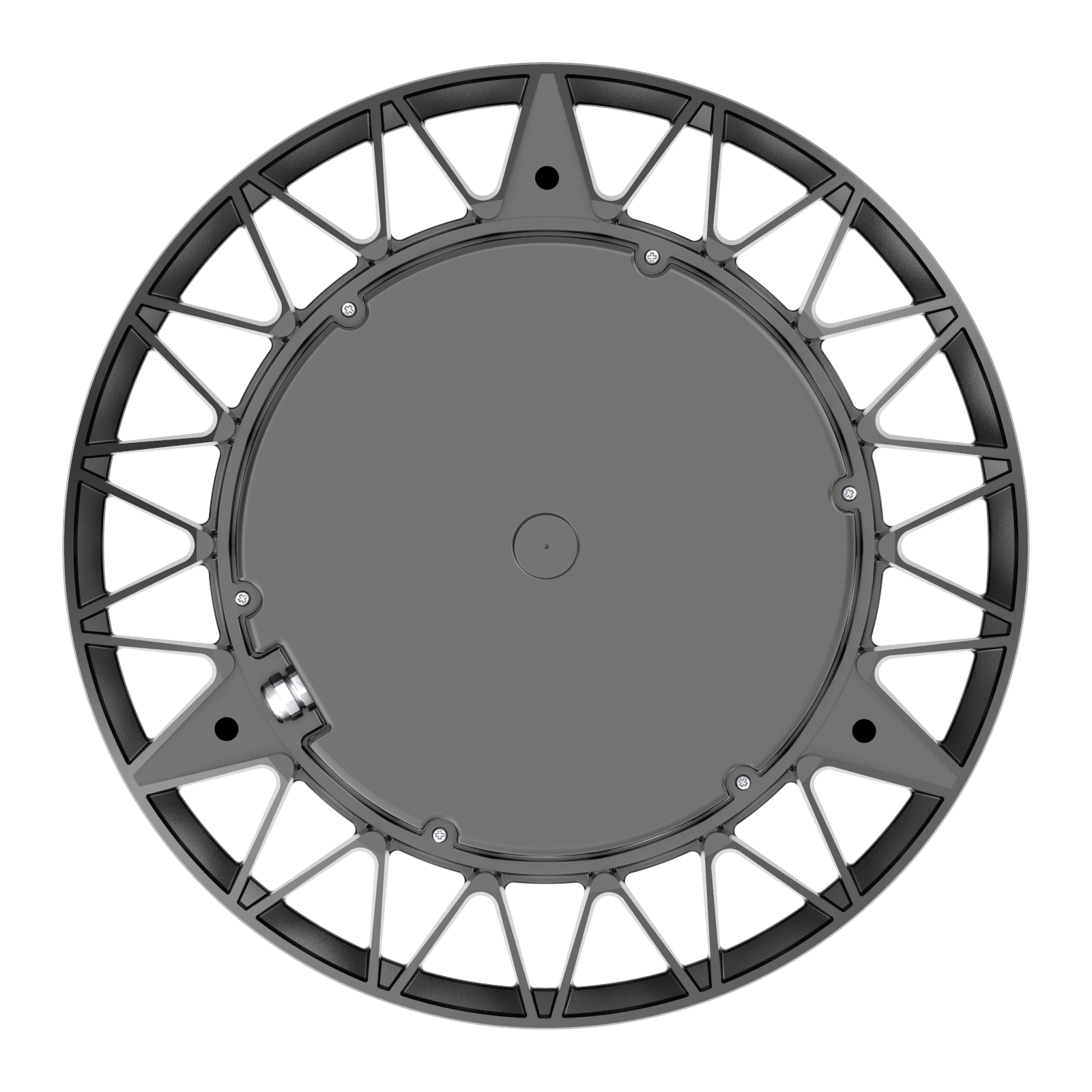

Product Details:


Product Drawing:


Application:
Courtyard lighting, public parks lighting, street scapes lighting, parking areas lighting,hotel lighting...etc.
