Linear LED High Bay Lighting Warehouse Fixtures

Product Benefit :

LED chip :

170lm/w for whole lamp

3000-6500K available

Power Supply:

Meanwell driver

Input voltage : AC90-305V / AC180-528V

Power factor :0.95PF

0-10V,Dali, PMW signal,timing dimmable functions.

Meanwell LED driver

Meanwell driver is created for high bay, tunnel and roudway lights. The high efficiency and compact metal case enables them to run

Cooler,significantly improving reliability and extending protection is provided against input surge, output over voltage , short circuit,

and over temperature.

Description:

MF K2 Linear High bay light adopt advanced constant current controlling techniques;Wide voltage range and high voltage 347V 480V

available, global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation

and tiredness taking from long-time working.
High quality aviation aluminum heatsink , and a nodic oxidation treatment, giving high output and long term reliable performance.Together
with high efficiency mid-power LED light source and high performance driver.

We make different wattage including 100W, 150W, 200W, 250W, 300W, 360W, 400W, 500W, Waterproof IP65, input voltages are AC 200-277V , AC 90-305V, AC 180-528V for your choice. Power factor is over 0.95, beam angle 60°,90°, 120°, can work under -40℃ to -55℃ .

This product values each dollar investment in the industrial lighting areas.

Specifications:

170lm/w LED High Bay Light

Technical Support : Intelligent Lighting

Option 1 : Zigbee Wireless Control System

Function :

1. APP remote control

2. Dimmable , 0-100% dimming

3. Timming Dimmable , control the lights at different brightness level in different time.

4. Grouping and Partition Control

Option 2 : Microwave Sensor + Dimming

Function:

3-step dimming

When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming function, 100%--->low light

--->off. And the sensors build in adjustable daylight sensors,very easy toinstall and cost-effective.

• Picture 1 : With sufficient ambient light, the sensor does not switch on the lamp.
• Picture 2 : With insufficient ambient lights, the sensor switchs on the lamp when motion is detected.
• Picture 3 : After hold time, the sensor dims the lamp at a low light level if no new motion trigger.
• Picture 4 : After stand-by period, the sensor switchs off the lamp if no motion is detected in its detection zone.

Option 3 : Daylight Sensor + Dimming

Function:

1. Daylight Harvesting Function

2. Daylight sensor (MSO1)+ 1-10V dimmable ballast or LED driver (Any brand)

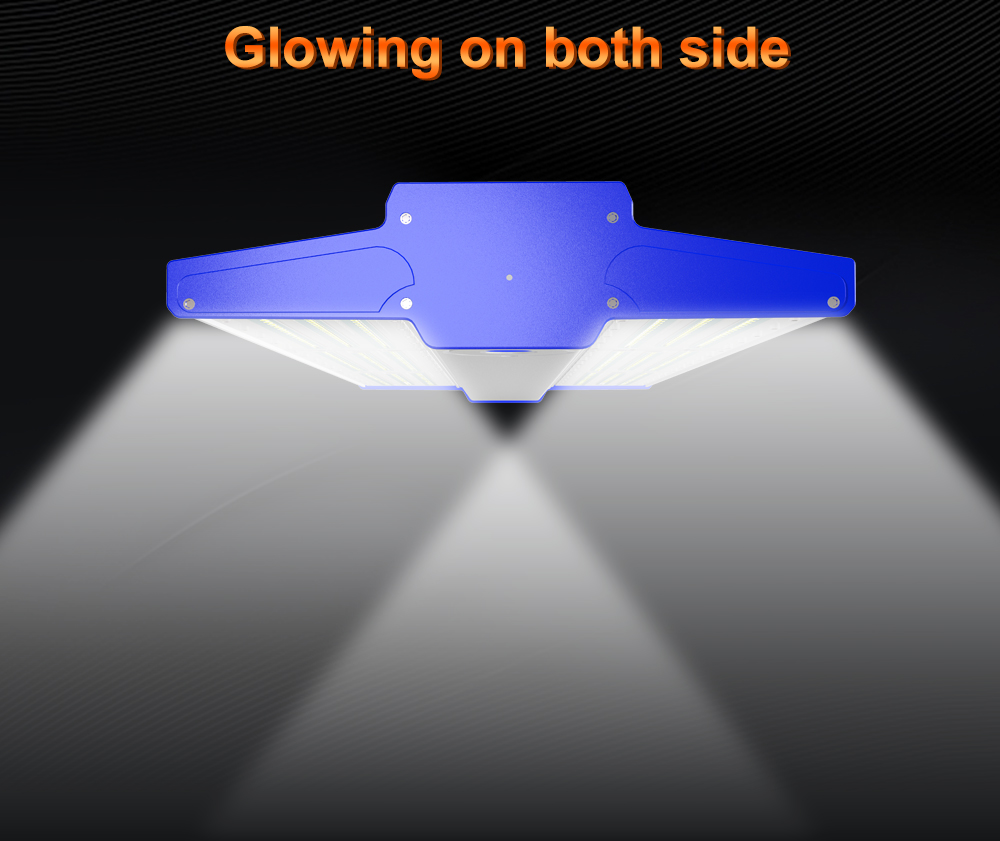

170lm/w LED High Bay Light Photo show :

Accessories Option :

A variety of installation options :

Application :

Widely used in Factory , Workshop , Warehouse, Logistics Center Exhibition Hall, Gymna-sium, Shipyards,Mining, Gas Station, Supermarkets,etc.
