230W Waterproof LED Flood Light For Security
Main Feature :
1. Different beam angle 110°,25°,60°, 90°,130°x60° Asymmetric.
2. Meanwell ELG drivers.
3. Die-casting Aluminum housing with AkzoNobel powder coating.
4. Long lifetime over 50,000hrs,extremely low maintenance cost.
5. CRI>80 , CRI>70 optional.
6. Osram/Lumileds 3030/5050, LEDs up to 155lm/watt@80Ra.
7. Dali, 1-10V, PWM Dimmable available.
8. 5 years warranty.
Specification :
MF-L230W
Floodlight Tehnical Data sheet.pdf
| Model: | MFL230W-110 | MFL230W-25 | MFL230W-60 | MFL230W-90 | MFL230W-130X60 |
| Light Source: | Osram/Lumileds 3030 2D | Osram/Lumileds 5050 | Osram/Lumileds 5050 | Osram/Lumileds 5050 | Osram/Lumileds 5050 |
| Luminous flux: | 28000LM | 25800lm | 26500lm | 26900lm | 29900lm |
| Beam Angle: | 110° | 25° | 60° | 90° | 130°x60° |
| Optical Cover: | Clear/Foggy Glass | PC lens | PC lens | PC lens | PC lens |
| Input Voltage : | 100-240VAC 50/60Hz | IP Class : | IP65 |
| LED power : | 203W | Housing: | Die-casting Aluminum |
| System Power: | 230W | Working Temperature : | -20℃ to +50℃ |
| Power Factor: | >0.95 | Working Humidity : | 10% - 90% |
| System Efficiency: | 115lm/w to 130lm/w | Power cable: | 3x1.5mm2H07RN-F |
| Color Temperature : | 3000K/4000K/5700K | Net weight: | 6.7KG(glass) | 6.4kg(PC) |
| CRI: | >80(3030 LEDs) >70(5050 LEDs) | Dimension of Outer Carton: | 68cm x 40cm x 21 cm (1pcs/carton) |
Advantage :
1. Wide beam angles including 110°,25°,60°, 90°,130°x60°
Asymmetric. If you want others, we can customize it.
2. IP65 Meanwell ELG drivers: TaiWan MeanWell LED Drivers, wide
AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers,
make the lamp safer for operation, it can reach IP65. Waterproof.
Drivers are available.
Waterproof Connectors
3. Die-casting Aluminum housing with AkzoNobel powder coating.
4. Module angle adjustable to project aimed lighting area
accurately. U shape bracket with angle adjutable of 0°~180°,Each
modular can be angle adjustable as well, which can enable the lamp
projects to the illumination needed area.
5. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
6. 5 years warranty. Life-span is 50000 hours to 100000 hours.

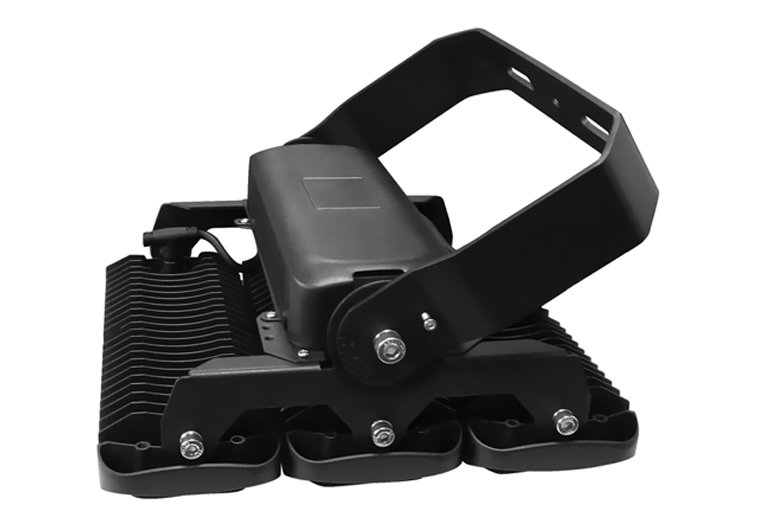

Product Images :
Dimension :
Luminous Intensity Distribution Diagram :
Applications :
Suitable for sport field,warehouse,gymnasium,workshop,Gas
stations,Toll stations, parking area, etc.
